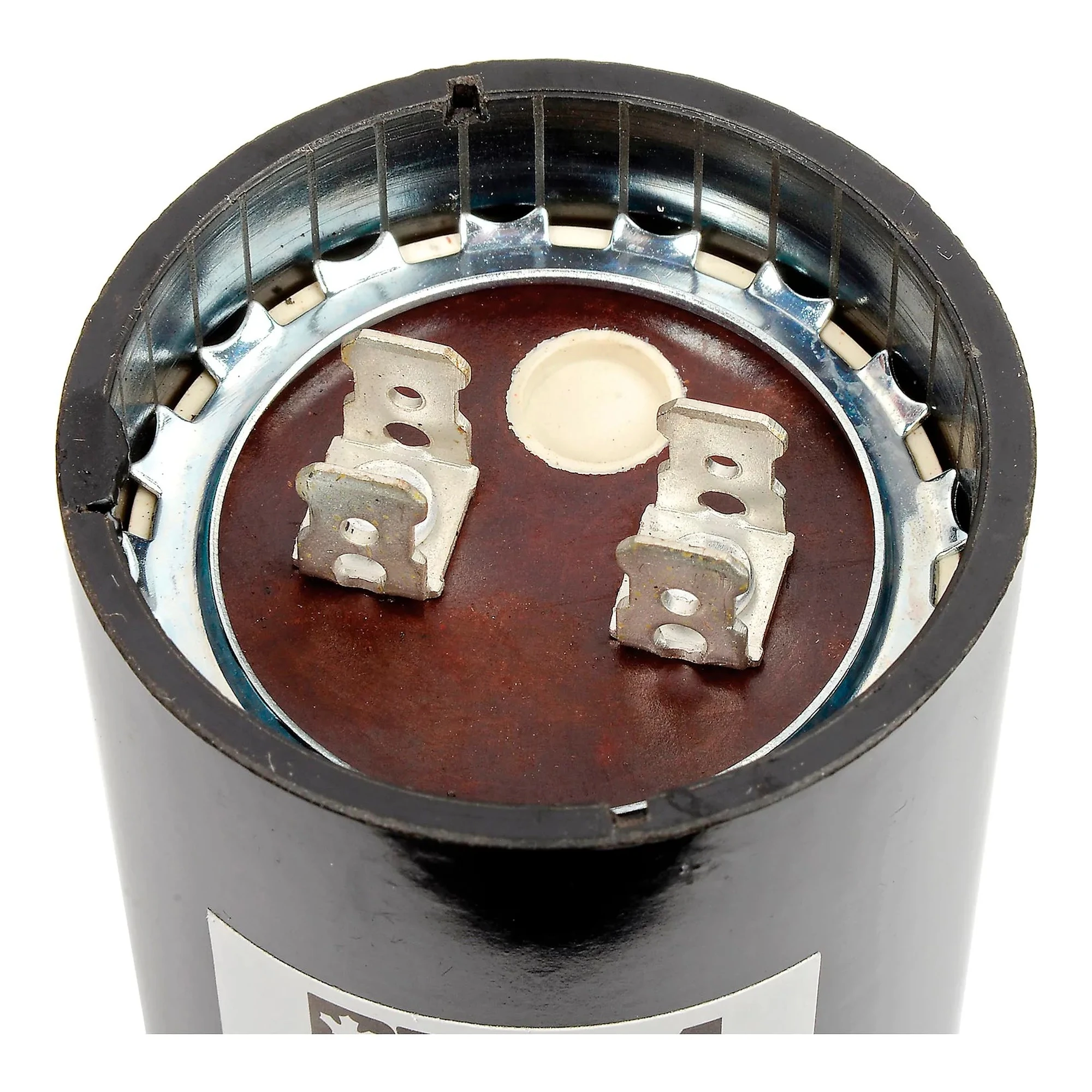

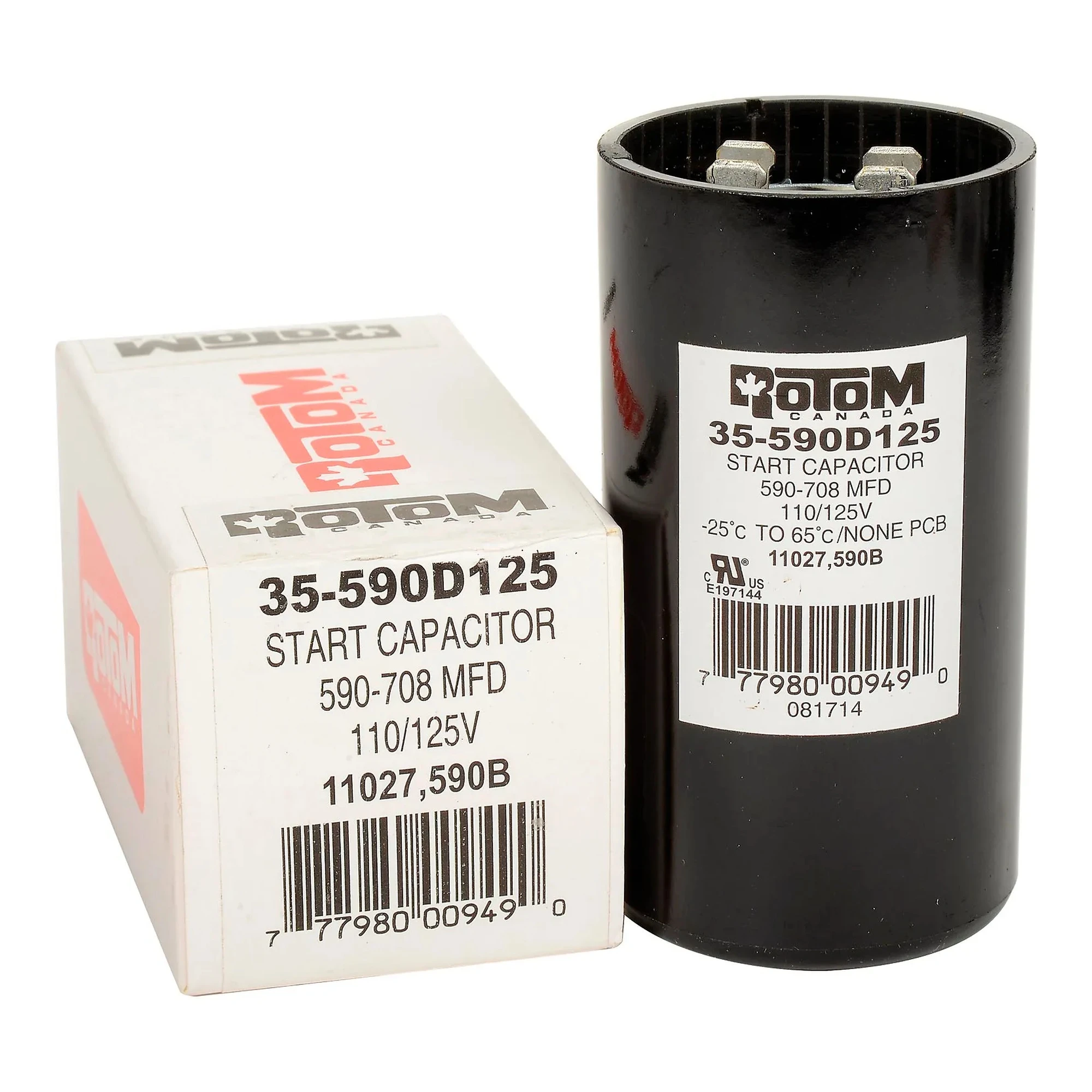

Round Motor Start Capacitor, 590-708 MFD, 110/125V

This round motor start capacitor is for technicians and maintenance professionals servicing AC motor starting circuits. It provides intermittent-duty starting support for compatible motors.

This dry electrolytic, non-polarized capacitor is rated at 590-708 MFD and 110/125V for 50/60 Hz operation. It has a round moisture- and oil-resistant molded phenolic resin or plastic case, standard dual-blade terminals, a 3-second start rating, and a maximum of 20 starts per hour. The unit measures 2 inches wide by 2 inches deep by 3.5 inches high.

Key Features:

• Intermittent-duty design: Supports AC motor starting circuits during short starting cycles.
• Dual-blade terminals: Provides a standard terminal connection format.
• Round resistant case: Helps protect the capacitor from moisture and oil exposure.
• 3-second start rating: Matches applications requiring brief motor-start operation.
• 590-708 MFD, 110/125V: Helps buyers select the specified capacitance and voltage range for compatible equipment.

Choose this capacitor for compatible AC motor starting circuits that require a 590-708 MFD, 110/125V round start capacitor with dual-blade terminals.
