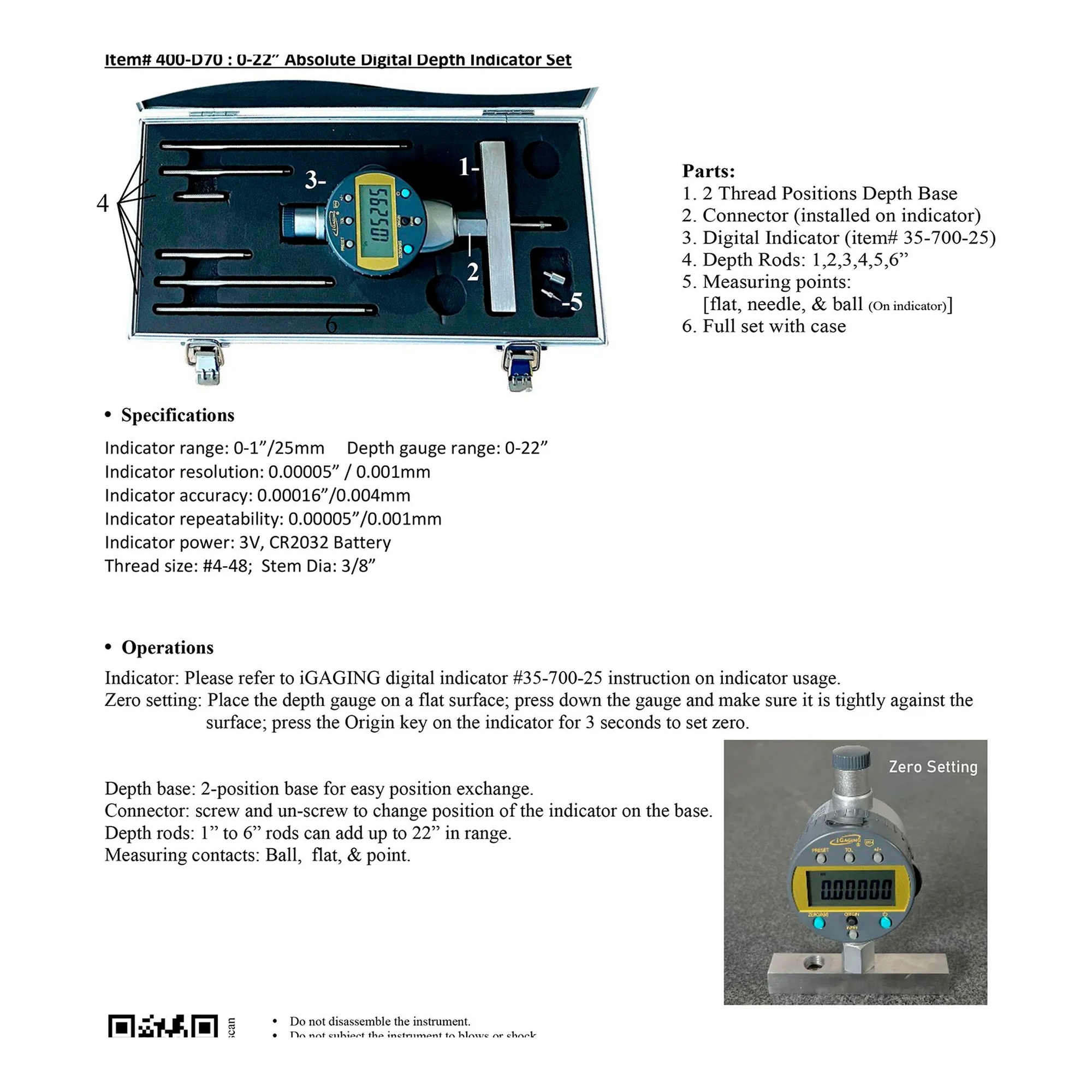

IP54 Digital Depth Gauge, 0 to 22 Inch Range

This digital depth gauge is designed for measurement professionals who need to check depths across a 0 to 22 inch range. It provides electronic readings for depth-measurement tasks and supports both inch and metric units.

The gauge has an IP54 protective rating for moisture and dust resistance, absolute encoding technology, and a ceramic contact point. It delivers 0.00005 inch/0.001 mm resolution, 0.00016 inch/0.004 mm accuracy, and 0.00005 inch/0.001 mm repeatability. Additional functions include absolute-origin memory, zero setting, preset and tolerance functions, a 330-degree rotating LCD display, and SPC/USB data output. An aluminum case and a 3V CR2032 battery are included.

Key Features:

• IP54 Protection: Helps resist moisture and dust in measurement environments.
• 0 to 22 Inch Range: Supports depth measurements across a broad working range.
• Fine Resolution: Provides readings in increments of 0.00005 inch or 0.001 mm.
• Absolute Encoding: Memorizes the absolute origin for consistent reference-point setup.
• Rotating LCD Display: Allows the display to be positioned up to 330 degrees for easier viewing.
• SPC/USB Output: Provides a data-output connection for compatible measurement data workflows.

Choose this digital depth gauge for detailed depth measurement with inch/metric conversion, electronic display functions, and IP54 moisture and dust resistance.
