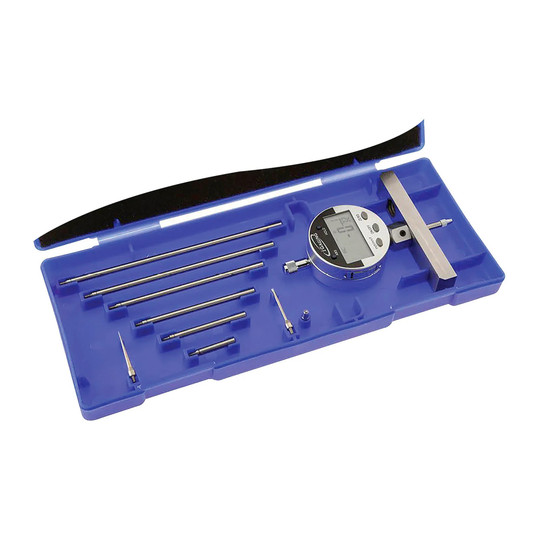

Digital Depth Gauge with 4-Inch Base and Extensions

This digital depth gauge helps inspectors, machinists, and maintenance professionals measure the depth of holes, recesses, slots, and similar features. Its extension system supports depth measurements across a broad range of applications.

The digital indicator has a 0–1 inch (25 mm) range, while the included extensions provide a total measuring range of 0–22 inches (550 mm). It has a 4-inch base with two threaded indicator mounting positions, a 3/8-inch stem diameter, and a #4-48 thread size. Included components are 1-, 2-, 3-, 4-, 5-, and 6-inch extensions, plus ball-point and spindle tips measuring 1.26 inches. A CR2032 battery and fitted protective case are included.

Key Features:

• Extended measuring range: Measures depths from 0 to 22 inches with the included extensions.
• Digital indicator: Supports clear depth readings across its 0–1 inch measurement range.
• 4-inch base: Provides a stable reference surface during depth measurements.
• Two mounting positions: Allows the indicator to be mounted in either of two threaded base locations.
• Interchangeable extensions: Lets users adapt the gauge for different measurement depths.
• Protective fitted case: Keeps the gauge and included components organized between uses.

Choose this depth gauge when you need a digital measurement tool with a 4-inch base, interchangeable extensions, and included tips for measuring depths up to 22 inches.
