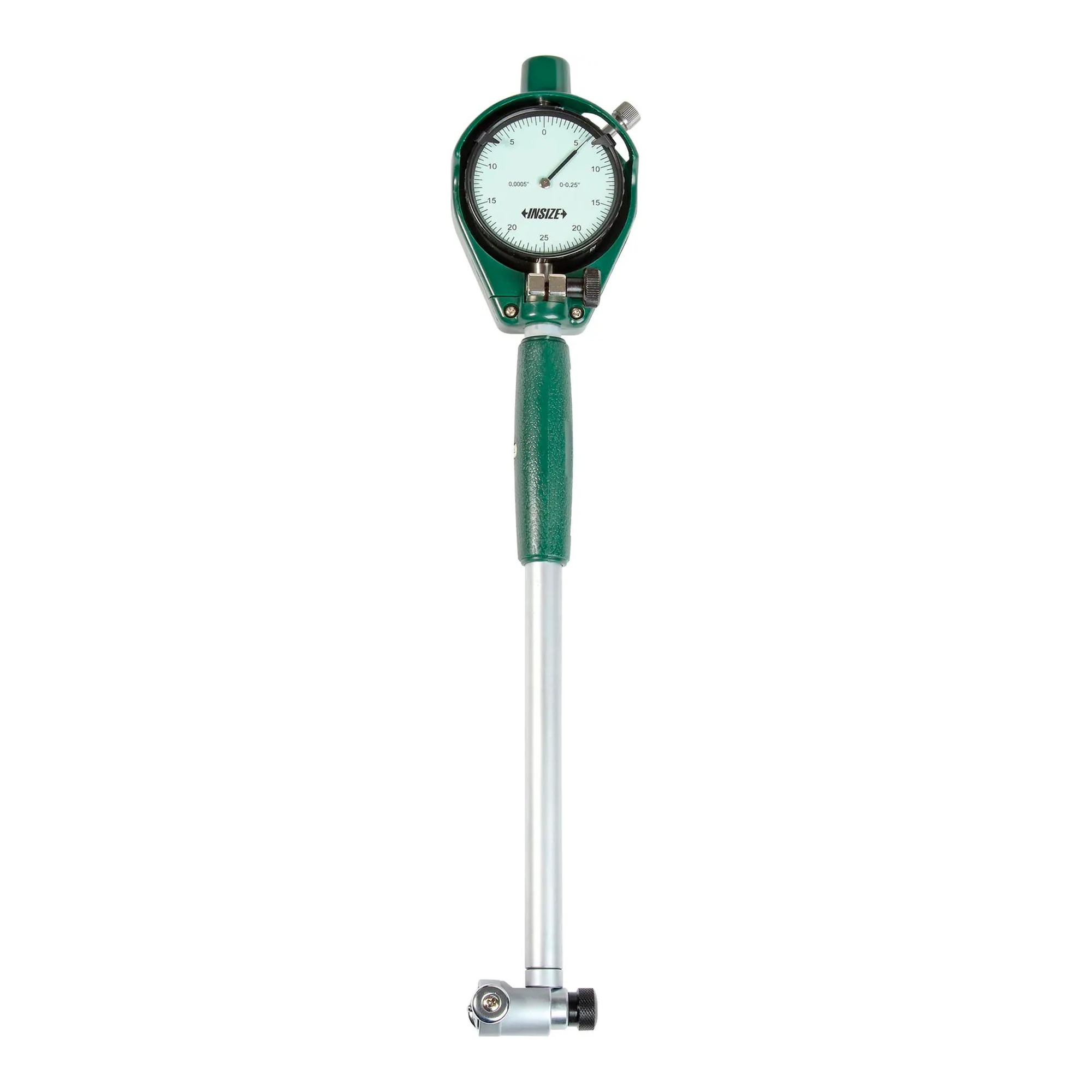

Bore dial gage with 2–6 inch measuring range and fitted storage case

Bore Dial Gage, 2–6 in. Range

SKU:
WBB925187
Brand:
InSize
Model/MPN:
2323-6
Our Price:
$259.94
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Color/Finish: White
Country of Origin: CN
Product Depth: 6.299
Product Height: 2.362
Product Type: Inside Diameter Measuring
Product Width: 17.323
Quantity Included: 1
Manufacturer Part Number: 2323-6
Color: White
Dimension A: 1.024"
Dimension B: .354"
Dimension C: 1.378 in
Dimension D: .512" DIA
Dimension E: .504" DIA
Dimension F: .079" R
Dimension L: 5.906"
Gage Depth: 5.551 in
Min Measurement: 2 in
Range: 0-.25"
Resolution/Graduation: 0.0005 in
Accuracy: (+/-).0009"
Anvil Material: Ceramic
Case: Yes
Dial Face Color Family: White
Digital: No
IP Rating: None
Indicator Included: Yes
Indicator Type: Dial Indicator: Range .25", Graduation.0005"
Manufacturers Part Number: 2323-6
Material: Steel
Mechanical Or Digital: Mechanical

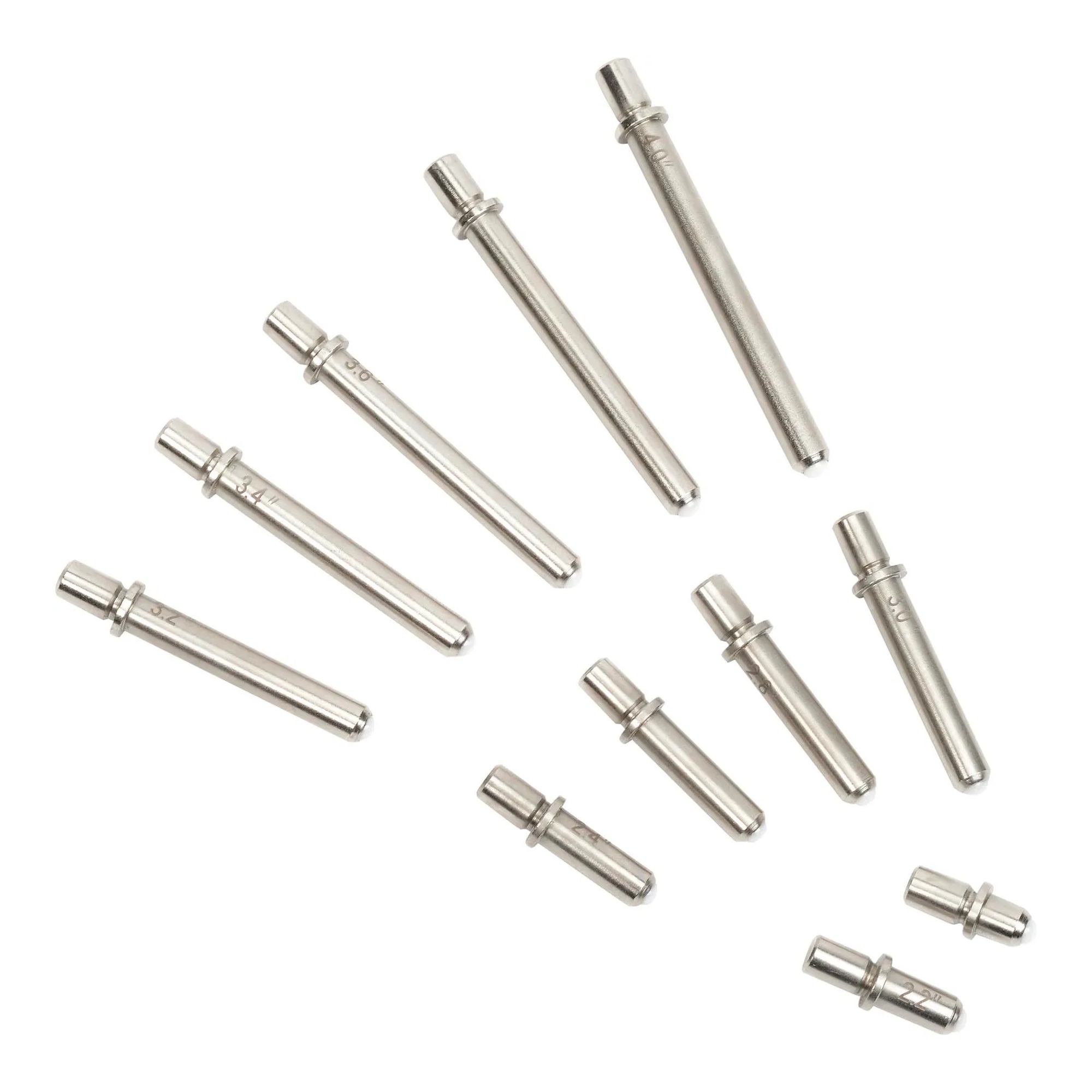

Number of Anvils/Rods Included: 11
Repeatability: .00025" g
Type: Micrometer
Long Form Calibration Certificate Included: No
Shipping Method: Parcel
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Color/Finish: White
Country of Origin: CN
Product Depth: 6.299
Product Height: 2.362
Product Type: Inside Diameter Measuring
Product Width: 17.323
Quantity Included: 1
Manufacturer Part Number: 2323-6
Color: White
Dimension A: 1.024"
Dimension B: .354"
Dimension C: 1.378 in
Dimension D: .512" DIA
Dimension E: .504" DIA
Dimension F: .079" R
Dimension L: 5.906"
Gage Depth: 5.551 in
Min Measurement: 2 in
Range: 0-.25"
Resolution/Graduation: 0.0005 in
Accuracy: (+/-).0009"
Anvil Material: Ceramic
Case: Yes
Dial Face Color Family: White
Digital: No
IP Rating: None
Indicator Included: Yes
Indicator Type: Dial Indicator: Range .25", Graduation.0005"
Manufacturers Part Number: 2323-6
Material: Steel
Mechanical Or Digital: Mechanical
Number of Anvils/Rods Included: 11
Repeatability: .00025" g
Type: Micrometer
Long Form Calibration Certificate Included: No
Shipping Method: Parcel

This bore dial gage helps machinists, inspectors, and maintenance professionals measure inside diameters from 2 to 6 inches. It is suited for checking bore sizes during inspection and measurement tasks.

The gage has a 2–6 inch measuring range and is supplied with a fitted storage case. The listed color/finish is white.

Key Features:

  • 2–6 in. measuring range: Supports inside-diameter measurement across a broad range of bore sizes.
  • Dial gage design: Provides a dedicated tool format for bore measurement and inspection work.
  • Fitted storage case: Helps keep the gage organized and protected between uses.
  • White finish: Matches the listed product finish.

Choose this bore dial gage when your measurement work requires coverage from 2 to 6 inches and convenient case storage.

Color/Finish: White
Country of Origin: CN
Product Depth: 6.299
Product Height: 2.362
Product Type: Inside Diameter Measuring
Product Width: 17.323
Quantity Included: 1
Manufacturer Part Number: 2323-6
Color: White
Dimension A: 1.024"
Dimension B: .354"
Dimension C: 1.378 in
Dimension D: .512" DIA
Dimension E: .504" DIA
Dimension F: .079" R
Dimension L: 5.906"
Gage Depth: 5.551 in
Min Measurement: 2 in
Range: 0-.25"
Resolution/Graduation: 0.0005 in
Accuracy: (+/-).0009"
Anvil Material: Ceramic
Case: Yes
Dial Face Color Family: White
Digital: No
IP Rating: None
Indicator Included: Yes
Indicator Type: Dial Indicator: Range .25", Graduation.0005"
Manufacturers Part Number: 2323-6
Material: Steel
Mechanical Or Digital: Mechanical
Number of Anvils/Rods Included: 11
Repeatability: .00025" g
Type: Micrometer
Long Form Calibration Certificate Included: No
Shipping Method: Parcel
Width: 6.30 in
Height: 2.36 in
Depth: 17.32 in
!
