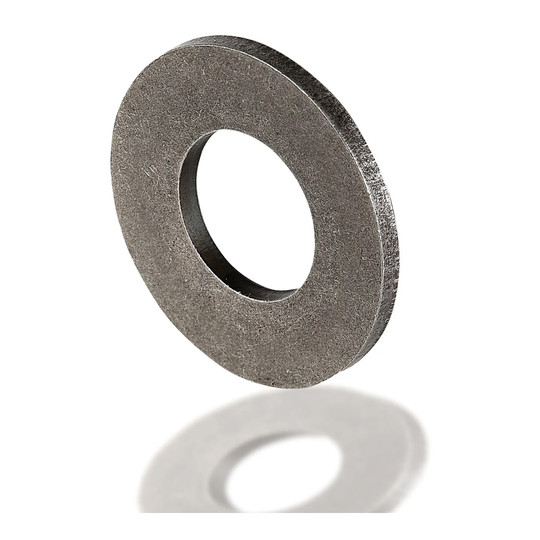

302 stainless steel Belleville disc spring

302 Stainless Steel Belleville Disc Springs, 1/4 in. OD, 12-Pack

SKU:
WBB2170020
Our Price:
$9.09
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: Made in USA
Material: 302 Stainless Steel
Product Depth: 2.5"
Product Height: 0.1"
Product Type: Belleville Springs
Product Width: 3.5"
Quantity Included: 1
Shipping Weight: 1 lbs
Surface Thickness: 0.0086"
Manufacturer Part Number: MB0250-009-S
Height: 0.0172 in
Deflection at Load: 0.0042"
(No reviews yet) Write a Review
Minimum Purchase:
9 units
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: Made in USA
Material: 302 Stainless Steel
Product Depth: 2.5"
Product Height: 0.1"
Product Type: Belleville Springs
Product Width: 3.5"
Quantity Included: 1
Shipping Weight: 1 lbs
Surface Thickness: 0.0086"
Manufacturer Part Number: MB0250-009-S
Height: 0.0172 in
Deflection at Load: 0.0042"
Minimum Purchase:
9 units

These Belleville disc springs are for maintenance and assembly buyers who need a compact spring element for heavy-load applications. Their curved disc form provides spring-like action where controlled deflection is needed.

Each 302 stainless steel disc spring measures 0.25 in. outside diameter, 0.125 in. inside diameter, 0.0086 in. thick, and 0.0172 in. overall height. This package includes 12 Belleville disc springs.

Key Features:

  • Curved disc profile: Produces spring-like operation in a compact disc form.
  • 302 stainless steel: Provides the specified stainless steel construction for your component requirements.
  • 1/4 in. outside diameter: Helps buyers match the spring to assemblies requiring a 0.25 in. OD.
  • 12-pack: Supplies multiple springs for maintenance or assembly needs.

Choose these 302 stainless steel Belleville disc springs when your application calls for the listed 0.25 in. OD, 0.125 in. ID, thickness, and overall height in a 12-piece pack.

Country of Origin: Made in USA
Material: 302 Stainless Steel
Product Depth: 2.5"
Product Height: 0.1"
Product Type: Belleville Springs
Product Width: 3.5"
Quantity Included: 1
Shipping Weight: 1 lbs
Surface Thickness: 0.0086"
Manufacturer Part Number: MB0250-009-S
Height: 0.0172 in
Deflection at Load: 0.0042"
Flat Load: 16.9 lbs.
Load at Deflection: 9.9 - 13.5 lbs.
Max Outside Dimension: 0.25"
Min Inside Dimension: 0.125"
Nominal Rod Size: 0.125"
Thickness: 0.0086"
Unit of Measurement: Inch (Imperial)
Brand: Gardner Spring
Description: Belleville Disc Spring
Finish: Plain
Manufacturers Part Number: MB0250-009-S
Package Quantity: 12
Width: 2.50 in
Height: 1.00 in
Depth: 3.50 in
!
