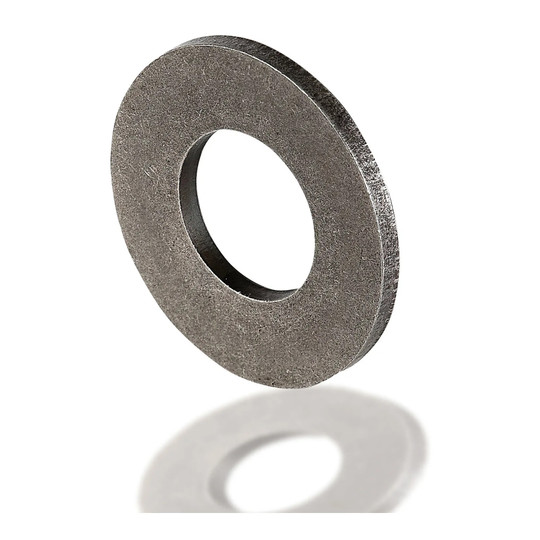

These Belleville disc springs are curved stainless steel springs for buyers who need spring-like action in heavy-load applications. Their disc shape provides a compact spring component for fastening and hardware assemblies.
Each spring is made of 302 stainless steel and measures 1.5 in. outside diameter, 0.755 in. inside diameter, and 0.072 in. thick, with a 0.107 in. overall height. Pack includes six Belleville disc springs.
Key Features:
Choose these 302 stainless steel Belleville disc springs when your assembly calls for a curved, heavy-load spring component with a 1.5 in. outside diameter.
| Country of Origin: | Made in USA |
| Material: | 302 Stainless Steel |
| Product Depth: | 2.5" |
| Product Height: | 0.2" |
| Product Type: | Belleville Springs |
| Product Width: | 3.5" |
| Quantity Included: | 1 |
| Shipping Weight: | 15 lbs |
| Surface Thickness: | 0.072" |
| Manufacturer Part Number: | MB1500-072-S |
| Height: | 0.107 in |
| Deflection at Load: | 0.018" |
| Flat Load: | 1180 lbs. |
| Load at Deflection: | 565 - 765 lbs. |
| Max Outside Dimension: | 1.5" |
| Min Inside Dimension: | 0.755" |
| Nominal Rod Size: | 0.75" |
| Thickness: | 0.072" |
| Unit of Measurement: | Inch (Imperial) |
| Brand: | Gardner Spring |
| Description: | Belleville Disc Spring |
| Finish: | Plain |
| Manufacturers Part Number: | MB1500-072-S |
| Package Quantity: | 6 |
| Width: | 2.50 in |
| Height: | 2.00 in |
| Depth: | 3.50 in |
No additional information available.
