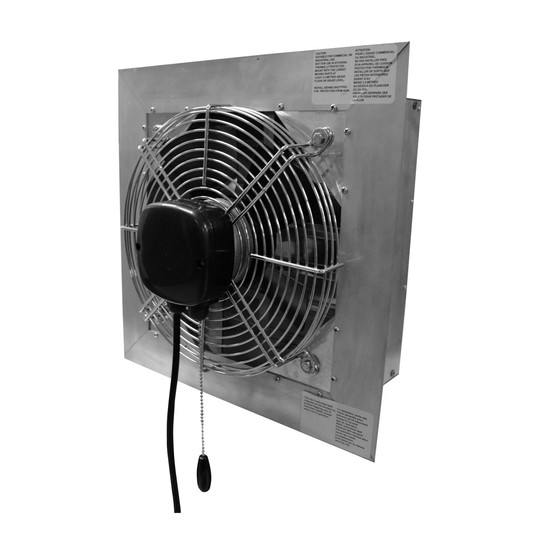

This 8-inch shutter-mounted exhaust fan is designed for facility teams and commercial operators who need general ventilation in industrial or commercial buildings. It provides horizontal air discharge to help move air from the space.
The direct-drive fan has two speeds with airflow ratings of 360 and 292 CFM and operates on single-phase power. Its heavy-duty aluminum housing includes built-in shutters that open automatically when the fan starts and close by gravity when it stops. A totally enclosed air-over motor includes overload protection, and a heavy wire chrome-plated guard is fitted on the intake side. Overall dimensions are 19 inches wide, 18 inches deep, and 11 inches high.
Key Features:
Choose this shutter-mounted fan for general ventilation where a compact 8-inch, two-speed exhaust fan with automatic shutters is needed.
| Airflow (CFM): | 292 CFM |
| Color/Finish: | Silver |
| Configuration: | Direct Drive |
| Country of Origin: | CN |
| Material: | Aluminum |
| Number of Speeds: | 2 |
| Phase: | 1 |
| Product Depth: | 19" |
| Product Height: | 11" |
| Product Type: | Shutter & Guard Mount Fans |
| Product Width: | 18" |
| Quantity Included: | 1 |
| Shipping Weight: | 11 lbs |
| Manufacturer Part Number: | AX08 |
| Color: | Silver |
| Length: | 14-3/4 in |
| Width: | 8-7/8 in |
| Height: | 14-3/4 in |
| Weight: | 13 lbs |
| Fan Diameter: | 8 in |
| Rough Opening: | 11-3/4 in |
| Amperage: | 0.2 A |
| Assembly Required: | No |
| Brand: | Canarm |
| CFM: | 360/292 CFM |
| Decibels: | 48 |
| Drive Type: | Direct Drive |
| Fan Type: | Shutter Mounted |
| Hertz: | 60 Hz |
| Horsepower: | 25W HP |
| Housing Material: | Alumunim |
| Manufacturers Part Number: | AX08 |
| Motor Type: | Totally Enclosed Air Over |
| Mounting Location: | Wall |
| Number of Blades: | 3 |
| Power Cord Type: | Hard Wire |
| RPM: | 1600/1300 rpm |
| Voltage: | 115 V |
| Warranty: | 1 yr |
| Certifications: | OSHA |
| Width: | 19.00 in |
| Height: | 11.00 in |
| Depth: | 18.00 in |
