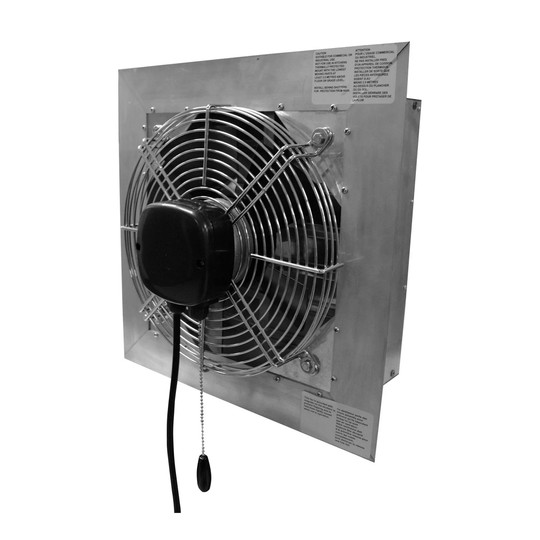

This 10-inch shutter-mounted exhaust fan is designed for facilities teams and commercial operators who need general ventilation in factories, garages, agricultural spaces, warehouses, and other industrial or commercial buildings. It helps move air out of the space through a horizontal discharge configuration.
The fan has a direct-drive design, heavy-duty aluminum housing, and built-in shutters. The shutters open automatically when the fan starts and close by gravity after it stops. It operates on single-phase power with two speeds and is rated for 500/388 CFM airflow. A totally enclosed air-over motor includes overload protection, and a heavy-wire chrome-plated guard is installed on the intake side. Overall dimensions are 19 inches wide, 18 inches deep, and 11 inches high.
Key Features:
A practical choice for general exhaust ventilation where a compact, shutter-mounted, two-speed fan is needed.
| Airflow (CFM): | 388 CFM |
| Color/Finish: | Silver |
| Configuration: | Direct Drive |
| Country of Origin: | CN |
| Material: | Aluminum |
| Number of Speeds: | 2 |
| Phase: | 1 |
| Product Depth: | 19" |
| Product Height: | 11" |
| Product Type: | Shutter & Guard Mount Fans |
| Product Width: | 18" |
| Quantity Included: | 1 |
| Shipping Weight: | 12 lbs |
| Manufacturer Part Number: | AX10 |
| Color: | Silver |
| Length: | 14-3/4 in |
| Width: | 8-7/8 in |
| Height: | 14-3/4 in |
| Weight: | 15 lbs |
| Fan Diameter: | 10 in |
| Rough Opening: | 11-3/4 in |
| Amperage: | 0.5 A |
| Assembly Required: | No |
| Brand: | Canarm |
| CFM: | 500/388 CFM |
| Decibels: | 55 |
| Drive Type: | Direct Drive |
| Fan Type: | Shutter Mounted |
| Horsepower: | 60W HP |
| Housing Material: | Alumunim |
| Manufacturers Part Number: | AX10 |
| Motor Type: | Totally Enclosed Air Over |
| Mounting Location: | Wall |
| Number of Blades: | 3 |
| Power Cord Type: | Hard Wire |
| RPM: | 1480/1150 rpm |
| Voltage: | 115 V |
| Warranty: | 1 yr |
| Certifications: | OSHA |
| Width: | 19.00 in |
| Height: | 11.00 in |
| Depth: | 18.00 in |
No additional information available.
