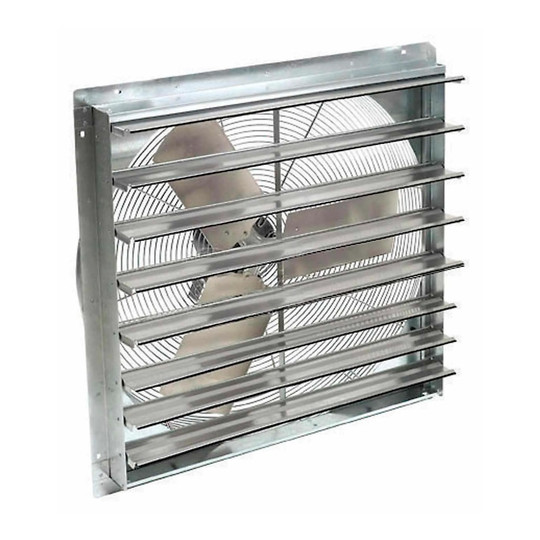

14-Inch Shutter-Mounted Exhaust Fan, 1,520 CFM

This shutter-mounted exhaust fan is designed for commercial users who need to move air out of an interior space. It mounts on an inside wall, helping provide exhaust ventilation without requiring an external shutter or framing.

The fan delivers 1,520 CFM with a 1/8 HP, 120V single-phase motor that is totally permanently lubricated and arranged for direct wiring. Aluminum blades are enclosed by a steel spiral wire guard. The unit measures 18.25 inches wide, 19 inches deep, and 12.5 inches high. The rough-in opening should be 1/2 inch larger than the fan blade size, with a tolerance of plus or minus 5/16 inch.

Key Features:

• Shutter-mounted design: Installs on an inside wall and eliminates the need for external framing and a separate shutter.
• 1,520 CFM airflow: Provides substantial exhaust airflow for ventilation needs.
• 120V single-phase motor: Supports direct-wiring installation with compatible 120V power.
• Permanently lubricated motor: Helps reduce routine lubrication requirements.

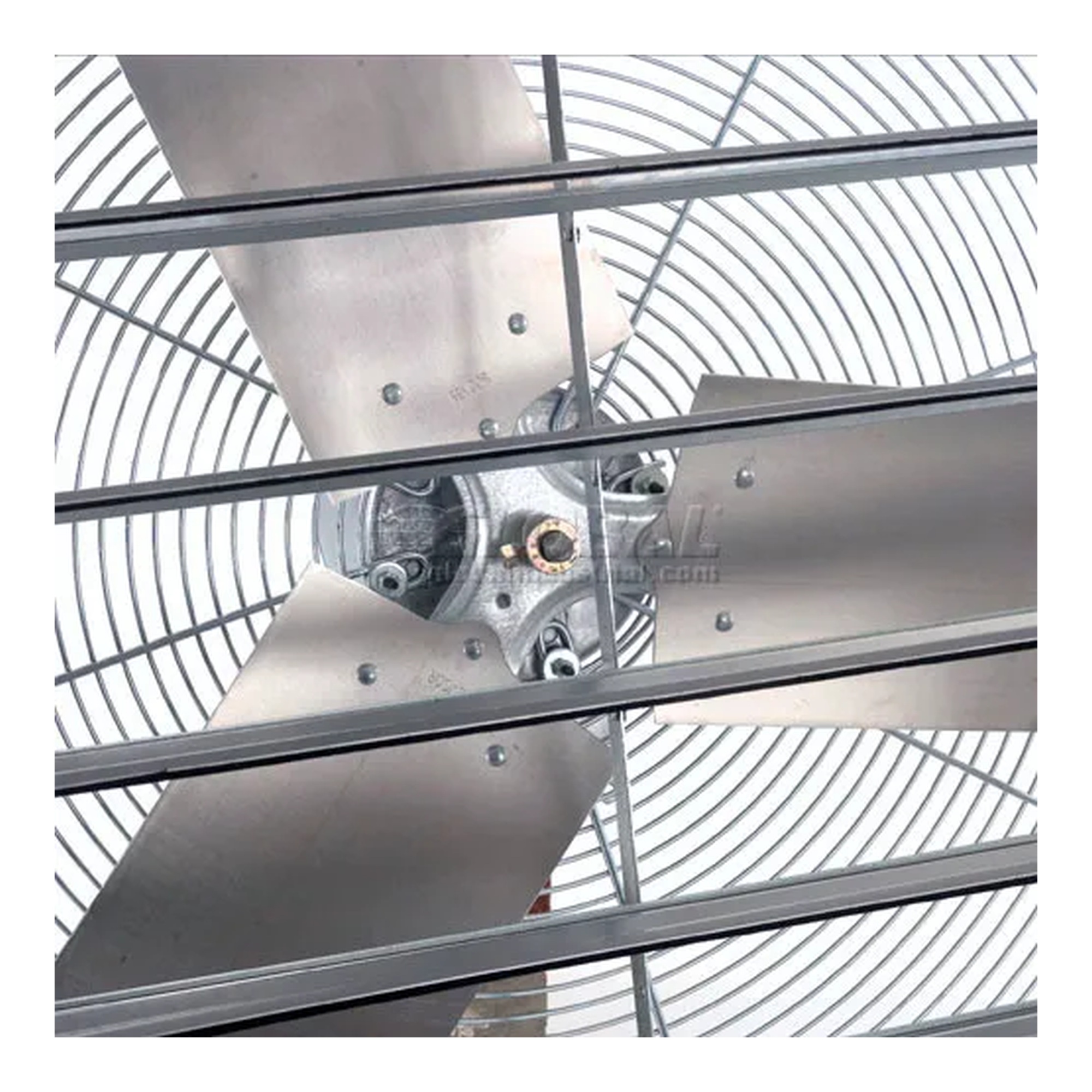

• Guarded aluminum blades: Combines aluminum fan blades with a steel spiral wire guard for protected operation.
• Quiet operation: Helps limit operating noise in commercial environments.

Choose this 14-inch shutter-mounted fan for inside-wall exhaust installations requiring 1,520 CFM airflow, a guarded blade assembly, and 120V single-phase operation.
