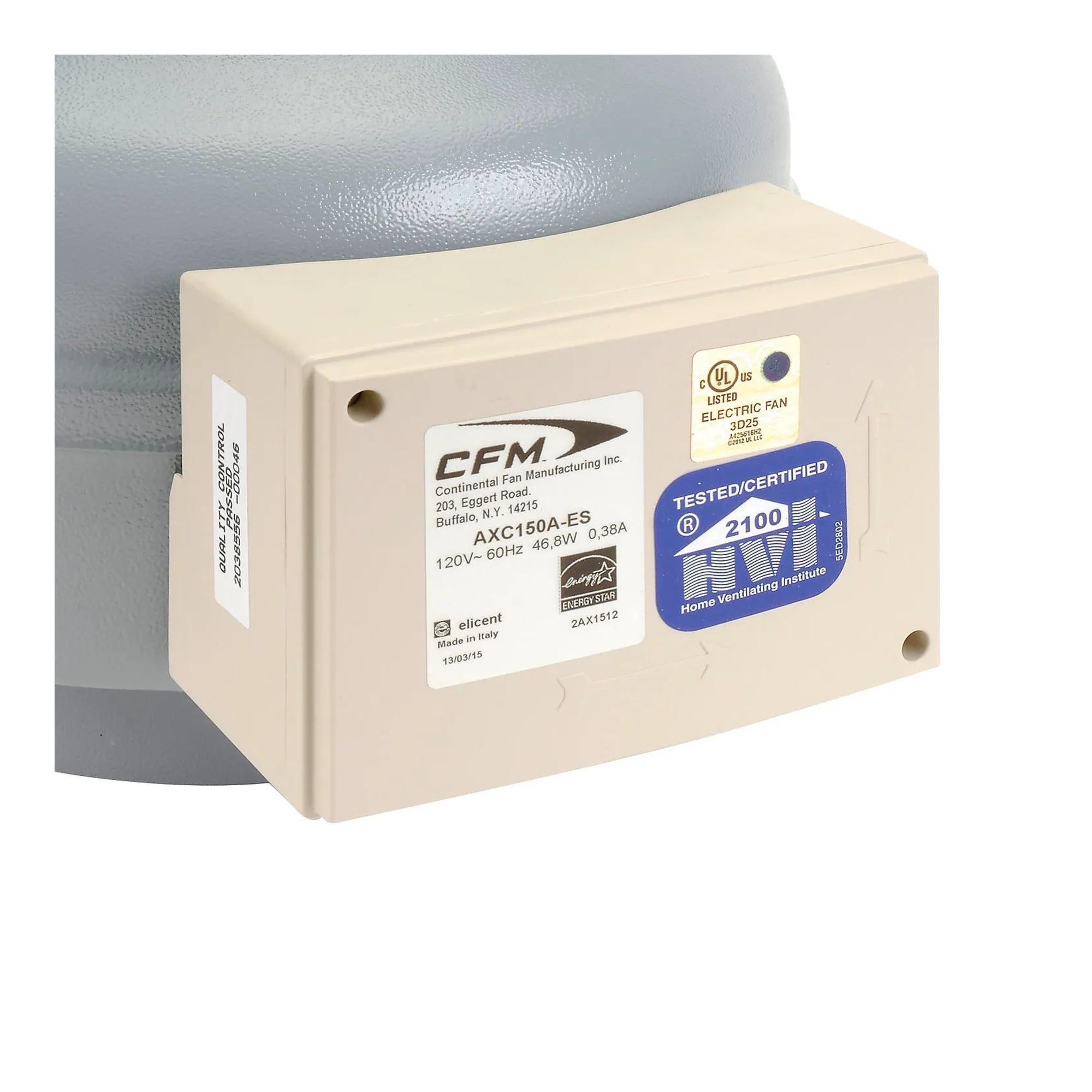

6-Inch Energy Star In-Line Duct Fan, 235 CFM

This 6-inch in-line duct fan is designed for residential, commercial, and light industrial ventilation users who need to move air through ductwork. It can be used to supply or exhaust air and helps support airflow through long or complex duct runs.

The fan delivers 235 CFM and operates on 120V power. Its heavy-gauge drawn steel housing has a baked epoxy finish, and the backward-curved centrifugal motorized impeller is precision balanced. The unit measures 12 inches wide, 12 inches deep, and 10 inches high. Included mounting brackets support installation in any position, while the external junction box includes a pre-wired capacitor. The permanently lubricated ball-bearing motor includes automatic-reset thermal overload protection and is suitable for air temperatures up to 140°F.

Key Features:

• 235 CFM airflow: Provides air-moving capacity for ducted ventilation applications.
• In-line design: Installs within ductwork to help move supply or exhaust air through long or complex runs.
• Mounting brackets included: Supports installation in any position without requiring separate brackets.
• Steel housing with epoxy finish: Provides a durable enclosure for the fan assembly.
• Permanently lubricated ball-bearing motor: Supports maintenance-free operation.
• Automatic-reset thermal protection: Helps protect the motor during thermal overload conditions.

Choose this 6-inch duct fan for 120V ventilation systems that require 235 CFM airflow, flexible mounting orientation, and supply or exhaust operation.
