8-Inch In-Line Duct Fan, 579 CFM

This 8-inch in-line duct fan helps residential, commercial, and light industrial users move supply or exhaust air through duct systems. It is designed to support ventilation needs where airflow must travel through long or complex duct runs.

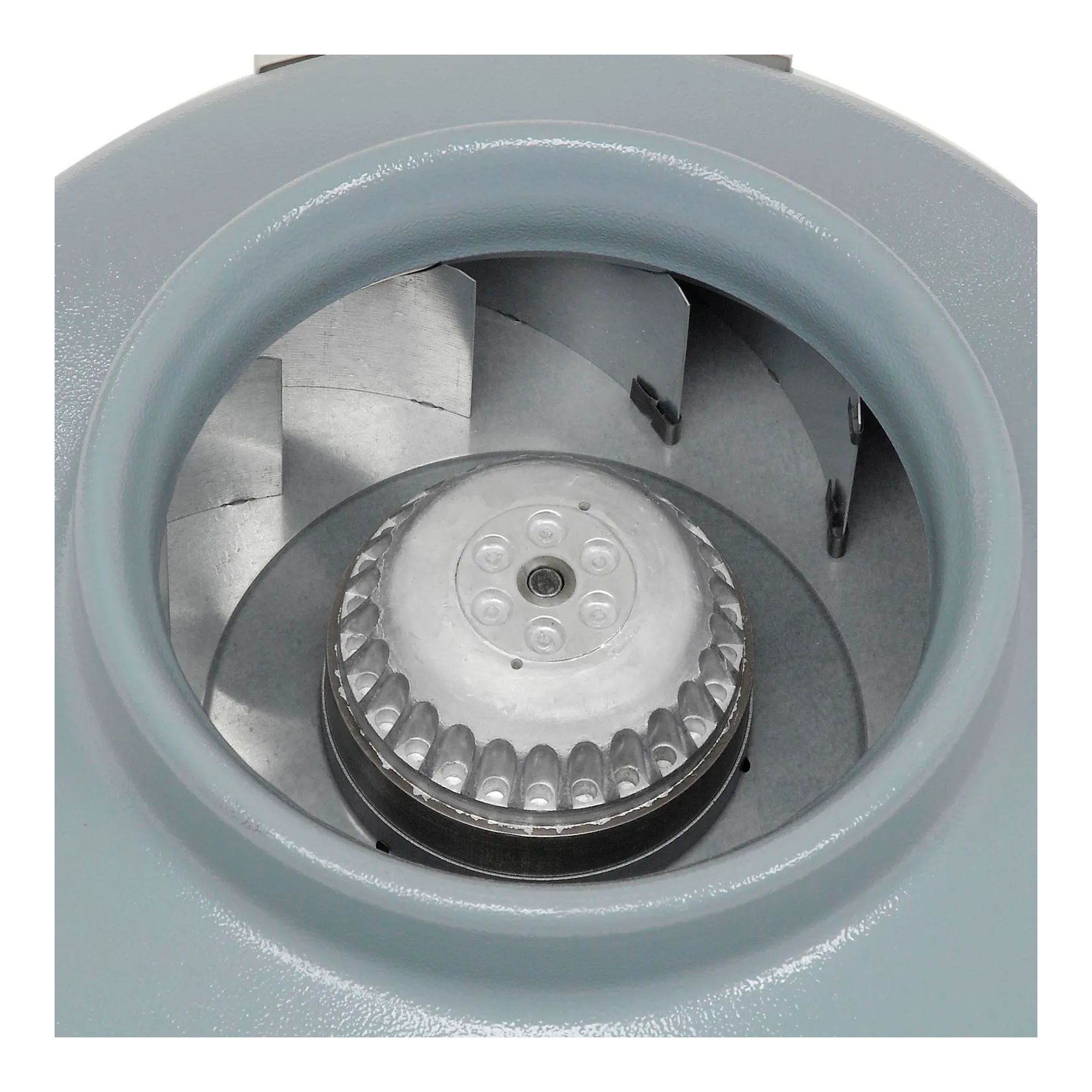

The fan delivers 579 CFM and operates on 120V power. Its heavy-gauge drawn steel housing has a baked epoxy finish, and the backward-curved centrifugal motorized impeller is precision balanced. Included mounting brackets allow installation in any position, while the accessible external junction box includes a pre-wired capacitor. The unit measures 15 inches wide by 15 inches deep by 11 inches high and is suitable for air temperatures up to 140°F (60°C).

Key Features:

• 579 CFM airflow: Provides substantial air movement for ducted ventilation systems.
• 8-inch duct fan: Fits applications requiring an 8-inch in-line fan.
• Flexible mounting: Can be installed in any position using the included mounting brackets.
• Supply or exhaust operation: Supports either bringing air in or removing air from a duct system.
• Balanced centrifugal impeller: Helps promote quiet, low-vibration operation.
• Permanently lubricated motor: Supports maintenance-free operation.

Choose this in-line duct fan for 8-inch duct ventilation systems that need 579 CFM airflow, flexible mounting, and supply or exhaust capability.
