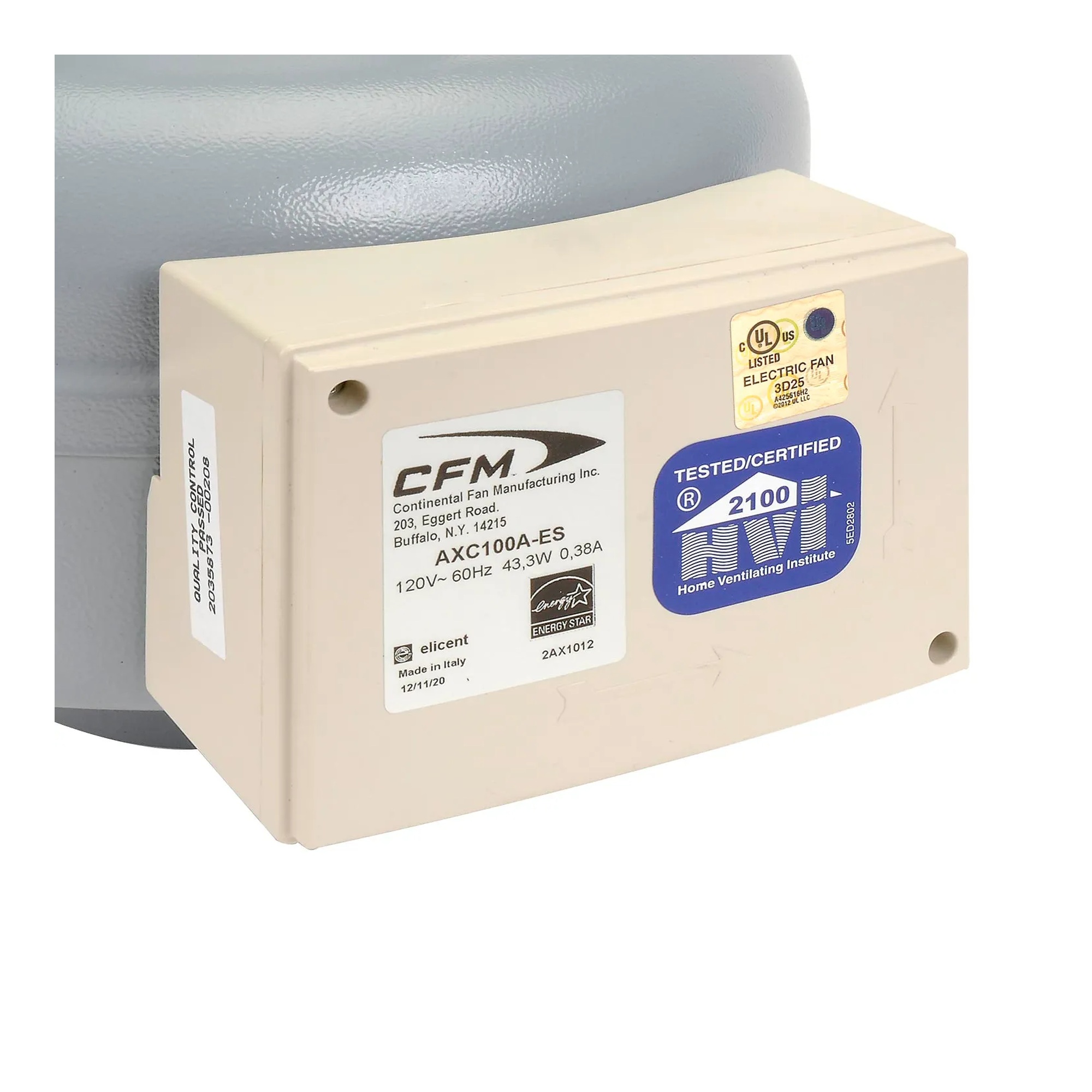

4-Inch Energy Star In-Line Duct Fan

This 4-inch in-line duct fan helps residential, commercial, and light industrial users move supply or exhaust air through ductwork. It is designed to support airflow in long or complex duct runs and in spaces that are difficult to heat or cool.

The fan delivers 147 CFM on 120V power and measures 12 in. W x 12 in. D x 10 in. H. Its gray heavy-gauge drawn steel housing has a baked epoxy finish. A backward-curved centrifugal motorized impeller, permanently lubricated ball-bearing motor, external junction box with pre-wired capacitor, automatic-reset thermal overload protection, and included mounting brackets support installation and operation. The unit can be mounted in any position and is suitable for air temperatures up to 140°F.

Key Features:

• 147 CFM airflow: Helps move air through 4-inch ductwork.
• In-line configuration: Supports supply-air or exhaust-air installations within a duct run.
• Any-position mounting: Provides flexibility when locating the fan during installation.
• Included mounting brackets: Helps streamline fan installation.
• Permanently lubricated ball bearings: Provide maintenance-free motor operation.
• Thermal overload protection: Automatically resets following an overload condition.

Choose this 4-inch duct fan for 120V supply or exhaust ventilation where a compact in-line unit and 147 CFM airflow fit the duct system requirements.
