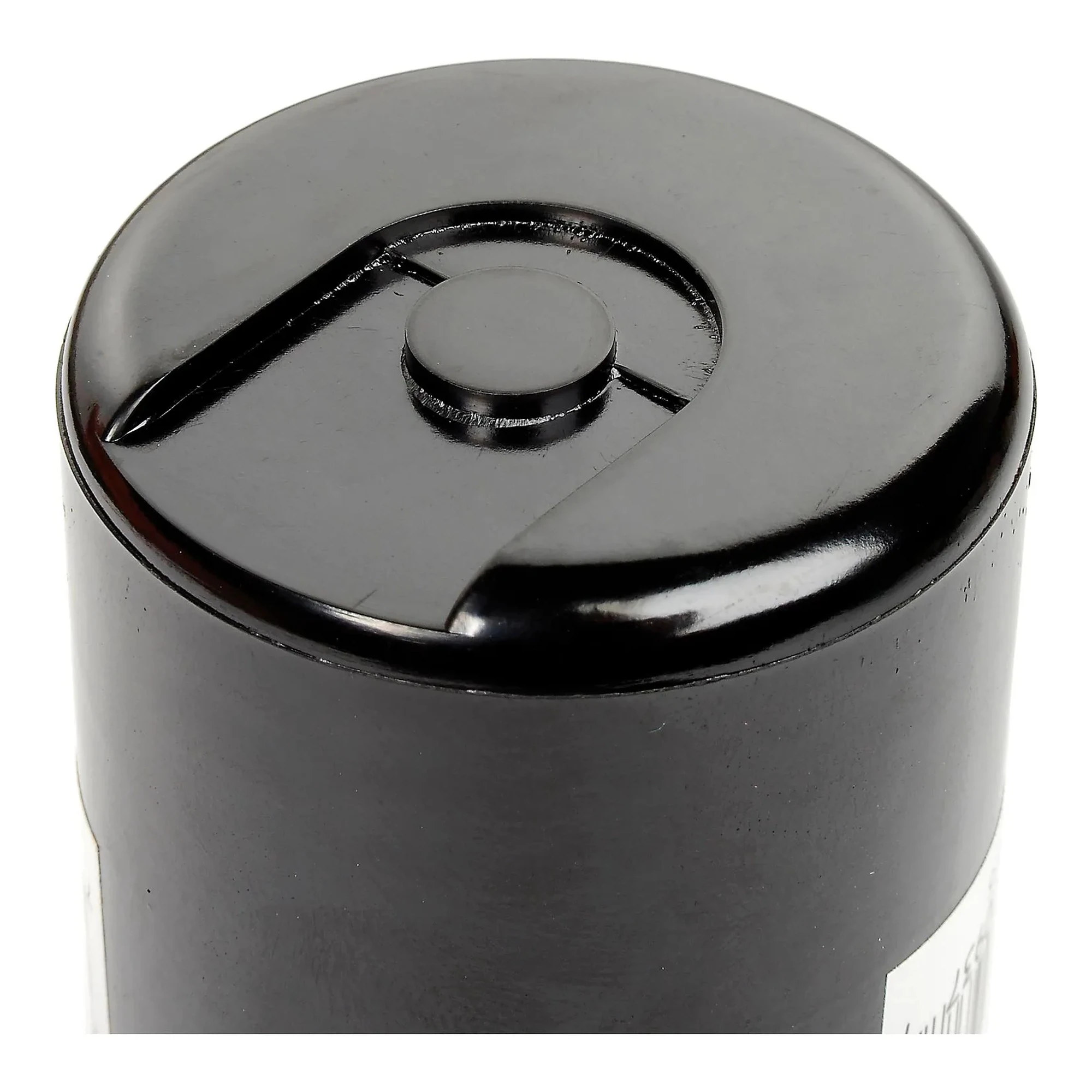

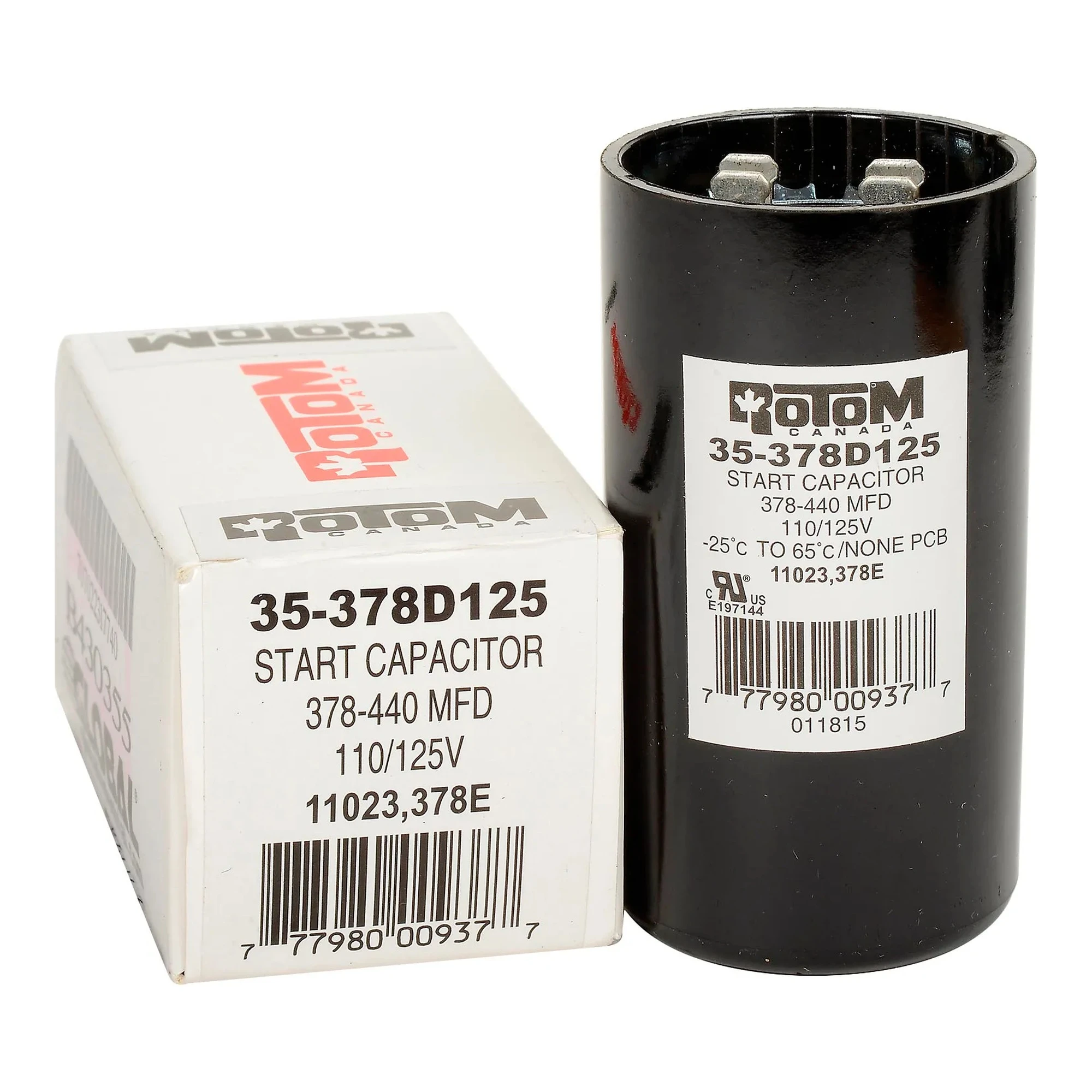

378-440 MFD 125V Round Motor Start Capacitor

This round motor start capacitor is for technicians servicing AC motor starting circuits. It provides the starting function needed for intermittent-duty motor applications.

This 125V, 378-440 MFD dry electrolytic, non-polarized capacitor is designed for 50/60 Hz AC motor starting circuits. Its round molded phenolic resin or plastic case resists moisture and oil, and standard dual-blade terminals support connection. It is rated for 3-second starts and up to 20 starts per hour, with a listed operating temperature range of -40°F to 149°F. Overall dimensions are 1.8 in. W x 1.8 in. D x 3.4 in. H.

Key Features:

• Intermittent-duty design: Supports AC motor starting applications that require short-duration starting operation.
• Dual-blade terminals: Provides standard terminal connections for installation in compatible motor starting circuits.
• Moisture- and oil-resistant case: Helps protect the capacitor case in operating environments exposed to moisture or oil.
• 3-second start rating: Supports starting cycles of up to 3 seconds, with a maximum of 20 starts per hour.

Choose this round start capacitor for compatible 125V AC motor starting circuits requiring a 378-440 MFD capacitor with dual-blade terminals and intermittent-duty operation.
