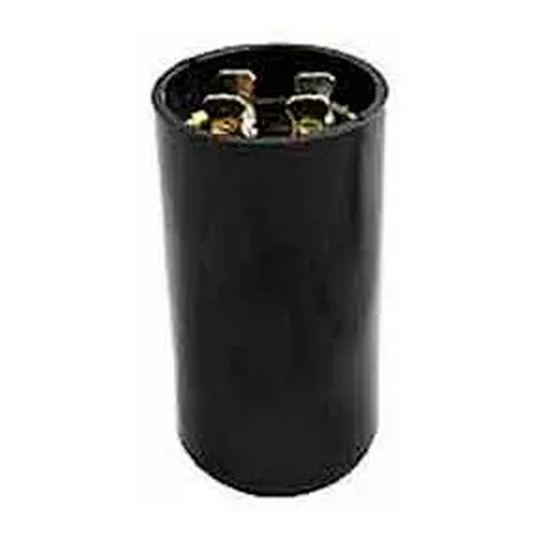

145–174 MFD 110/125V Round Motor Start Capacitor

This round motor start capacitor is designed for HVAC technicians and maintenance professionals working on AC motor starting circuits. It supplies starting support for intermittent-duty motor applications.

This dry electrolytic, non-polarized capacitor has a 145–174 MFD rating and operates at 110/125V on 50/60 Hz circuits. Its round, moisture- and oil-resistant molded phenolic resin or plastic case measures 1.5 in. x 1.5 in. x 3 in. and includes standard dual-blade terminals. It is rated for 3-second starts, up to 20 starts per hour, and temperatures from -40°F to 149°F. The capacitor meets or exceeds EIA RS-463 Type 2 requirements and is UL Recognized and cUL Approved.

Key Features:

• Intermittent-duty design: Supports AC motor starting circuits where short-duration starting duty is required.
• 145–174 MFD, 110/125V rating: Helps buyers match the capacitor to compatible motor-start circuit requirements.
• Dual-blade terminals: Provides a standard terminal connection style for installation work.
• Resistant round case: Moisture- and oil-resistant housing helps protect the capacitor in demanding operating environments.
• 20 starts per hour: Supports repeated motor-start cycles within its specified duty rating.

Choose this capacitor for compatible 110/125V AC motor starting circuits requiring a round 145–174 MFD unit with dual-blade terminals and intermittent-duty operation.
