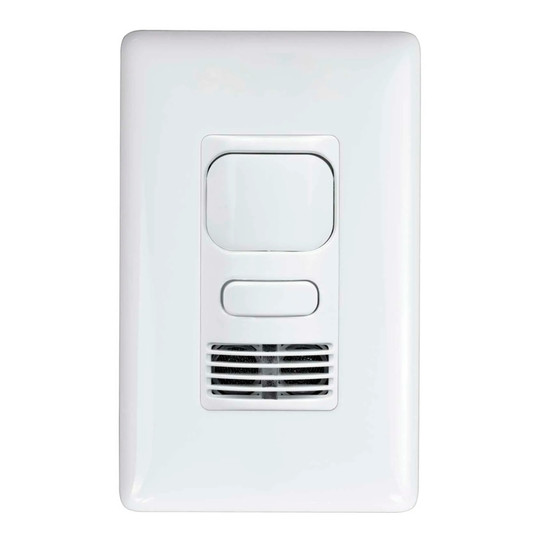

White PIR Wall Switch Occupancy Sensor, 1-Button

This white PIR wall-switch occupancy sensor is for facility users who need occupancy-based lighting control from a wall-mounted device. It helps manage lighting based on detected occupancy while fitting a standard single-gang switch-box location.

The all-digital passive infrared sensor uses a single relay and self-adaptive technology that does not require manual adjustment. It provides coverage for areas up to 1,000 square feet, mounts to a single-gang NEMA-style switch box, and operates on 120/277 VAC at 50/60 Hz in temperatures from 32 to 104°F. Its high-impact, injection-molded plastic casing is white. Listed overall dimensions are 2.7 x 5.6 x 7.1 inches. A decorator wall plate is sold separately.

Key Features:

• PIR occupancy sensing: Supports occupancy-based lighting control from a wall-switch location.
• Self-adaptive technology: Eliminates the need for manual adjustment.
• 1,000 sq. ft. coverage: Provides coverage for areas up to 1,000 square feet.
• Single-gang mounting: Installs in a single-gang NEMA-style switch box.
• 120/277 VAC operation: Works with 120/277 VAC, 50/60 Hz electrical systems.

Choose this one-button PIR occupancy sensor for single-gang wall-switch installations requiring self-adaptive operation, up to 1,000 square feet of coverage, and a separate decorator wall plate.
