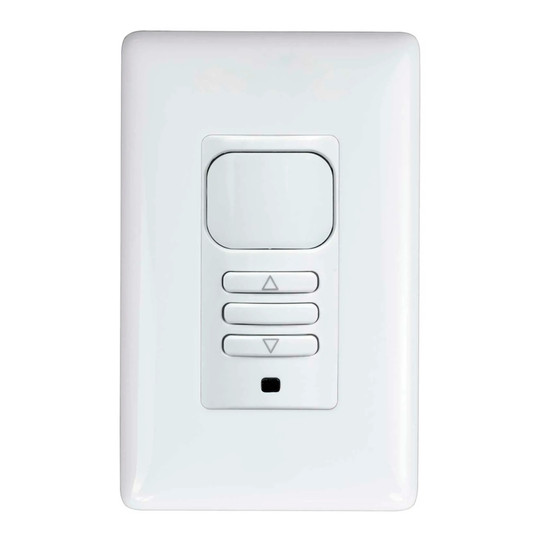

White PIR 0–10V Dimming Wall Switch Occupancy Sensor

This wall switch occupancy sensor is designed for commercial users who need automatic lighting control in occupied areas. Its passive infrared sensing helps control lighting based on occupancy, while its dimming capability supports 0–10V lighting control.

The all-digital PIR sensor uses self-adaptive technology that requires no manual adjustment and provides coverage for areas up to 1,000 square feet. It has a high-impact, injection-molded white plastic housing, mounts in a single-gang NEMA-style switch box, and operates on 120/277 VAC at 50/60 Hz. Operating temperature range is 32 to 104°F (0 to 40°C). A decorator wall plate is sold separately.

Key Features:

• PIR occupancy sensing: Provides automatic lighting control in occupied spaces.
• 0–10V dimming: Supports compatible 0–10V lighting-control applications.
• Self-adaptive operation: Eliminates the need for manual adjustment.
• 1,000 sq. ft. coverage: Serves larger coverage areas from a wall-switch location.
• Single-gang mounting: Installs in a NEMA-style single-gang switch box.
• High-impact plastic housing: Provides a durable white enclosure for the sensor.

Choose this white wall-mount PIR occupancy sensor for single-gang installations requiring occupancy-based control and 0–10V dimming compatibility. Remember to order a decorator wall plate separately.
