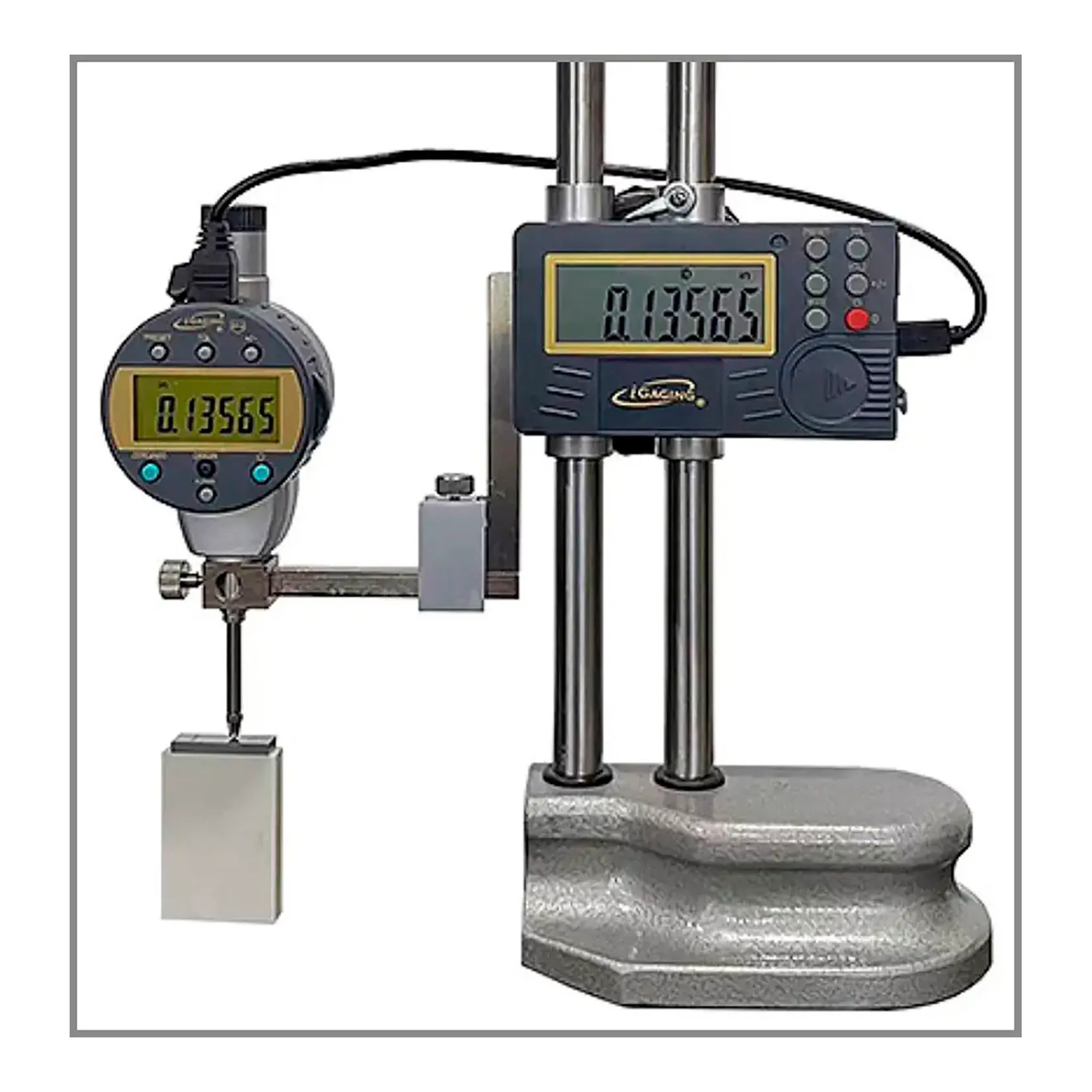

Twin Beam Digital Height Gauge with USB Data Output, 0–12 in. Range

This digital height gauge helps inspectors, machinists, and quality-control teams measure and mark height-based dimensions on a reference surface. Its twin-beam design, digital display, and carbide-tipped scriber support precise layout and inspection work.

The gauge provides a 0–12 in. measuring range with 0.0008 in. accuracy. It uses absolute encoding technology with a memorized absolute origin and zero function, and it converts between inch, metric, and fractional readings at any position. Features include a large LCD, travel indicator bar, USB data output port, included data cable, IP54 moisture and dust resistance, and automatic shutoff after 5 minutes. A 3V CR2032 battery and AC power supply are included, along with a molded protective shop case.

Key Features:

• 0–12 in. measuring range: Supports height measurement and layout across a broad working range.
• 0.0008 in. accuracy: Helps users perform detailed dimensional inspection and marking tasks.
• Absolute encoding: Retains a memorized origin for efficient zeroing and repeat measurements.
• Multi-unit conversion: Allows inch, metric, and fractional readings to be selected at any position.
• USB data output: Provides a connection point for transferring measurement data.
• Carbide-tipped scriber: Enables durable surface marking during layout work.

Choose this digital height gauge for dimensional measuring and layout tasks that need a 12-inch range, selectable measurement units, and USB data capability. Its included accessories and protective case support organized shop use.
