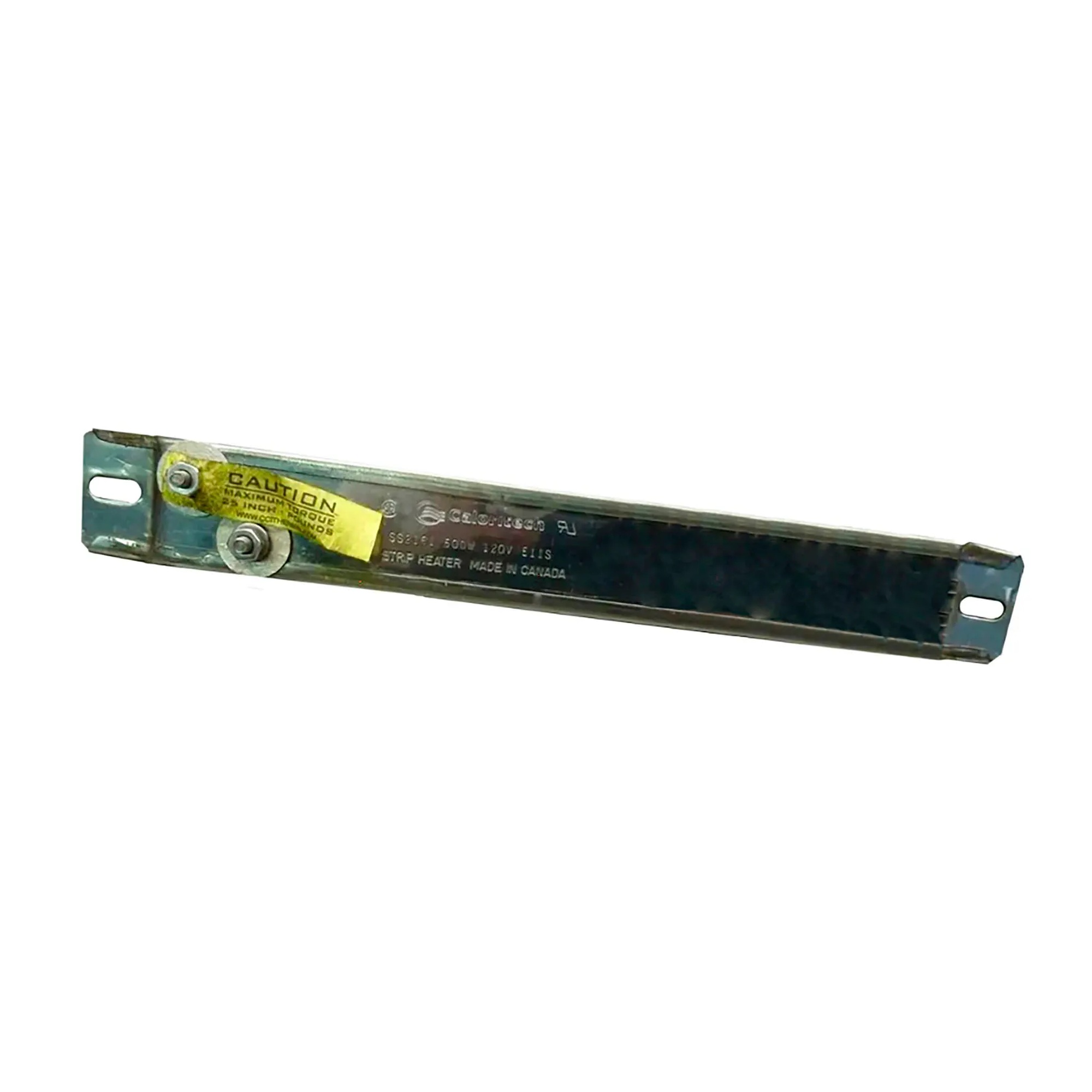

240V 500W component strip heater with offset terminals

240V 500W Component Strip Heater, 23-1/2 in. L

SKU:
WBB3151215
Model/MPN:
SS1372
Our Price:
$76.94
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: CA
Material: Stainless Steel
Product Depth: 4"
Product Height: 4"
Product Type: Strip Heaters
Product Width: 25"
Quantity Included: 1
Voltage: 240 V
Manufacturer Part Number: SS1372
Length: 23-1/2 in
Width: 1-1/2 in
Screw Size: 10 - 32
Slotted Hole Length: 5/8 in
Slotted Hole Width: 9/32 in
Brand: Caloritech
Manufacturers Part Number: SS1372
Max Exposure Temperature: 1000 °F
Sheath Material: Aluminum Steel
Type: Strip Heater
Watt Density: 6.8 W
Wattage: 500 W
Watts High: 500 W
Warranty: 1
Certifications: CSA, UL Safety
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: CA
Material: Stainless Steel
Product Depth: 4"
Product Height: 4"
Product Type: Strip Heaters
Product Width: 25"
Quantity Included: 1
Voltage: 240 V
Manufacturer Part Number: SS1372
Length: 23-1/2 in
Width: 1-1/2 in
Screw Size: 10 - 32
Slotted Hole Length: 5/8 in
Slotted Hole Width: 9/32 in
Brand: Caloritech
Manufacturers Part Number: SS1372
Max Exposure Temperature: 1000 °F
Sheath Material: Aluminum Steel
Type: Strip Heater
Watt Density: 6.8 W
Wattage: 500 W
Watts High: 500 W
Warranty: 1
Certifications: CSA, UL Safety

This component strip heater provides radiant heat for industrial users who need to heat surfaces or process air. It is suited to applications such as platens, dies, molds, tanks, piping, drying equipment, and ovens.

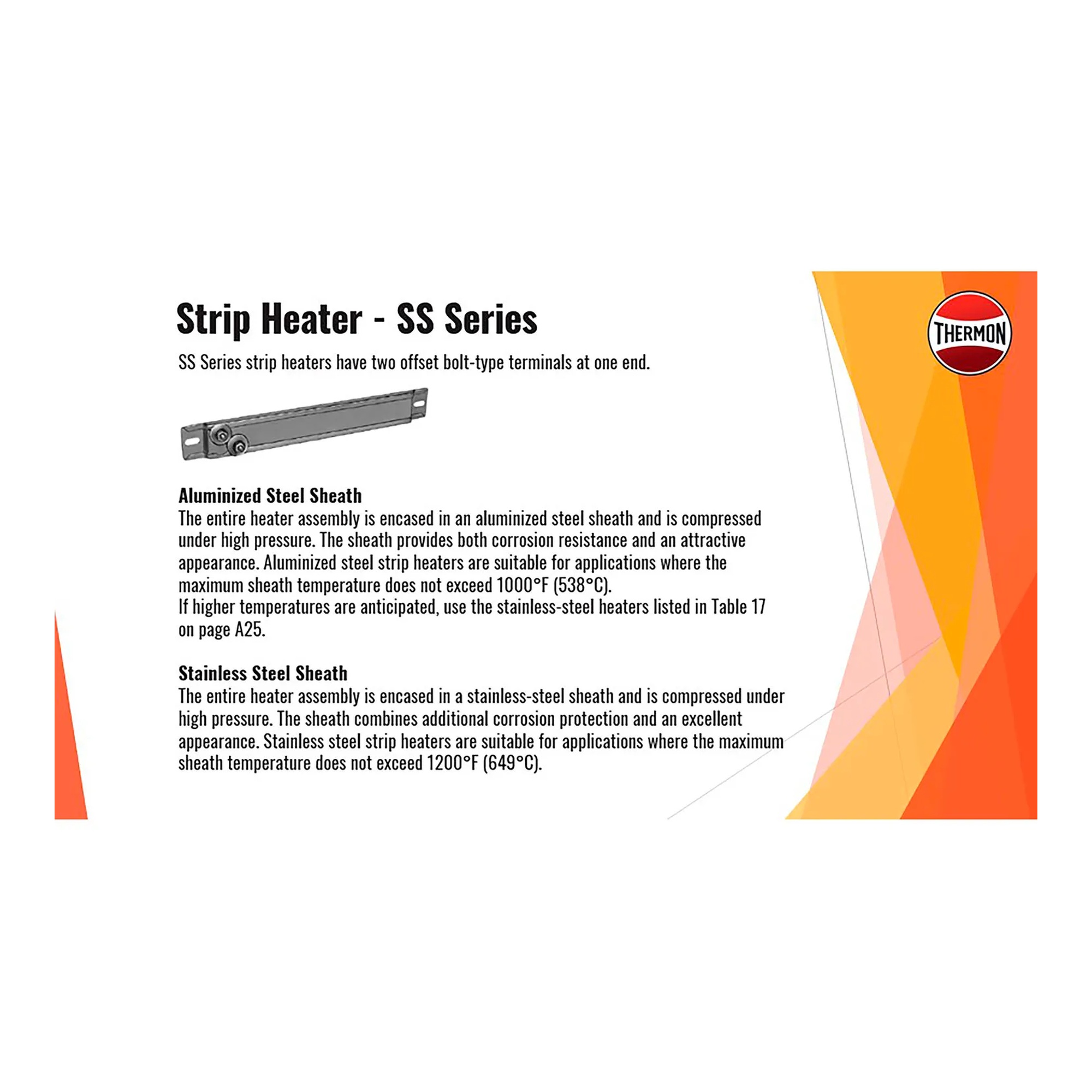

The heater is rated for 240V and 500W and measures 23-1/2 inches long. Its assembly is enclosed in an aluminized steel sheath, and it has two offset bolt-type terminals at one end. Mounting holes support secure installation, while the terminal extends from the sheath for electrical connection. The sheath is suitable for applications with maximum sheath temperatures up to 1000°F (538°C).

Key Features:

  • 240V, 500W output: Provides defined electrical heating capacity for compatible industrial heating setups.
  • Offset bolt terminals: Supports electrical connection from one end of the heater.
  • Aluminized steel sheath: Provides corrosion resistance around the heater assembly.
  • Mounting holes: Helps secure the heater during installation.
  • Surface-mount control compatibility: Can be controlled with a heating control panel, mechanical thermostat, or bi-metal thermostat installed on the heater surface.

Choose this 23-1/2-inch component strip heater for compatible 240V industrial surface-heating or process-air-heating installations where end-mounted terminals and secure mounting are needed.

Country of Origin: CA
Material: Stainless Steel
Product Depth: 4"
Product Height: 4"
Product Type: Strip Heaters
Product Width: 25"
Quantity Included: 1
Voltage: 240 V
Manufacturer Part Number: SS1372
Length: 23-1/2 in
Width: 1-1/2 in
Screw Size: 10 - 32
Slotted Hole Length: 5/8 in
Slotted Hole Width: 9/32 in
Brand: Caloritech
Manufacturers Part Number: SS1372
Max Exposure Temperature: 1000 °F
Sheath Material: Aluminum Steel
Type: Strip Heater
Watt Density: 6.8 W
Wattage: 500 W
Watts High: 500 W
Warranty: 1
Certifications: CSA, UL Safety
Width: 4.00 in
Height: 4.00 in
Depth: 25.00 in
!
