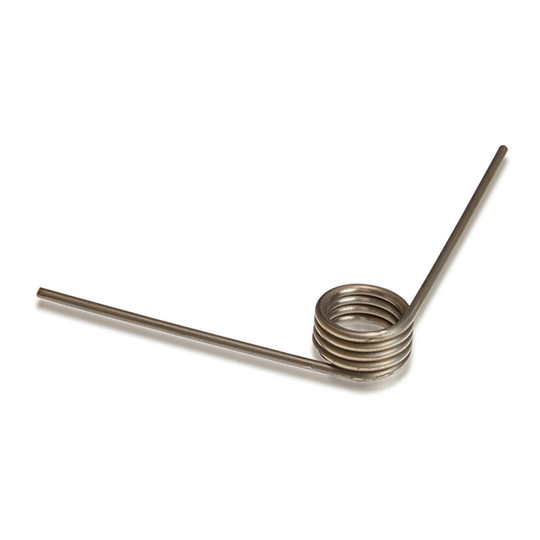

Right-wound 90 degree music wire torsion spring with 1.102 inch coil diameter

Right-Wound 90° Music Wire Torsion Spring, 1.102 in. Coil Diameter

SKU:
WBB2222973
Our Price:
$1.56
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: Made in USA
Product Depth: 1.581"
Product Height: 1.086"
Product Type: Torsion Springs
Product Width: 9.086"
Quantity Included: 1
Manufacturer Part Number: 766090135MR
Calculated Length @ Torque (Approx.): 0.979
Coil Outside Diameter: 1.102"
Leg Length: 4 in
Max Rod Size: 0.766"
(No reviews yet) Write a Review
Minimum Purchase:
46 units
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: Made in USA
Product Depth: 1.581"
Product Height: 1.086"
Product Type: Torsion Springs
Product Width: 9.086"
Quantity Included: 1
Manufacturer Part Number: 766090135MR
Calculated Length @ Torque (Approx.): 0.979
Coil Outside Diameter: 1.102"
Leg Length: 4 in
Max Rod Size: 0.766"
Minimum Purchase:
46 units

This 90° torsion spring is for maintenance and assembly teams that need resistance to externally applied torque. As its ends are rotated through angular deflection, it provides torque resistance for supported spring arrangements.

Made from music wire, this right-wound torsion spring has a 1.102 in. coil diameter and a 0.135 in. wire diameter. It is designed for 90° operation and is commonly used over an arbor or mandrel for support. One spring is included.

Key Features:

  • Right-wound design: Supports applications that require a right-wound torsion spring orientation.
  • 90° torsion action: Provides resistance as the spring ends are rotated through angular deflection.
  • Music wire construction: Supplies the specified music wire spring material for matching existing requirements.
  • Arbor or mandrel support: Allows the spring to be used in supported arrangements over an arbor or mandrel.

Choose this torsion spring when your assembly calls for a right-wound, 90° music wire spring with a 1.102 in. coil diameter and 0.135 in. wire diameter.

Country of Origin: Made in USA
Product Depth: 1.581"
Product Height: 1.086"
Product Type: Torsion Springs
Product Width: 9.086"
Quantity Included: 1
Manufacturer Part Number: 766090135MR
Calculated Length @ Torque (Approx.): 0.979
Coil Outside Diameter: 1.102"
Leg Length: 4 in
Max Rod Size: 0.766"
Rate: 0.4444 lbs
Torque @ 1/2 Leg Length: 40
Wire Diameter: 0.135 in
Brand: Gardner Spring
Deflection Angle: 90°
Direction of Wind: Right
Manufacturers Part Number: 766090135MR
Material: Carbon Steel Music Wire
Number of Coils: 6.25
Package Quantity: 1
Width: 1.58 in
Height: 1.09 in
Depth: 9.09 in
!
