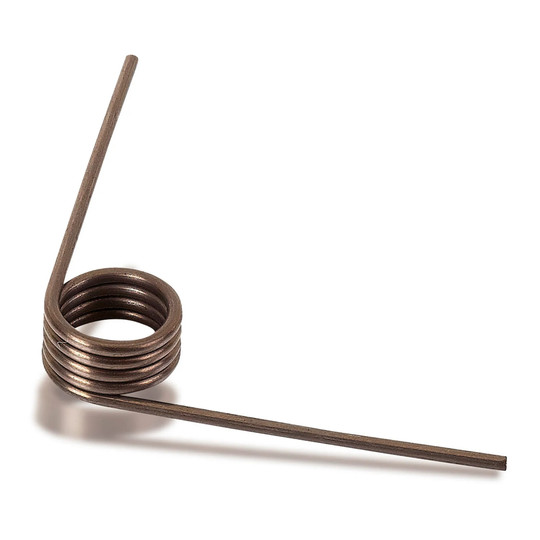

90° left-wound music wire torsion spring with 1.102 inch coil diameter

90° Left-Wound Music Wire Torsion Spring, 1.102 in. Coil Diameter

SKU:
WBB2222902
Our Price:
$1.56
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: Made in USA
Product Depth: 1.581"
Product Height: 1.086"
Product Type: Torsion Springs
Product Width: 9.086"
Quantity Included: 1
Manufacturer Part Number: 766090135ML
Calculated Length @ Torque (Approx.): 0.979
Coil Outside Diameter: 1.102"
Leg Length: 4 in
Max Rod Size: 0.766"
(No reviews yet) Write a Review
Minimum Purchase:
46 units
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: Made in USA
Product Depth: 1.581"
Product Height: 1.086"
Product Type: Torsion Springs
Product Width: 9.086"
Quantity Included: 1
Manufacturer Part Number: 766090135ML
Calculated Length @ Torque (Approx.): 0.979
Coil Outside Diameter: 1.102"
Leg Length: 4 in
Max Rod Size: 0.766"
Minimum Purchase:
46 units

This 90° torsion spring is for users who need resistance to applied torque as spring ends rotate through angular deflection. It can be used over an arbor or mandrel for support.

The spring has a 1.102 in. coil diameter, 0.135 in. wire diameter, 90° configuration, and left-wound direction. It is made from music wire.

Key Features:

  • Torsion spring design: Provides resistance when its ends are rotated under applied torque.
  • Left-wound configuration: Helps match applications requiring a left-wound spring direction.
  • 90° form: Supports setups that require a 90° torsion spring configuration.
  • Music wire construction: Provides the specified wire material for compatible spring replacement or assembly needs.
  • Arbor or mandrel compatibility: Allows the spring to be supported over an arbor or mandrel.

Choose this left-wound 90° torsion spring when your application calls for a 1.102 in. coil diameter, 0.135 in. wire diameter, and support over an arbor or mandrel.

Country of Origin: Made in USA
Product Depth: 1.581"
Product Height: 1.086"
Product Type: Torsion Springs
Product Width: 9.086"
Quantity Included: 1
Manufacturer Part Number: 766090135ML
Calculated Length @ Torque (Approx.): 0.979
Coil Outside Diameter: 1.102"
Leg Length: 4 in
Max Rod Size: 0.766"
Rate: 0.4444 lbs
Torque @ 1/2 Leg Length: 40
Wire Diameter: 0.135 in
Brand: Gardner Spring
Deflection Angle: 90°
Direction of Wind: Left
Manufacturers Part Number: 766090135ML
Material: Carbon Steel Music Wire
Number of Coils: 6.25
Package Quantity: 1
Width: 1.58 in
Height: 1.09 in
Depth: 9.09 in
!
