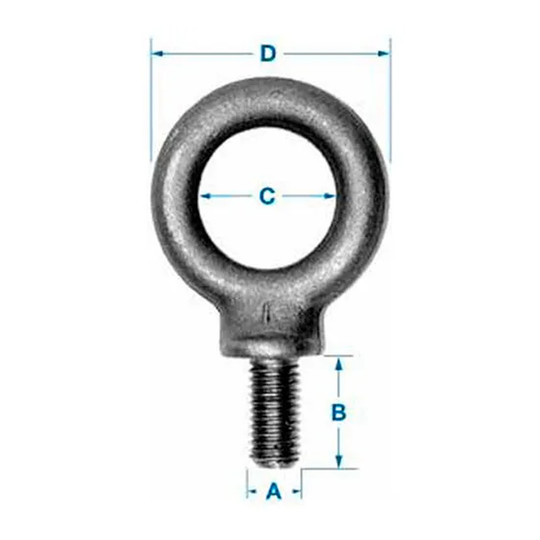

This metric shoulder eye bolt is for commercial buyers who need a threaded eye connection in an M30 x 3.50 fastening application. Its short-shank design provides an eye bolt option for installations requiring this thread size and pattern.
Constructed from drop-forged carbon steel with a self-colored finish, this eye bolt has a shoulder pattern and short shank. It features fully threaded ISO coarse 6G threads in an M30 x 3.50 size and is made in the USA.
Key Features:
Choose this eye bolt when your application calls for a short-shank, shoulder-pattern fastener with M30 x 3.50 ISO coarse threads.
| Country of Origin: | Made in USA |
| Material: | Steel |
| Product Depth: | 9" |
| Product Height: | 7" |
| Product Type: | Eye Bolts |
| Product Width: | 9" |
| Quantity Included: | 1 |
| Shipping Weight: | 4.66 lbs |
| Manufacturer Part Number: | M30-A |
| Eye Inside Dimension: | 55mm |
| Eye Outside Dimension: | 112.7mm |
| Rated Weight Capacity: | 14080 lbs |
| Shank Length: | 60mm in |
| Thread Size: | M30 x 3.50 in |
| Brand: | Ken Forging |
| Manufacturers Part Number: | M30-A |
| Pattern: | Shoulder |
| Width: | 9.00 in |
| Height: | 7.00 in |
| Depth: | 9.00 in |
No additional information available.
