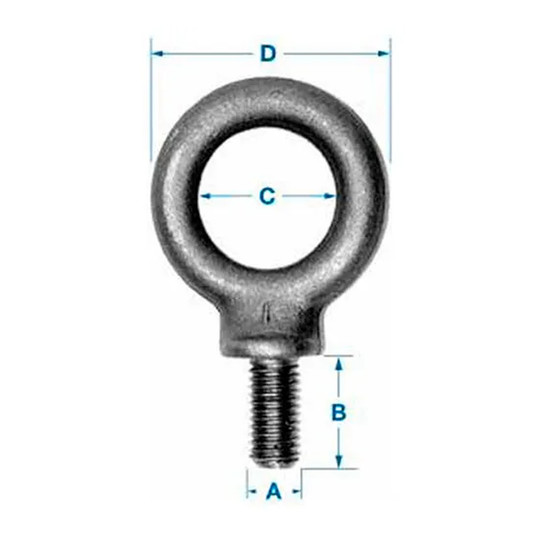

M24 x 3.00 metric shoulder eye bolt with short shank

Metric Shoulder Eye Bolt, M24 x 3.00, Short Shank

SKU:
WBB1958094
Model/MPN:
M24-A
Our Price:
$67.94
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: Made in USA
Material: Steel
Product Depth: 9
Product Height: 7
Product Type: Eye Bolts
Product Width: 9
Quantity Included: 1
Manufacturer Part Number: M24-A
Eye Inside Dimension: 46mm
Eye Outside Dimension: 90.4mm
Rated Weight Capacity: 8470 lbs
Shank Length: 48mm in
Thread Size: M24 x 3.00 in
Brand Name: Ken Forging
Manufacturers Part Number: M24-A
Pattern: Shoulder
Shipping Method: Parcel
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: Made in USA
Material: Steel
Product Depth: 9
Product Height: 7
Product Type: Eye Bolts
Product Width: 9
Quantity Included: 1
Manufacturer Part Number: M24-A
Eye Inside Dimension: 46mm
Eye Outside Dimension: 90.4mm
Rated Weight Capacity: 8470 lbs
Shank Length: 48mm in
Thread Size: M24 x 3.00 in
Brand Name: Ken Forging
Manufacturers Part Number: M24-A
Pattern: Shoulder
Shipping Method: Parcel

This metric shoulder eye bolt is a threaded fastening component for maintenance, fabrication, and assembly buyers who need an eye connection in an M24 x 3.00 threaded application. Its short-shank design provides a compact fastening option.

The eye bolt is drop forged from carbon steel with a self-colored finish. It has a shoulder-pattern design, a short shank, and fully threaded ISO coarse 6G threads in M24 x 3.00 size.

Key Features:

  • M24 x 3.00 Thread: Matches applications that require this metric thread size and pitch.
  • Shoulder Pattern: Provides the specified shoulder-style eye bolt configuration.
  • Short Shank: Offers a compact shank configuration for applicable assemblies.
  • Fully Threaded Shank: Provides threading along the full shank length.
  • Drop Forged Carbon Steel: Delivers carbon steel construction in a drop-forged eye bolt.
  • Sold Individually: Allows buyers to order the quantity needed.

Choose this shoulder eye bolt when your application calls for a short-shank, fully threaded M24 x 3.00 metric fastener with an eye connection.

Country of Origin: Made in USA
Material: Steel
Product Depth: 9
Product Height: 7
Product Type: Eye Bolts
Product Width: 9
Quantity Included: 1
Manufacturer Part Number: M24-A
Eye Inside Dimension: 46mm
Eye Outside Dimension: 90.4mm
Rated Weight Capacity: 8470 lbs
Shank Length: 48mm in
Thread Size: M24 x 3.00 in
Brand Name: Ken Forging
Manufacturers Part Number: M24-A
Pattern: Shoulder
Shipping Method: Parcel
Width: 9.00 in
Height: 7.00 in
Depth: 9.00 in
!
