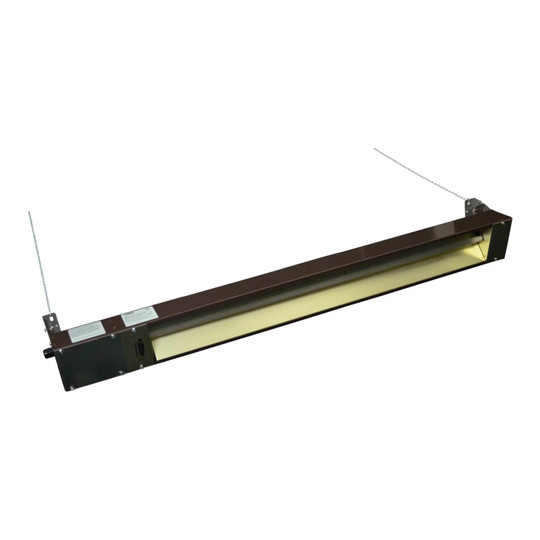

This infrared spot heater is designed for facility teams that need targeted heat in indoor or totally exposed outdoor areas. Its suspended installation supports spot-heating applications where warmth is needed in a defined area.
The 240V, 2000W heater uses a frosted quartz tube heating element and produces a 60° symmetric heat pattern. It has a high-temperature brown powder-coated finish, a gold anodized aluminum reflector and end caps, and measures 5.4 in. W x 44.4 in. D x 6.5 in. H. The unit is direct wire and includes six lead wires for field connection in the internal wiring compartment. Two 2 ft. mounting chains, four S-hooks, and surface-mount brackets are included; the brackets allow up to 45° of horizontal tilt adjustment.
Key Features:
- Quartz Heating Element: Provides infrared heat for focused spot-heating applications.
- 60° Heat Pattern: Helps direct heat across a symmetric coverage area.
- Indoor/Outdoor Installation: Supports suspended use in indoor and totally exposed outdoor locations.
- Adjustable Mounting: Included brackets permit up to 45° of horizontal tilt for positioning.
- Field-Wire Connection: Six lead wires support field connection within the internal wiring compartment.
- Included Hanging Hardware: Two mounting chains and four S-hooks are supplied for suspended installation.
Choose this 240V infrared heater for indoor or exposed outdoor spot heating where suspended or surface-mounted positioning is needed. Its included mounting hardware and adjustable brackets support installation flexibility.
| Color/Finish: |
Brown |
| Country of Origin: |
US |
| Material: |
Stainless Steel |
| Product Depth: |
5.4" |
| Product Height: |
6.5" |
| Product Type: |
Overhead Infrared Heaters |
| Product Width: |
44.4" |
| Quantity Included: |
1 |
| Shipping Weight: |
1E+1 lbs |
| Voltage: |
240 V |
| Warranty: |
1 yr |
| Manufacturer Part Number: |
OCH46240VE |
| Color: |
Brown |
| Length: |
44-3/8 in |
| Width: |
5-3/8 in |
| Height: |
6-1/2 in |
| Weight: |
10 lbs |
| Amperage: |
8.3 A |
| BTU: |
6826 BTU |
| Brand: |
TPI |
| Manufacturers Part Number: |
OCH46240VE |
| Phase: |
1 |
| Thermostat: |
Yes |
| Type: |
Quartz Infrared Space Heater |
| Wattage: |
2000 W |
| Watts High: |
2000 W |
| Certifications: |
cETLus |
| Width: |
5.40
in
|
| Height: |
6.50
in
|
| Depth: |
44.40
in
|
No additional information available.
