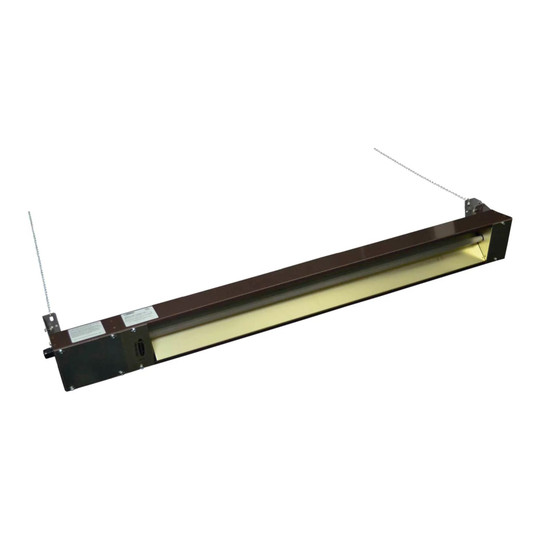

This overhead infrared spot heater provides targeted heat for commercial buyers who need warming in indoor or exposed outdoor areas. It is designed for suspended spot-heating applications and directs heat in a symmetric pattern.
The heater operates at 3000W and 277V and includes a frosted quartz tube heating element. Its brown high-temperature powder-coated finish is paired with a gold anodized aluminum reflector and end caps. The unit measures 55.4 inches long, 5.4 inches wide, and 6.5 inches high. It includes two 2-foot mounting chains, four S-hooks, and mounting brackets that allow up to 45-degree horizontal tilt adjustment. Six lead wires are supplied for field connection in the internal wiring compartment.
Key Features:
- Frosted quartz element: Provides the included infrared heating element for spot-heating operation.
- 60-degree heat pattern: Delivers a symmetric coverage pattern for targeted warming.
- Adjustable mounting brackets: Allow up to 45 degrees of horizontal tilt to help direct heat where needed.
- Included hanging hardware: Two mounting chains and four S-hooks support suspended installation.
- Brown high-temperature finish: Provides a finished exterior suited to the heater's operating environment.
Choose this 277V, 3000W infrared heater for suspended indoor or exposed outdoor spot-heating installations requiring adjustable heat direction and included mounting hardware.
| Color/Finish: |
Brown |
| Country of Origin: |
US |
| Material: |
Stainless Steel |
| Product Depth: |
5.4" |
| Product Height: |
6.5" |
| Product Type: |
Overhead Infrared Heaters |
| Product Width: |
55.4" |
| Quantity Included: |
1 |
| Shipping Weight: |
12 lbs |
| Voltage: |
277 V |
| Warranty: |
1 yr |
| Manufacturer Part Number: |
OCH57277VE |
| Color: |
Brown |
| Length: |
55-3/8 in |
| Width: |
5-3/8 in |
| Height: |
6-1/2 in |
| Weight: |
12 lbs |
| Amperage: |
10.8 A |
| BTU: |
10239 BTU |
| Brand: |
TPI |
| Manufacturers Part Number: |
OCH57277VE |
| Phase: |
1 |
| Thermostat: |
Yes |
| Type: |
Quartz Infrared Space Heater |
| Wattage: |
3000 W |
| Watts High: |
3000 W |
| Certifications: |
cETLus |
| Width: |
5.40
in
|
| Height: |
6.50
in
|
| Depth: |
55.40
in
|
No additional information available.
