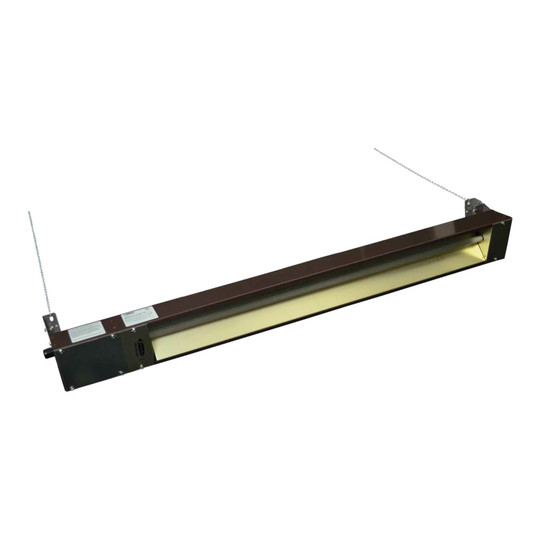

This overhead infrared spot heater provides targeted warmth for commercial users in indoor or exposed outdoor areas. It is designed for suspended installation and helps direct heat where it is needed.
The heater operates at 2000W and 277V and measures 44.4 in. long x 5.4 in. wide x 6.5 in. high. It uses an included frosted quartz tube heating element, a gold anodized aluminum reflector and end caps, and a high-temperature brown powder-coated finish. The unit provides a 60-degree symmetric heat pattern, includes two 2 ft. mounting chains and four S-hooks, and can be surface mounted with the supplied brackets, which allow up to 45 degrees of horizontal tilt adjustment. Six lead wires are supplied for field connection in the internal wiring compartment.
Key Features:
- Targeted infrared heat: Delivers a 60-degree symmetric heat pattern for focused spot-heating coverage.
- Indoor and exposed outdoor use: Supports suspended spot-heating applications in either setting.
- Adjustable mounting option: Supplied surface-mount brackets allow up to 45 degrees of horizontal tilt adjustment to help aim the heat.
- Included hanging hardware: Two 2 ft. mounting chains and four S-hooks are included for suspended installation.
- Quartz tube element: Includes a frosted quartz tube heating element for the heater's infrared operation.
Choose this 277V overhead infrared heater for targeted indoor or exposed outdoor spot heating where suspended or adjustable surface mounting suits the installation.
| Color/Finish: |
Brown |
| Country of Origin: |
US |
| Material: |
Stainless Steel |
| Product Depth: |
5.4" |
| Product Height: |
6.5" |
| Product Type: |
Overhead Infrared Heaters |
| Product Width: |
44.4" |
| Quantity Included: |
1 |
| Shipping Weight: |
1E+1 lbs |
| Voltage: |
277 V |
| Warranty: |
1 yr |
| Manufacturer Part Number: |
OCH46277VE |
| Color: |
Brown |
| Length: |
44-3/8 in |
| Width: |
5-3/8 in |
| Height: |
6-1/2 in |
| Weight: |
10 lbs |
| Amperage: |
7.2 A |
| BTU: |
6826 BTU |
| Brand: |
TPI |
| Manufacturers Part Number: |
OCH46277VE |
| Phase: |
1 |
| Type: |
Quartz Infrared Space Heater |
| Wattage: |
2000 W |
| Watts High: |
2000 W |
| Certifications: |
cETLus |
| Width: |
5.40
in
|
| Height: |
6.50
in
|
| Depth: |
44.40
in
|
No additional information available.
