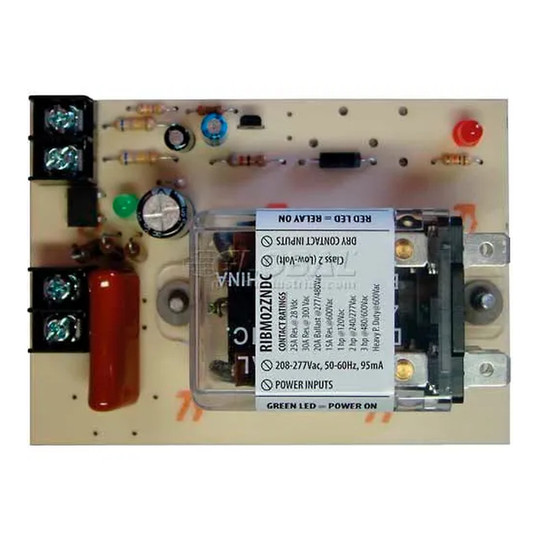

Dry Contact Input Relay, 208-277 VAC, 30A DPDT

This dry contact input relay is for electrical and control-system installers connecting thermostats, switches, other relays, or solid-state switches. It uses a closed dry-contact input to activate the relay, helping control a separate power or low-voltage load.

The relay operates on 208-277 VAC and has 30A DPDT contacts. It provides the low-voltage Class 2 power needed for activation through the dry-contact input. Input power may be supplied on a separate wire pair with the controller output or from a local source near the relay. The relay contacts are isolated from both the input power and dry-contact input. Overall dimensions are 4 in. wide x 2.875 in. deep x 1.75 in. high.

Key Features:

• Dry-contact activation: Allows the relay to be triggered by compatible dry-contact control devices.
• Self-powered Class 2 input: Provides the low-voltage power needed to activate the relay when the dry contact closes.
• Isolated relay contacts: Supports wiring the output separately from the input power and control input.
• DPDT, 30A contacts: Provides two-pole, double-throw switching capability for connected loads.

Choose this relay for control applications that need dry-contact activation, isolated output contacts, and 208-277 VAC operation in a compact panel-mounted format.
