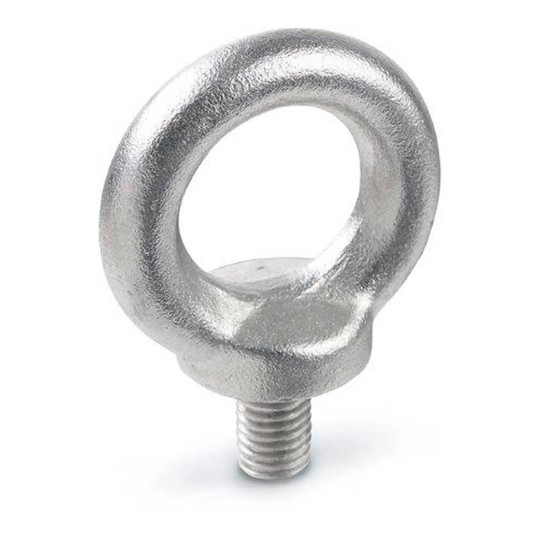

This DIN 580 lifting eye bolt is a threaded fastening component for commercial users who need a ring-style attachment point in lifting assemblies. Its threaded stem is designed to seat fully against the mounting surface.
Constructed of 304 stainless steel with a silver finish, this eye bolt has an M24 threaded stem. The ring measures 3-9/16 inches high and 13/16 inch thick. Complete stem-to-surface contact is required to achieve the maximum load.
Key Features:
Choose this M24 DIN 580 eye bolt when your application calls for a 304 stainless steel threaded lifting eye with a 3-9/16 inch ring height.
| Country of Origin: | Import |
| Material: | 304 Stainless Steel, Drop-Forged |
| Product Depth: | 6" |
| Product Height: | 4" |
| Product Type: | Eye Bolts |
| Product Width: | 6" |
| Quantity Included: | 1 |
| Shipping Weight: | 19 lbs |
| Manufacturer Part Number: | 580-M24-NI |
| Eye Inside Dimension: | 2" |
| Eye Outside Dimension: | 3-9/16" |
| Safe Working Load: | 4047lbs |
| Shank Diameter & Thread: | M24 |
| Shank Length: | 30mm in |
| Thread Length: | 1-7/16 in |
| Brand: | J.W. Winco |
| Finish: | Matte |
| Manufacturers Part Number: | 580-M24-NI |
| Package Quantity: | 1 |
| Pattern: | Shoulder |
| Width: | 6.00 in |
| Height: | 4.00 in |
| Depth: | 6.00 in |
