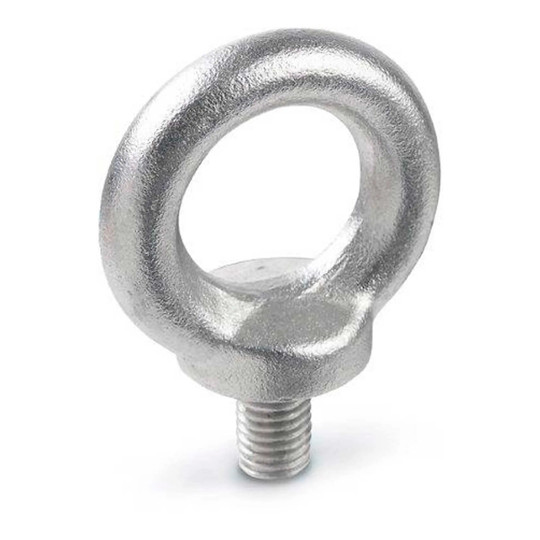

This M10 lifting eye bolt gives maintenance and fabrication teams a threaded attachment point for lifting applications. Its shoulder-style eye provides a ring for connecting compatible lifting hardware where a secure, fully seated installation is needed.
Constructed of 304 stainless steel, this DIN 580 eye bolt has a threaded stem and a silver finish. The ring measures 1-3/4 inches high and 3/8 inch thick, with a listed length of 11/16 inch. The threaded stem must make complete contact with the mounting surface to achieve maximum load.
Key Features:
Choose this DIN 580 M10 lifting eye bolt when your application calls for a stainless steel, shoulder-style eye bolt with a fully contacting threaded stem.
| Country of Origin: | Import |
| Material: | 304 Stainless Steel, Drop-Forged |
| Product Depth: | 6 |
| Product Height: | 4 |
| Product Type: | Eye Bolts |
| Product Width: | 6 |
| Quantity Included: | 1 |
| Manufacturer Part Number: | 580-M10-NI |
| Eye Inside Dimension: | 1" |
| Eye Outside Dimension: | 1-3/4" |
| Safe Working Load: | 517lbs |
| Shank Diameter & Thread: | M10 |
| Shank Length: | 17mm in |
| Thread Length: | 11/16 in |
| Brand Name: | J.W. Winco |
| Finish: | Matte |
| Manufacturers Part Number: | 580-M10-NI |
| Package Quantity: | 1 |
| Pattern: | Shoulder |
| Shipping Method: | Parcel |
| Width: | 6.00 in |
| Height: | 4.00 in |
| Depth: | 6.00 in |
