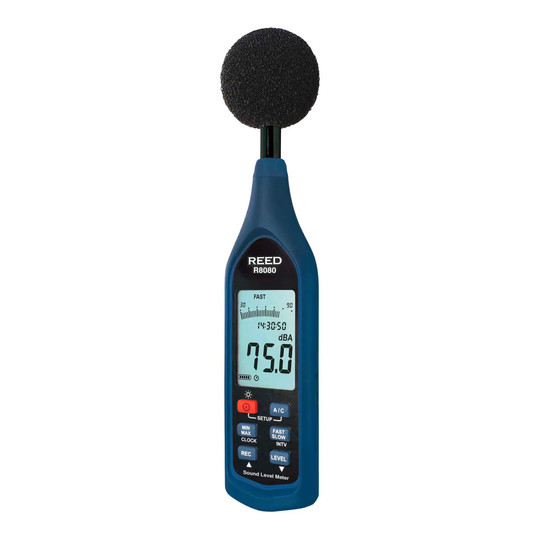

Data Logging Sound Level Meter with Bargraph Display

This data logging sound level meter helps environmental testing and inspection professionals measure and document sound levels. It records readings to internal memory with time and date stamps, supporting sound monitoring and later review of recorded results.

The meter offers triple-range measurement with a 60 dB dynamic range, ±1.4 dB accuracy, and Type 2 standards compliance. Select A or C frequency weighting and fast or slow time weighting, choose sampling intervals from 1 to 60 seconds, and record up to 64,000 data points. A backlit LCD, digital analog bargraph, Min/Max hold, auto shutoff, tripod mount, and PC interface software support operation and monitoring. A windshield ball, USB cable, PC software, hard carrying case, and batteries are provided.

Key Features:

• Internal data logging: Records up to 64,000 readings for documented sound-level review.
• Time and date stamps: Helps identify when each recorded measurement was taken.
• Selectable sampling: Allows intervals from 1 to 60 seconds to suit the monitoring task.
• A and C weighting: Provides frequency-weighting options for different sound measurement needs.
• Backlit bargraph display: Makes live readings easier to view while showing a digital analog bargraph.
• Tripod mount: Supports stable placement for extended monitoring.

Choose this sound level meter when you need recorded sound measurements, adjustable sampling, and PC-based tracking in a portable instrument with a carrying case.
