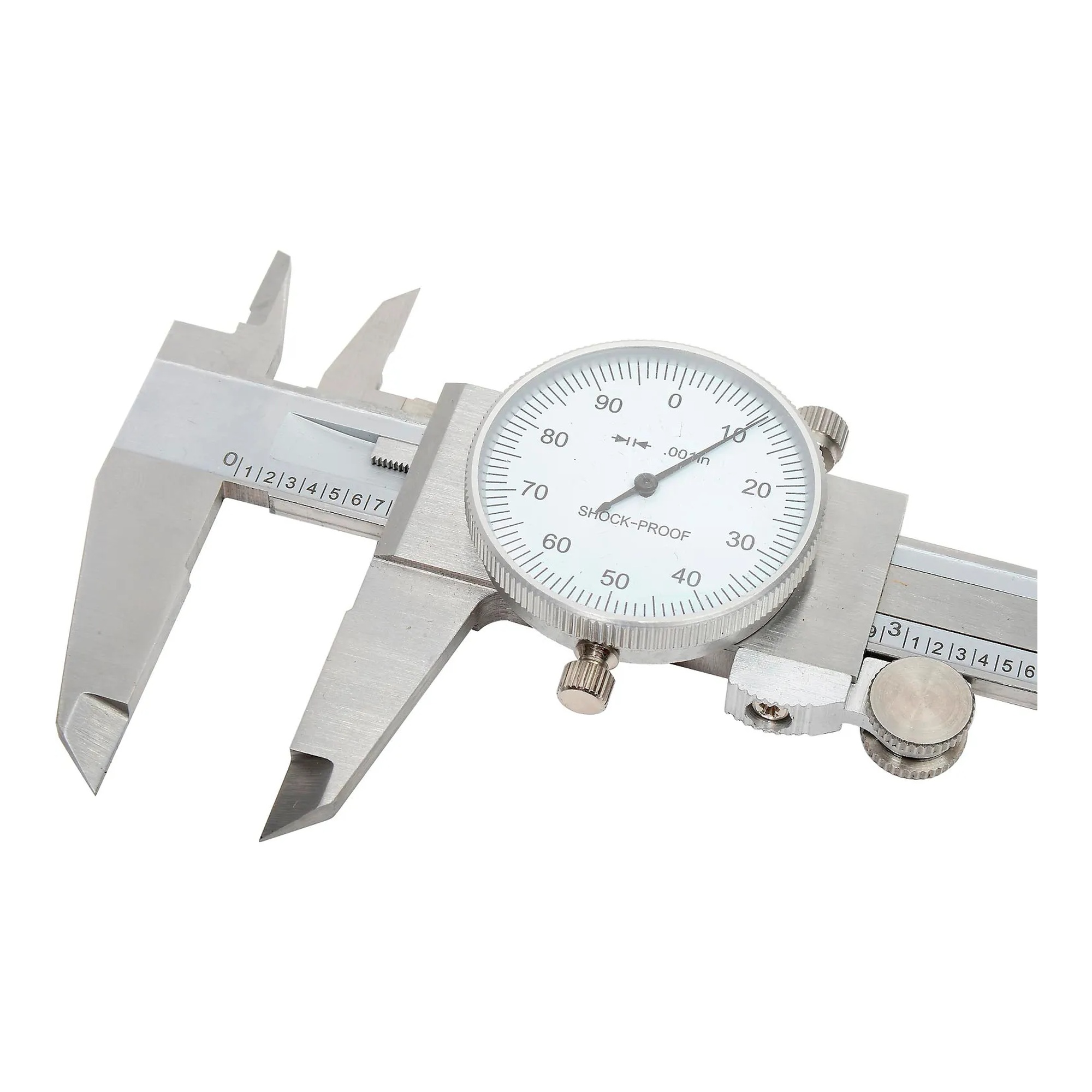

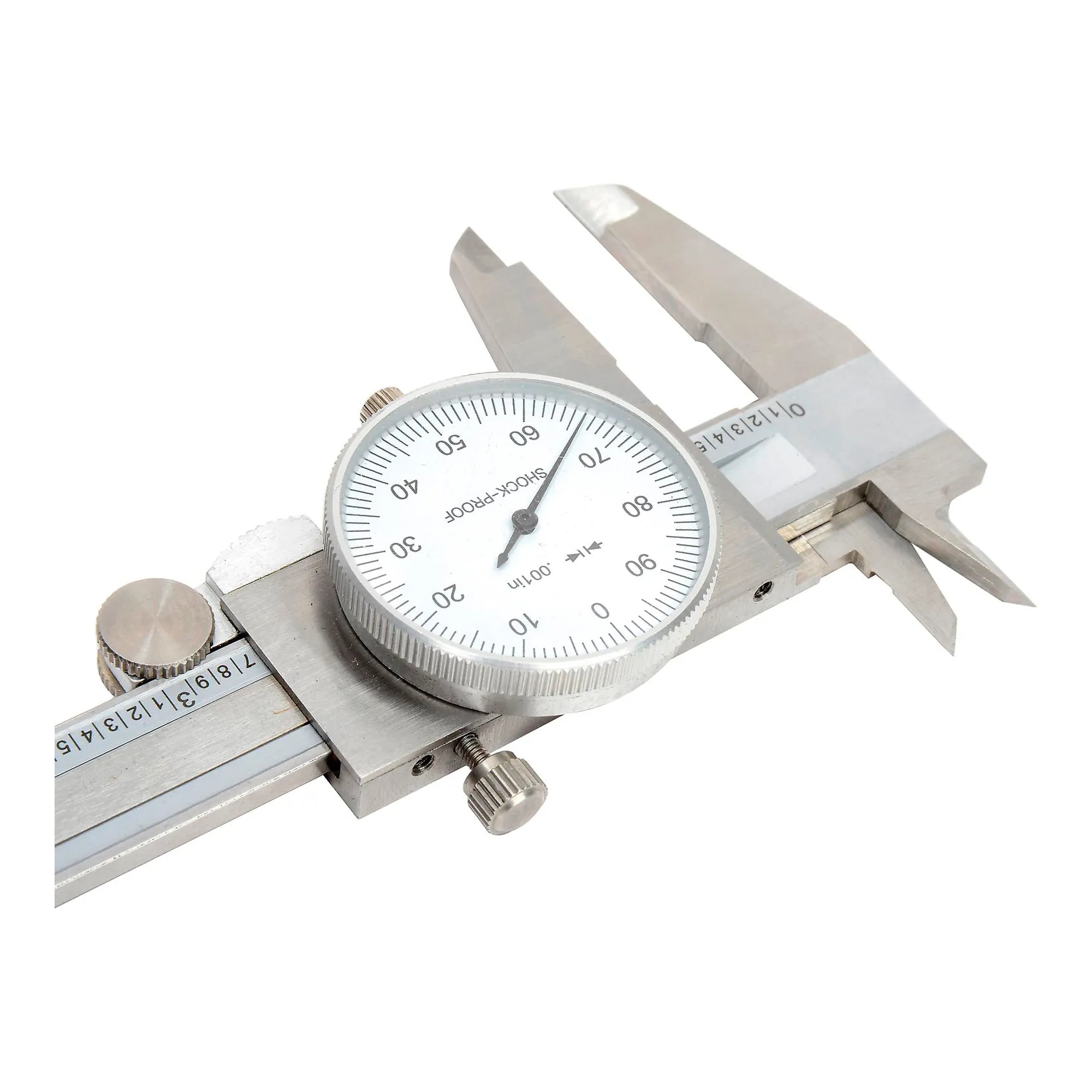

This 6-inch precision dial caliper helps machinists, inspectors, and shop professionals check part measurements during layout and inspection work. Its four-way measuring capability supports outside, inside, depth, and step measurements.
The silver-finish steel caliper has a white adjustable dial, a positive lock, and a covered rack designed to help protect the mechanism from chips. It measures 9.75 inches long by 3.5 inches wide by 1 inch high and includes a fitted case.
Key Features:
Choose this precision dial caliper for shop and inspection tasks that require outside, inside, depth, or step measurements in a compact 6-inch format.
| Color/Finish: | Silver |
| Country of Origin: | CN |
| Material: | Steel |
| Product Depth: | 3.5 |
| Product Height: | 1 |
| Product Type: | Calipers |
| Product Width: | 9.75 |
| Quantity Included: | 1 |
| Manufacturer Part Number: | 41000202 |
| Color: | Silver |
| Max Measurement: | 6 in / 150 mm |
| Metric or Inch: | Inch in |
| Min Inside Measurement: | 0 |
| Min Measurement: | 0 |
| Resolution/Graduation: | 0.001 |
| Accuracy (+/-): | 0.001 in |
| Case: | Yes |
| Data Output: | No |
| Dial Case Color Family: | Silver |
| Dial Face Color Family: | White |
| Digital: | No |
| Fraction Option: | No |
| Frame Material: | Stainless Steel |
| IP Rating: | None |
| Inside Diameter Contact Point Material: | Stainless Steel |
| Manufacturers Part Number: | 4100-0202 |
| Measuring Face Material: | Stainless Steel |
| Mechanical Or Digital: | Mechanical |
| Power Source: | None |
| Range per Revolution: | 0.1 |
| Style: | General Purpose |
| Thumb Roller: | Yes |
| Type: | Caliper |
| Long Form Calibration Certificate Included: | No |
| Shipping Method: | Parcel |
| Width: | 3.50 in |
| Height: | 1.00 in |
| Depth: | 9.75 in |
