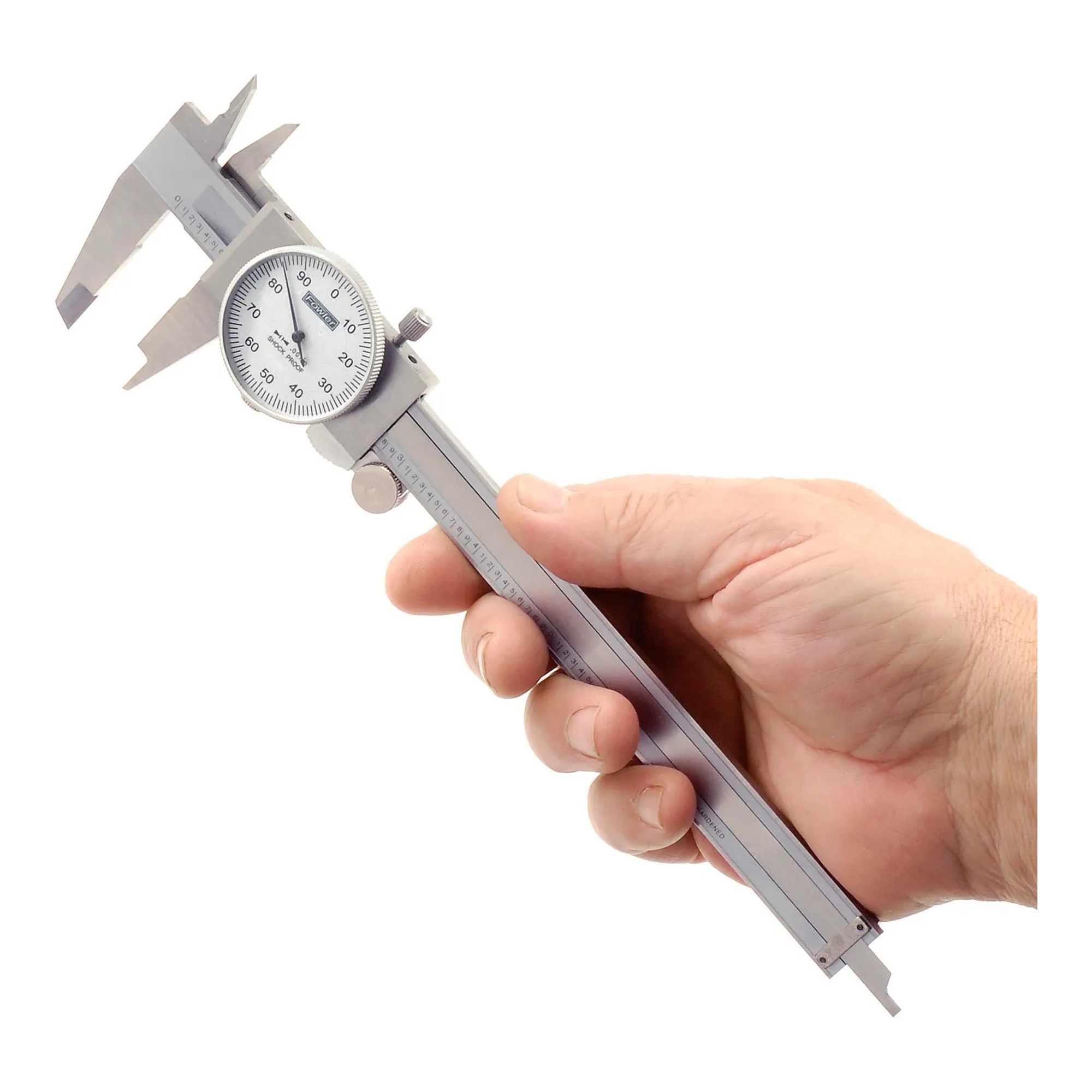

This dial caliper is a precision measuring tool for inspectors, machinists, and shop professionals who need to check dimensions on workpieces. Its four-way measuring capability supports a range of common measurement tasks.

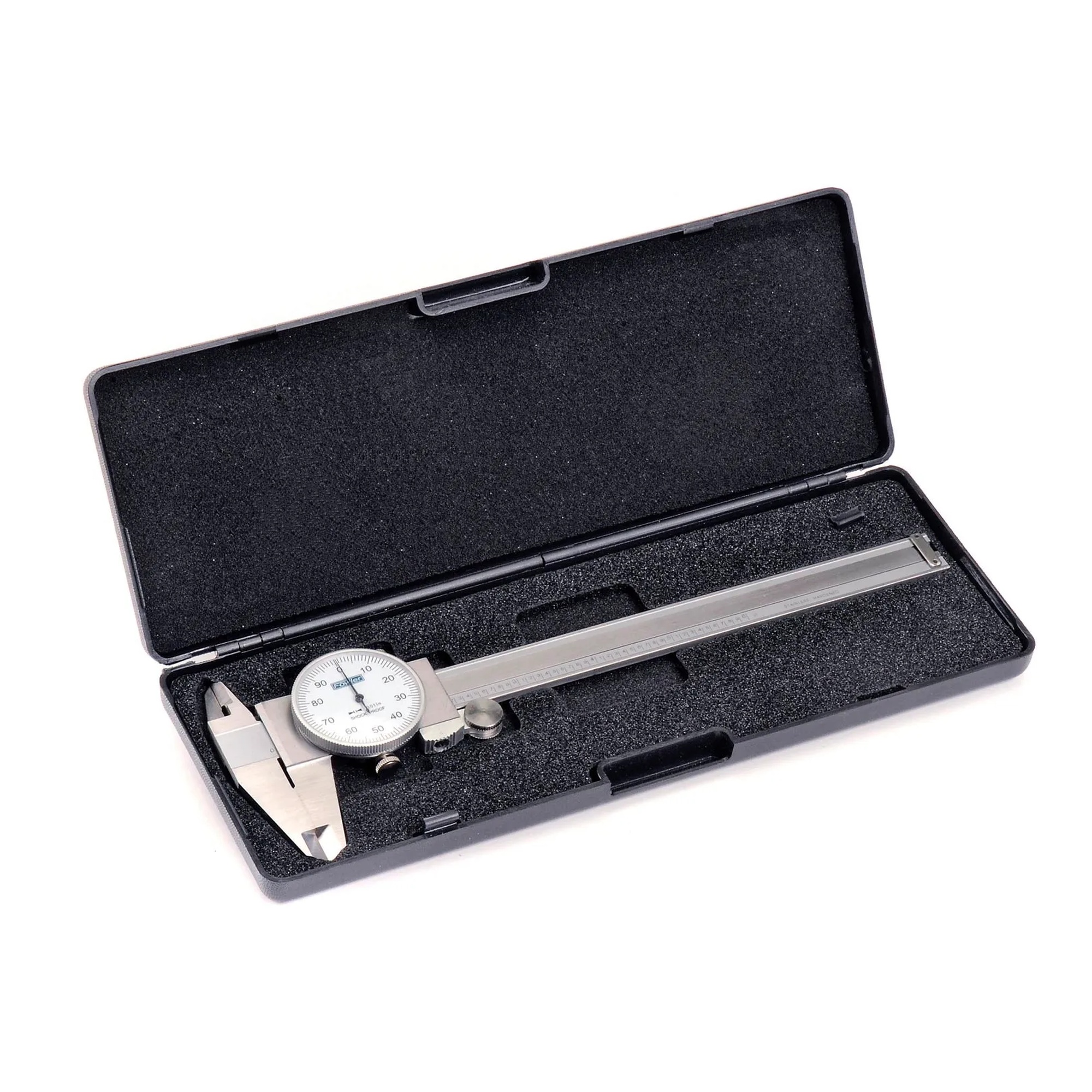

The caliper measures from 0 to 6 inches and has a white dial with 0.100 inch per revolution. It features 0.001 inch dial graduations and ±0.001 inch accuracy. A covered, hardened stainless steel rack supports the sliding mechanism, and a shop-hardened case is supplied.
Key Features:
A practical choice for professional measurement tasks requiring a 0–6 inch dial caliper with fine graduations and a white dial.
| Color/Finish: | Silver |
| Country of Origin: | CN |
| Material: | Stainless Steel |
| Product Depth: | 3.5 |
| Product Height: | 1.14 |
| Product Type: | Calipers |
| Product Width: | 9.75 |
| Quantity Included: | 1 |
| Manufacturer Part Number: | 52-008-007-01 |
| Color: | Silver |
| Max Measurement: | 6 in / 150 mm |
| Metric or Inch: | Inch in |
| Min Inside Measurement: | 0 |
| Min Measurement: | 0 |
| Min Outside Diameter: | None in |
| Resolution/Graduation: | 0.001 |
| Accuracy (+/-): | 0.001 in |
| Case: | Yes |
| Data Output: | No |
| Dial Case Color Family: | Silver |
| Dial Face Color Family: | White |
| Digital: | No |
| Fraction Option: | No |
| Frame Material: | Stainless Steel |
| IP Rating: | None |
| Inside Diameter Contact Point Material: | Stainless Steel |
| Manufacturers Part Number: | 52-008-007-01 |
| Measuring Face Material: | Stainless Steel |
| Mechanical Or Digital: | Mechanical |
| Power Source: | None |
| Range per Revolution: | 0.1 |
| Style: | General Purpose |
| Thumb Roller: | Yes |
| Type: | Caliper |
| Long Form Calibration Certificate Included: | No |
| Shipping Method: | Parcel |
| Width: | 3.50 in |
| Height: | 1.14 in |
| Depth: | 9.75 in |
No additional information available.
