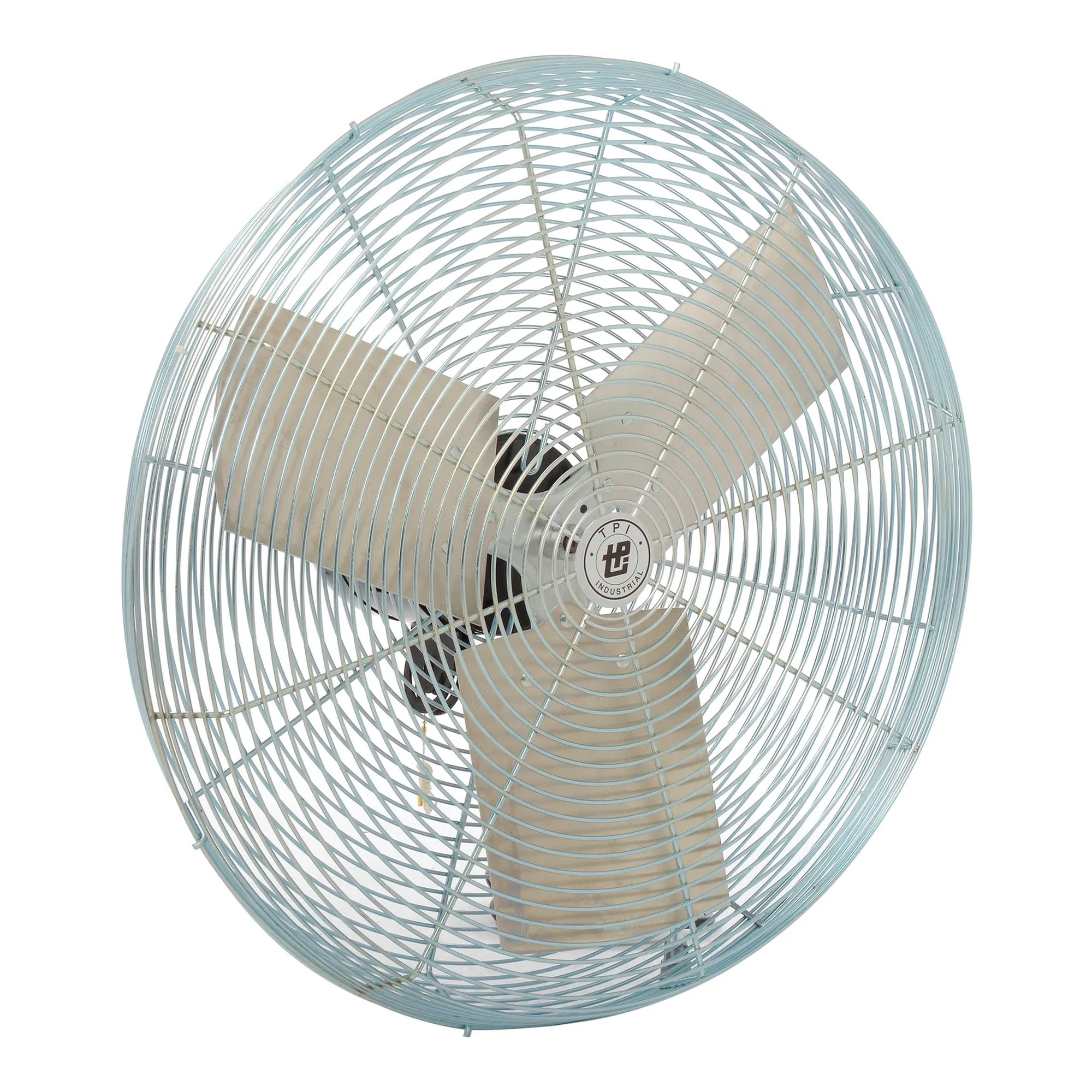

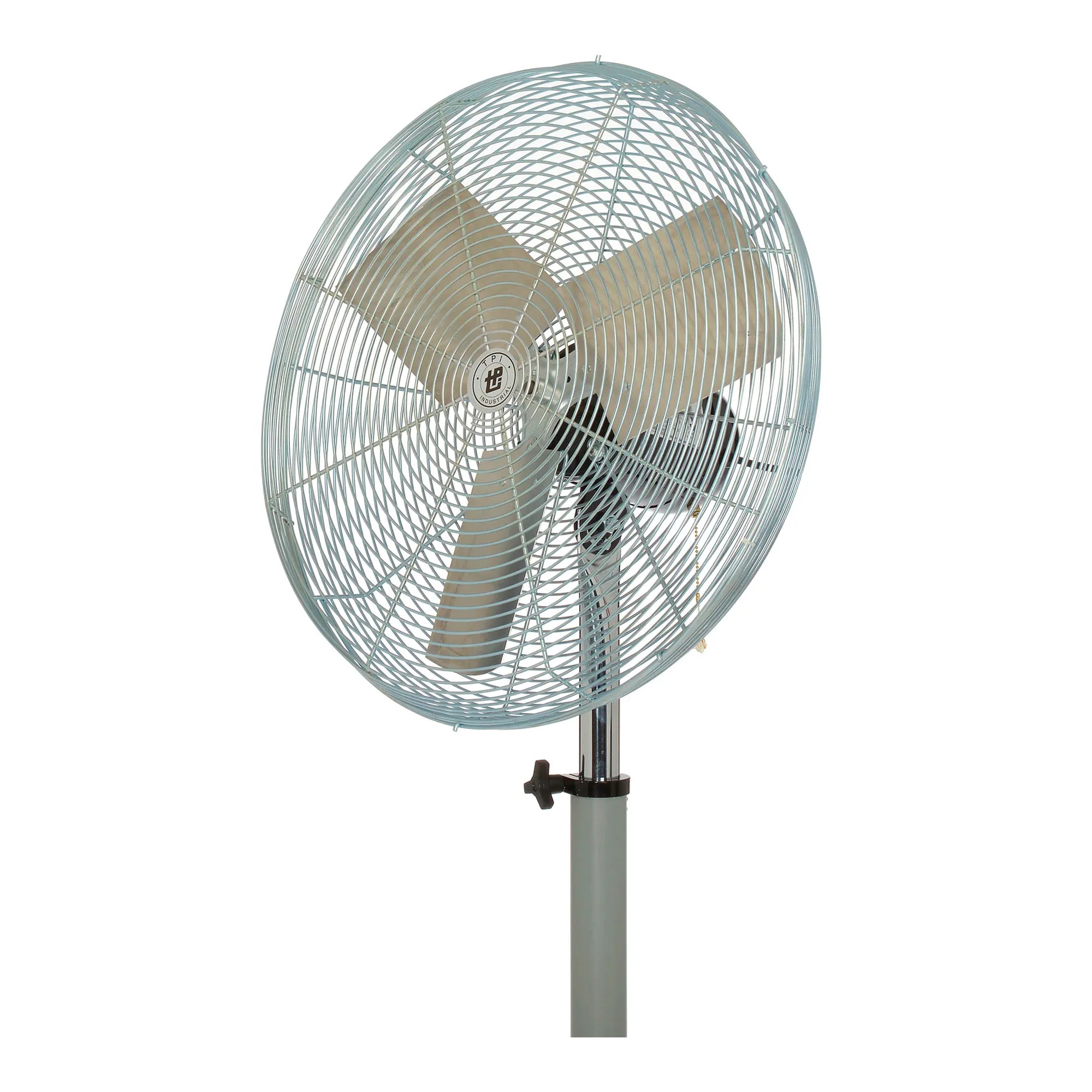

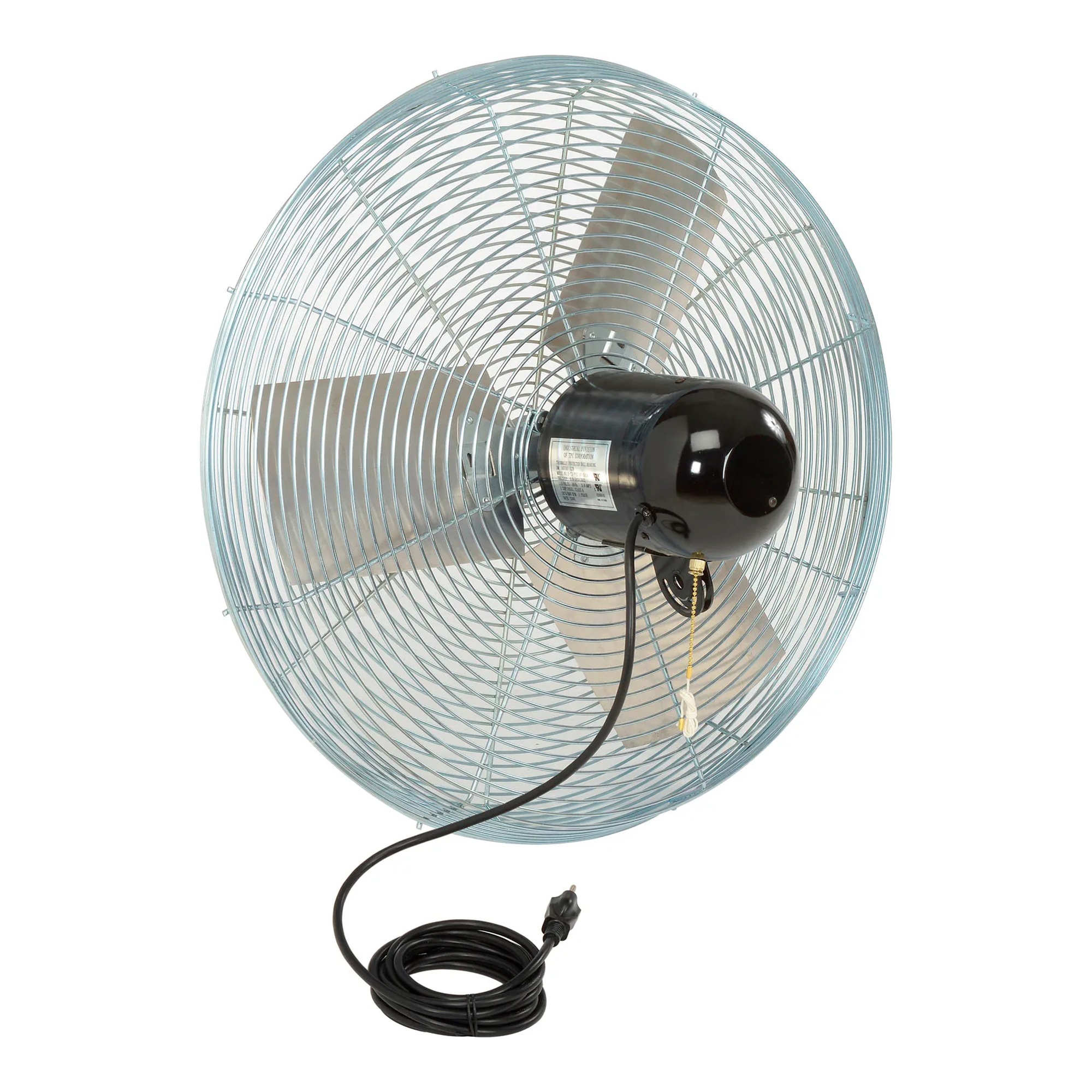

This 24-inch industrial circulator fan head is for facilities teams and commercial users who need directed air movement from a mounted fan assembly. It installs on a compatible industrial mount, sold separately, and provides non-oscillating airflow for work areas and other commercial spaces.
The fan head has a 1/3 HP, single-phase motor with permanently lubricated, totally enclosed ball bearings and a permanent split capacitor. Two speed settings provide airflow up to 7,000 CFM. Its three aluminum paddle blades connect to a steel hub and spider assembly. The unit measures 28 inches wide, 28 inches deep, and 16 inches high, and includes a 12-foot, three-conductor SJT cord with a three-prong plug for grounded outlets.
Key Features:
Choose this non-oscillating fan head when you need a two-speed, 115V circulator head for installation on a compatible industrial mount.
| Airflow (CFM): | 4,300 CFM |
| Color/Finish: | Gray |
| Country of Origin: | US |
| Material: | Aluminum |
| Motor: | 1/3 HP |
| Phase: | 1 |
| Product Depth: | 28" |
| Product Height: | 16" |
| Product Type: | Fan Heads |
| Product Width: | 28" |
| Quantity Included: | 1 |
| Shipping Weight: | 35.75 lbs |
| Voltage: | 120 V |
| Manufacturer Part Number: | IHP24H |
| Color: | Gray |
| Depth: | 14-1/2 in |
| Weight: | 40 lbs |
| Cord Length: | 12 ft |
| Diameter: | 27 in |
| Fan Diameter: | 24 in |
| Amperage: | 2.8 A |
| Assembly Required: | No |
| Brand: | TPI |
| CFM: | 3900/4300 CFM |
| Features: | Pull Chain Switch |
| Hertz: | 60 Hz |
| Horsepower: | 1/3 HP |
| Manufacturers Part Number: | IHP24H |
| Motor Type: | Totally Enclosed Air Over (TEAO) |
| Number of Blades: | 3 |
| Number of Speeds: | 2 |
| Oscillating/Non Oscillating: | Non-Oscillating |
| Power Cord Type: | SJT |
| RPM: | 800/1100 rpm |
| Type: | Industrial |
| Warranty: | 3 yr |
| Certifications: | ETL, cETL Listed |
| Width: | 28.00 in |
| Height: | 16.00 in |
| Depth: | 28.00 in |
No additional information available.
