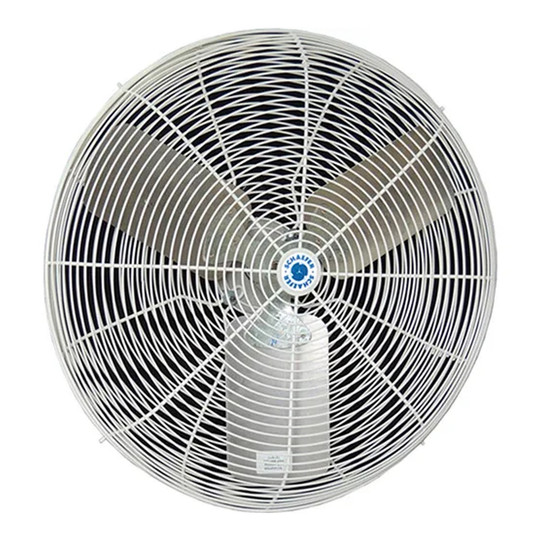

This 24-inch circulation fan head is designed for commercial, industrial, and agricultural users who need to move air for cooling and circulation. Its versatile mounting options support installation on a ceiling, wall, pedestal, or cart.
The fan operates on 115V power and provides 5,280 CFM of airflow. It uses a maintenance-free, thermally protected two-speed direct-drive motor with matched blades. Powder-coated steel guards provide corrosion resistance, and the fan measures 27 inches wide by 13 inches deep by 27 inches high. It draws as little as 1.6 amps.
Key Features:
Choose this 24-inch fan head for 115V air circulation where flexible mounting and two-speed operation are needed.
| Airflow (CFM): | 5,280 CFM |
| Color/Finish: | White |
| Configuration: | Direct Drive |
| Country of Origin: | US |
| Material: | Steel |
| Product Depth: | 13" |
| Product Height: | 27" |
| Product Type: | Fan Heads |
| Product Width: | 27" |
| Quantity Included: | 1 |
| Resistance: | Corrosion/Rust Resistant |
| Shipping Weight: | 34 lbs |
| Voltage: | 115 V |
| Warranty: | 2 yr |
| Manufacturer Part Number: | 24CFO |
| Color: | White |
| Length: | 26-1/2 in |
| Width: | 26-1/2 in |
| Height: | 12 in |
| Weight: | 34 lbs |
| Cord Length: | 10 ft |
| Fan Diameter: | 26-1/2 in |
| Amperage: | 1.6 / 2.9 A |
| Assembly Required: | No |
| Blade Type: | Aluminum |
| Brand: | Schaefer |
| CFM: | 3850/5280 CFM |
| Fan Type: | Industrial |
| Hertz: | 60 Hz |
| Horsepower: | 1/4 HP |
| Manufacturers Part Number: | 24CFO |
| Motor Type: | Totally Enclosed Air Over (TEAO) |
| Mounting Location: | Ceiling or Wall |
| Number of Blades: | 3 |
| Number of Speeds: | 2 |
| Oscillating/Non Oscillating: | Non-Oscillating |
| Phase: | 1 |
| RPM: | 800/1100 rpm |
| Certifications: | OSHA Compliant |
| Width: | 13.00 in |
| Height: | 27.00 in |
| Depth: | 27.00 in |
