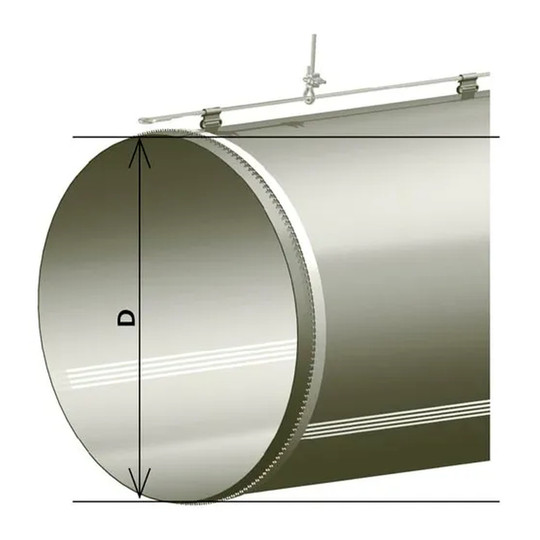

Gray 16-inch fabric duct straight section with vents

16-Inch Gray Fabric Duct Straight Section with Vents, 200 CFM

SKU:
WBB572205
Our Price:
$375.94
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Airflow (CFM): 200 CFM
Color/Finish: Gray
Country of Origin: DK
Product Depth: 15"
Product Height: 10"
Product Type: Fabric Ducts
Product Width: 23"
Quantity Included: 1
Shipping Weight: 4 lbs
Manufacturer Part Number: 450116730048
Color: Gray
Length: 10 ft
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Airflow (CFM): 200 CFM
Color/Finish: Gray
Country of Origin: DK
Product Depth: 15"
Product Height: 10"
Product Type: Fabric Ducts
Product Width: 23"
Quantity Included: 1
Shipping Weight: 4 lbs
Manufacturer Part Number: 450116730048
Color: Gray
Length: 10 ft

This gray fabric duct straight section is designed for HVAC installers and facility teams building a fabric duct run. It distributes air along its length through vent holes and connects with adjoining duct components to extend the system.

The 10-foot straight section has a 16-inch diameter and is sized for 200 CFM at 0.25 in. w.g. system static pressure. SonicFlow laser-cut holes run the length of the duct at the 4 and 8 o’clock positions. Built-in zippers connect it to the preceding and following components, while fabric loops provide attachment points for cable hooks. A complete run requires suspension hardware, an inlet section, and an end cap.

Key Features:

  • Laser-cut vent holes: Distributes air along the full length of the straight duct section.
  • Built-in zipper connections: Connects directly to adjacent duct components in the run.
  • 200 CFM sizing: Supports duct runs designed for 200 CFM at 0.25 in. w.g. system static pressure.
  • Fabric suspension loops: Provides attachment points for cable hooks when installing suspension hardware.
  • 10-foot straight length: Adds a continuous straight section to a compatible fabric duct layout.

Choose this 16-inch gray straight fabric duct section for a 200 CFM duct run that needs lengthwise air distribution, zipper-connected components, and cable-hook suspension points.

Airflow (CFM): 200 CFM
Color/Finish: Gray
Country of Origin: DK
Product Depth: 15"
Product Height: 10"
Product Type: Fabric Ducts
Product Width: 23"
Quantity Included: 1
Shipping Weight: 4 lbs
Manufacturer Part Number: 450116730048
Color: Gray
Length: 10 ft
Weight Capacity: 4 & 5 tons
Weight: 4 lbs
Diameter: 16 in
Static Pressure Loss @ 0.25" Wg: 200
Brand: Zip-A-Duct
Features: Machine Washable
Manufacturers Part Number: 450116730048
Material: Permeable Fabric
Max CFM per Diameter: 2000 CFM
Min CFM Per Diameter: 1201 CFM
Static Pressure Loss @ 0.50" Wg: 400
Type: Straight Sections
Certifications: UL Listed
Width: 15.00 in
Height: 10.00 in
Depth: 23.00 in
!
