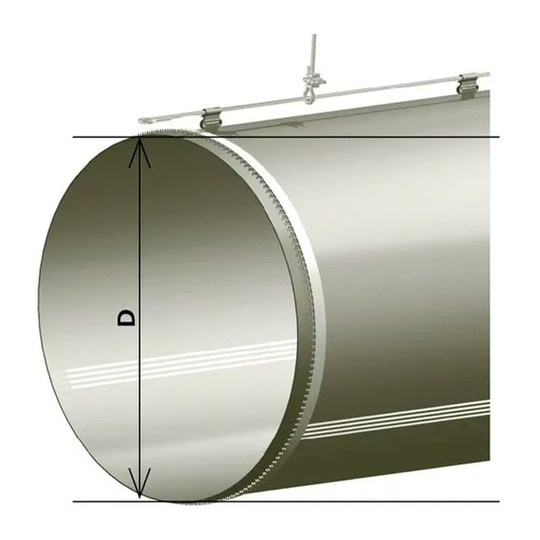

16 in. Gray Fabric Duct Straight Section with Vents, 400 CFM

This gray fabric duct straight section is for HVAC professionals and facility teams building a fabric duct run. It distributes airflow along a 10-foot section through laser-cut vents while connecting between adjacent duct components.

The 16-inch-diameter duct section is sized for 400 CFM at 0.25 in. w.g. system static pressure. SonicFlow laser-cut holes run the length of the section at the 4 and 8 o’clock positions. Built-in zippers connect it to the preceding and following components, and integrated fabric loops accept cable hooks. A complete run also requires suspension hardware, an inlet section, and an endcap.

Key Features:

• 10-foot straight section: Adds a continuous straight length to a compatible fabric duct run.
• Laser-cut vent holes: Provides airflow distribution along the length of the section.
• Built-in zipper connections: Joins to adjacent duct components without separate connection hardware.
• Fabric cable loops: Provides attachment points for cable hooks used with suspension hardware.
• 400 CFM sizing: Supports duct runs designed for 400 CFM at 0.25 in. w.g. system static pressure.

Choose this straight, vented fabric duct section when a 16-inch gray component is needed for a 400 CFM duct run. Pair it with the required inlet, endcap, suspension hardware, and compatible adjoining sections.

No additional information available.
