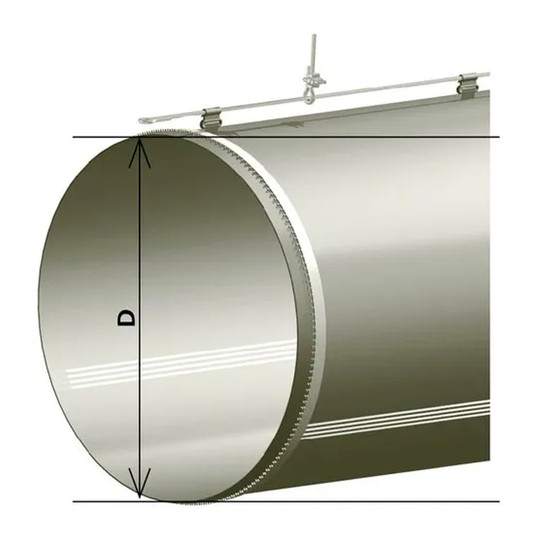

This gray fabric duct straight section helps HVAC installers extend a ventilated duct run. Its 10-foot length distributes airflow through openings along the section for systems designed around 250 CFM.
The 16-inch straight section is 10 feet long and features laser-cut holes positioned at 4 and 8 o’clock along its length. Built-in zippers connect it to adjoining duct components. It is sized for 250 CFM at 0.25 in. w.g. system static pressure and includes fabric loops for cable hooks. A complete duct run requires suspension hardware, an inlet section, and an endcap.
Key Features:
Choose this 10-foot gray straight section when building or extending a 16-inch fabric duct run with vented airflow distribution and zipper-connected components.
| Airflow (CFM): | 250 CFM |
| Color/Finish: | Gray |
| Country of Origin: | DK |
| Product Depth: | 15" |
| Product Height: | 10" |
| Product Type: | Fabric Ducts |
| Product Width: | 23" |
| Quantity Included: | 1 |
| Shipping Weight: | 4 lbs |
| Manufacturer Part Number: | 450116730063 |
| Color: | Gray |
| Length: | 10 ft |
| Weight Capacity: | 4 & 5 tons |
| Weight: | 4 lbs |
| Diameter: | 16 in |
| Static Pressure Loss @ 0.25" Wg: | 250 |
| Brand: | Zip-A-Duct |
| Features: | Machine Washable |
| Manufacturers Part Number: | 450116730063 |
| Material: | Permeable Fabric |
| Max CFM per Diameter: | 2000 CFM |
| Min CFM Per Diameter: | 1201 CFM |
| Static Pressure Loss @ 0.50" Wg: | 500 |
| Type: | Straight Sections |
| Certifications: | UL Listed |
| Width: | 15.00 in |
| Height: | 10.00 in |
| Depth: | 23.00 in |
