This 14-inch guard-mounted exhaust fan is designed for facilities that need low-pressure exhausting and cooling. It bolts directly to a wall to help move air from the space.

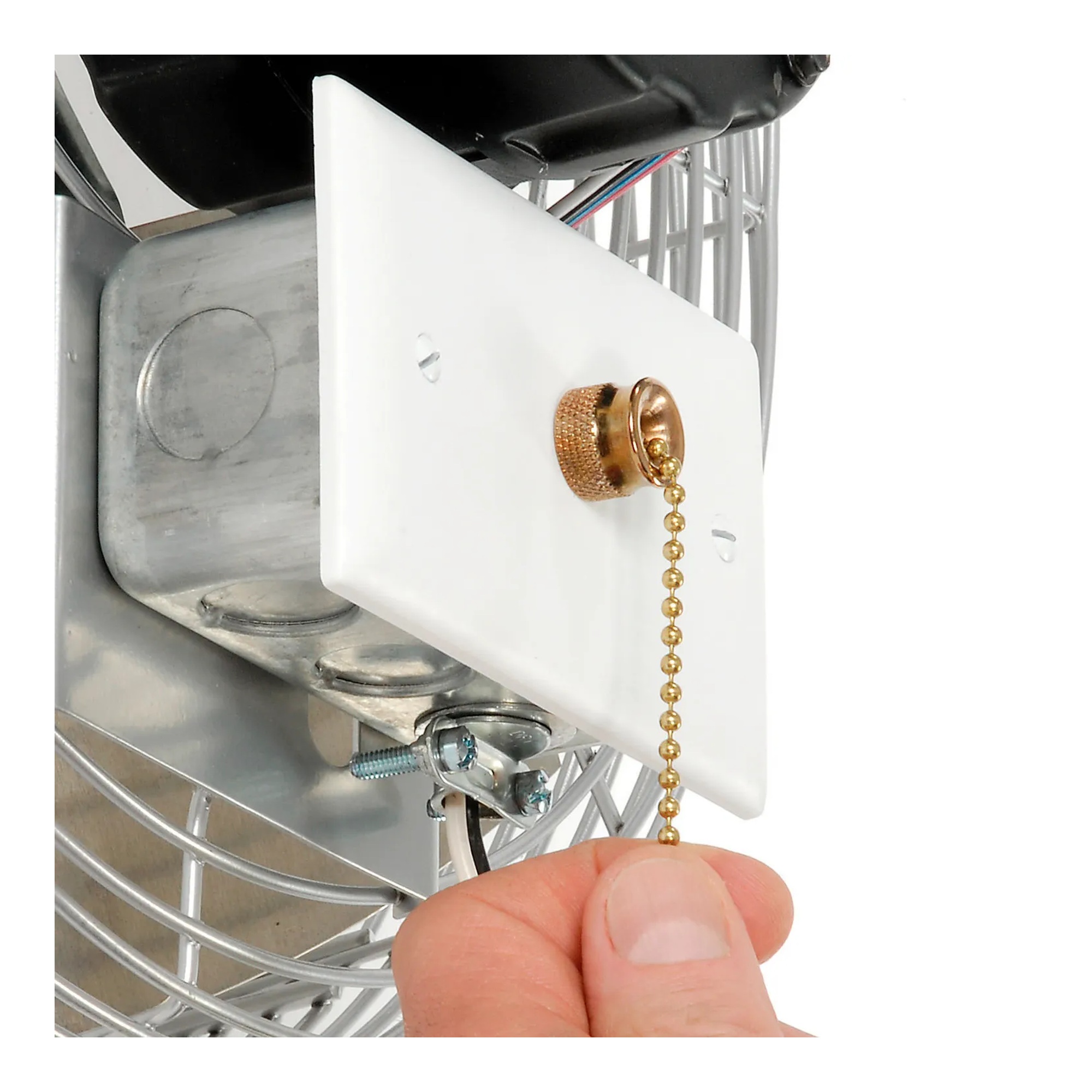

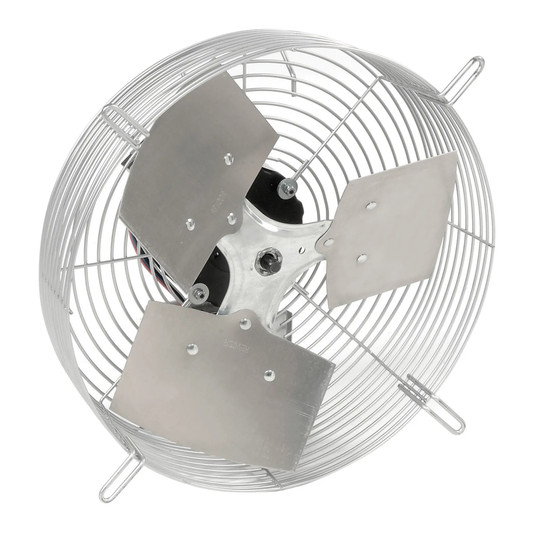

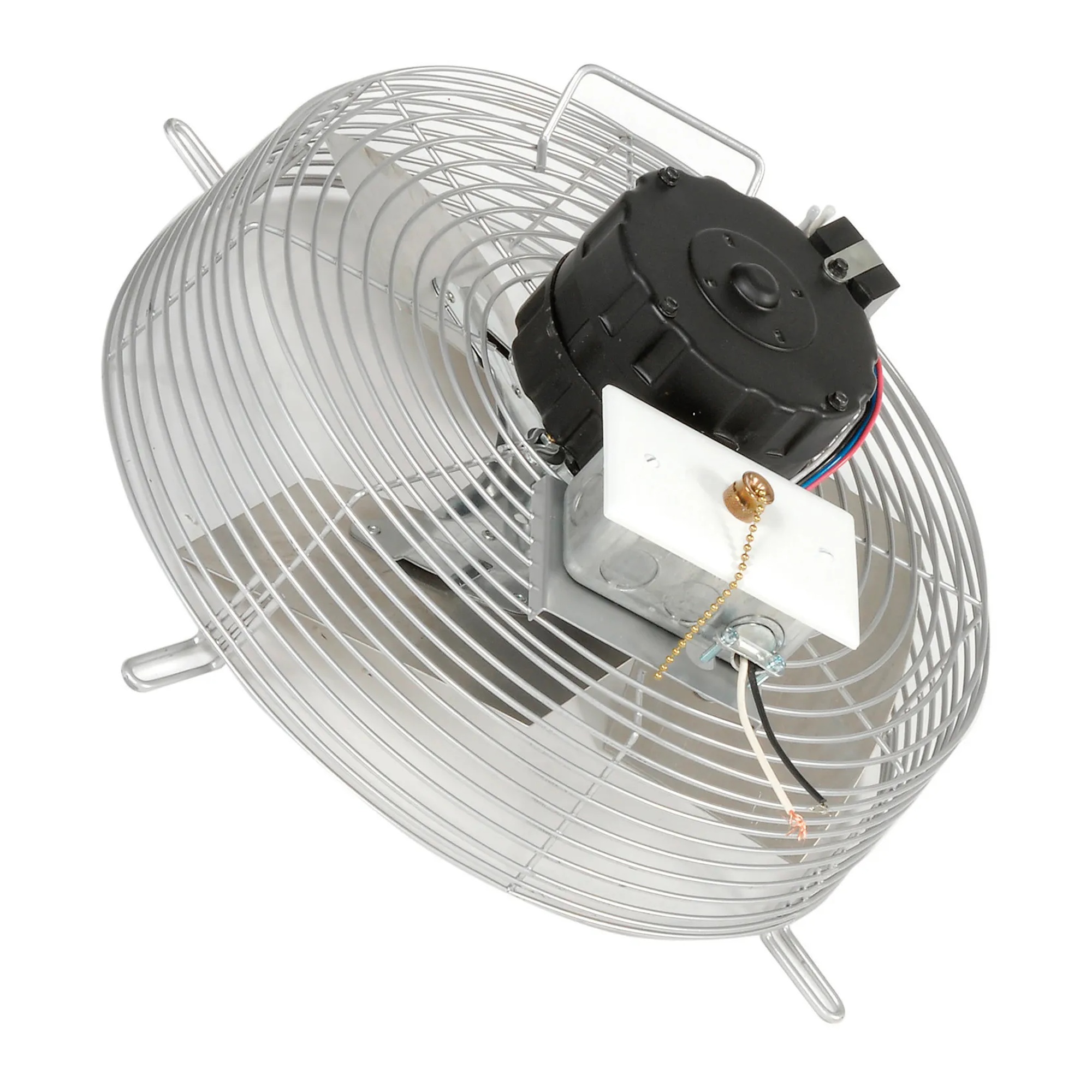

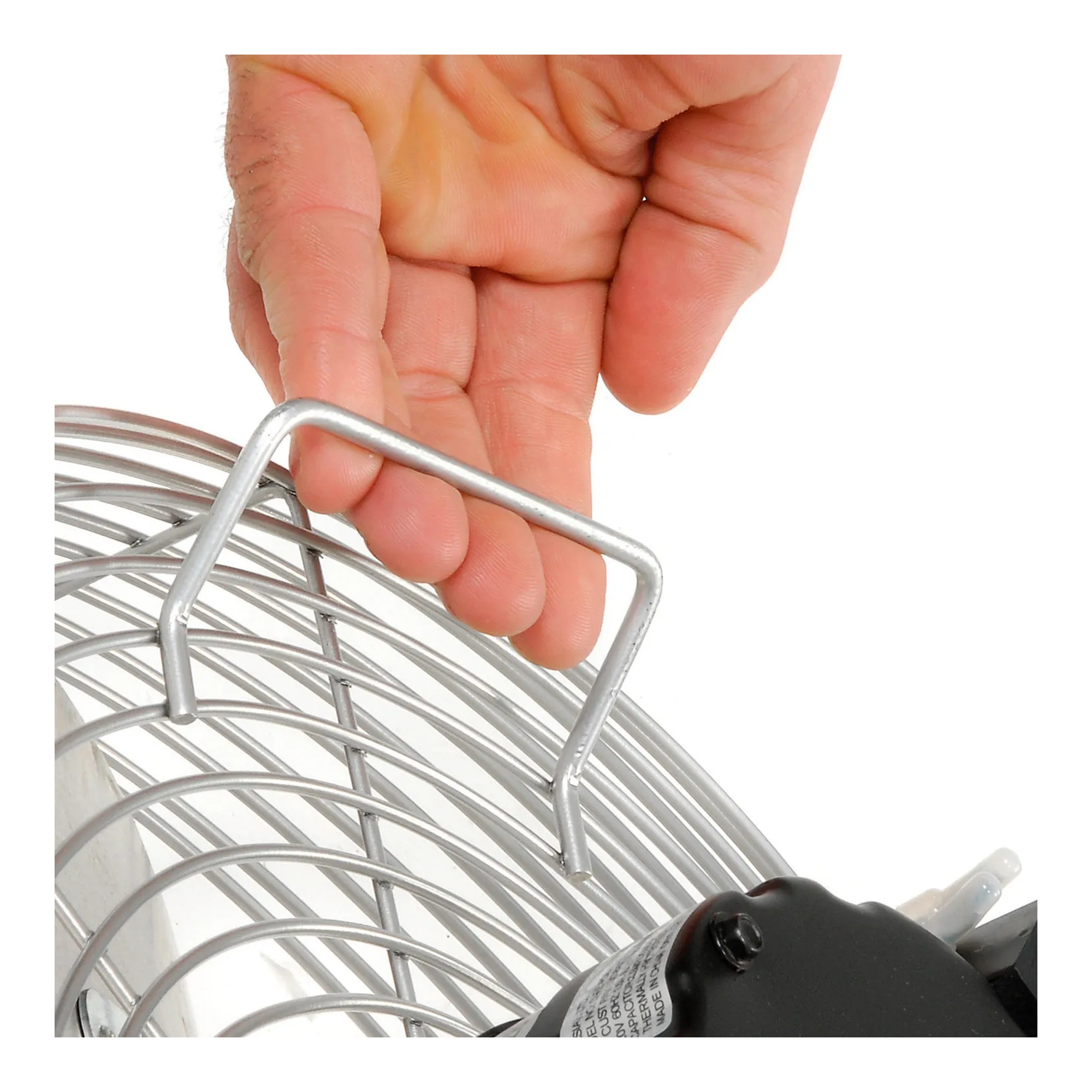

The direct-drive fan delivers 4,475 CFM and uses a 1/8 HP, 120V single-phase motor. Three aluminum blades are enclosed by steel spiral wire guards with built-in mounting holes. The totally enclosed, permanently lubricated motor operates by pull chain, and a junction box is included for direct wiring. Overall dimensions are 19 inches wide x 19 inches deep x 13 inches high. The rough-in opening should be 1/2 inch, plus or minus 5/16 inch, larger than the fan blade size. Optional wall shutters are available.
Key Features:
Choose this wall-mounted exhaust fan for low-pressure ventilation and cooling where a 14-inch fan with direct-drive operation and guarded blades fits the application.
| Airflow (CFM): | 4,475 CFM |
| Certifications: | UL |
| Configuration: | Direct Drive |
| Country of Origin: | US |
| Material: | Aluminum Blade / Steel Guards |
| Motor: | 1/8 HP |
| Phase: | 1 |
| Product Depth: | 19" |
| Product Height: | 13" |
| Product Type: | Shutter & Guard Mount Fans |
| Product Width: | 19" |
| Quantity Included: | 1 |
| Shipping Weight: | 17 lbs |
| Voltage: | 120 V |
| Manufacturer Part Number: | CE14D |
| Length: | 17 in |
| Width: | 17 in |
| Weight: | 17 lbs |
| Fan Diameter: | 14 in |
| Amperage: | 2 A |
| Assembly Required: | No |
| Brand: | TPI |
| CFM: | 1250/1400/1520 CFM |
| CFM High: | 1520 CFM |
| Decibels: | 64 |
| Description: | Guard Mounted Direct Drive Exhaust Fan |
| Drive Type: | Direct Drive |
| Horsepower: | 1/8 HP |
| Indoor/Outdoor: | Indoor |
| Manufacturers Part Number: | CE14D |
| Motor Type: | Totally Enclosed |
| Mounting Location: | Wall |
| Number of Speeds: | 3 |
| RPM: | 1370/1550/1660 rpm |
| Temperature Range Heating: | Up to 100° °F |
| Width: | 19.00 in |
| Height: | 13.00 in |
| Depth: | 19.00 in |
