This 10-inch guard-mounted exhaust fan is for facilities that need low-pressure exhaust and cooling. It bolts directly to a wall to help move air, and its pull-chain control provides straightforward operation for commercial spaces.

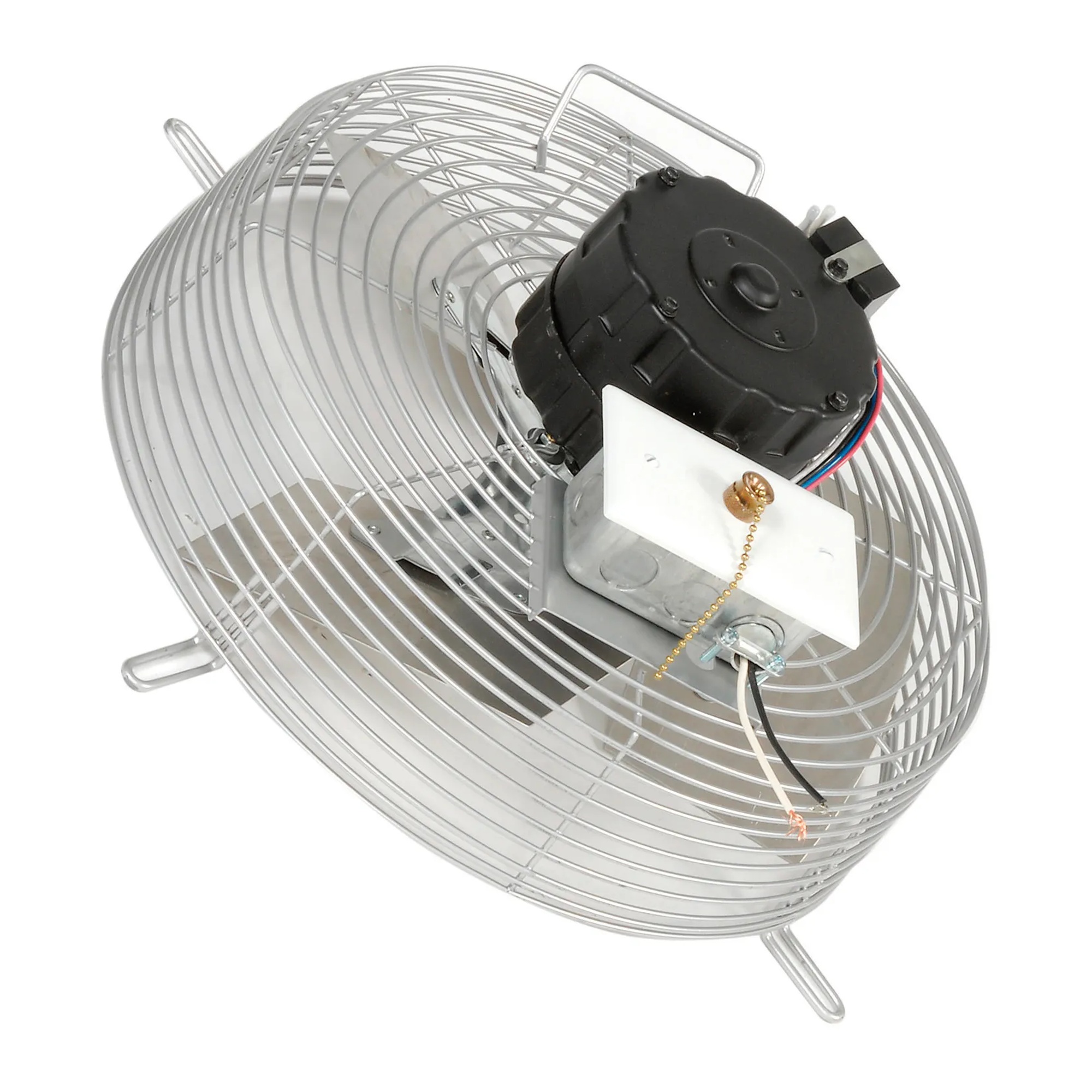

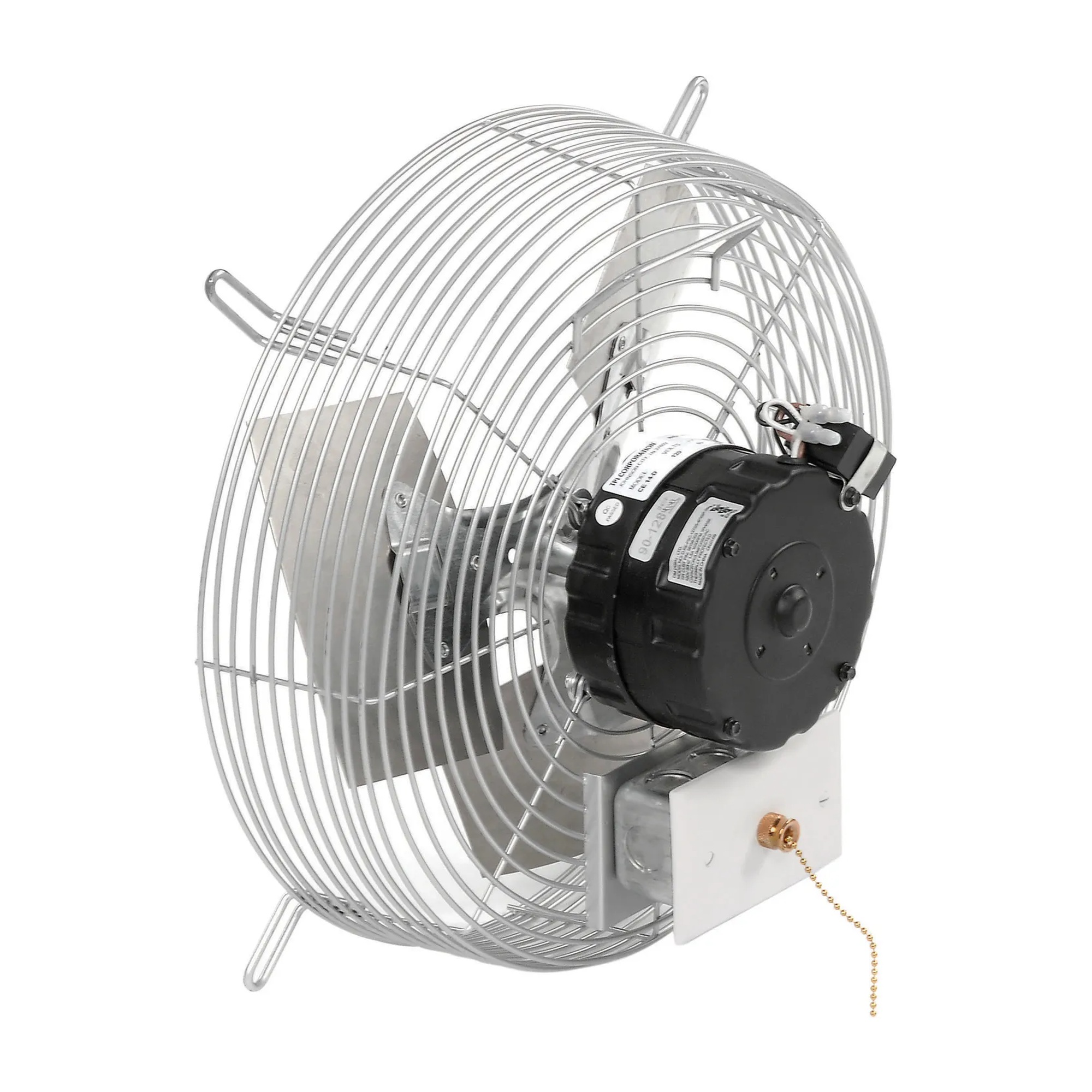

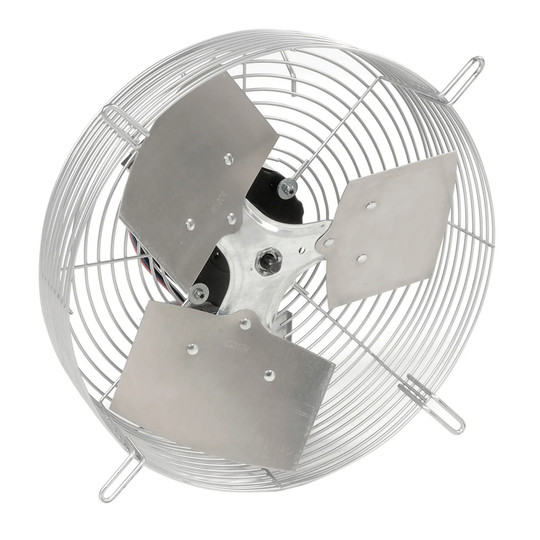

The direct-drive fan has three aluminum blades enclosed by steel spiral wire guards with built-in mounting holes. Its totally enclosed, permanently lubricated 1/12 HP, 120V single-phase motor operates by pull chain, and a junction box is included for direct wiring. The unit measures 12.5 inches wide by 12.5 inches deep by 7.5 inches high. Rough-in hole size is 1/2 inch, plus or minus 5/16 inch, larger than the fan blade size. Optional wall shutters are available.
Key Features:
A practical choice for low-pressure exhaust and cooling needs where a 10-inch, wall-mounted direct-drive fan with guarded blades and pull-chain operation fits the installation.
| Certifications: | UL |
| Configuration: | Direct Drive |
| Country of Origin: | US |
| Material: | Aluminum Blade / Steel Guards |
| Motor: | 1/12 HP |
| Phase: | 1 |
| Product Depth: | 12.5" |
| Product Height: | 7.5" |
| Product Type: | Shutter & Guard Mount Fans |
| Product Width: | 12.5" |
| Quantity Included: | 1 |
| Shipping Weight: | 8 lbs |
| Voltage: | 120 V |
| Manufacturer Part Number: | CE10D |
| Length: | 14-1/8 in |
| Width: | 14-1/8 in |
| Weight: | 11 lbs |
| Fan Diameter: | 10 in |
| Amperage: | 1 A |
| Assembly Required: | No |
| Brand: | TPI |
| CFM: | 460/540/680 CFM |
| CFM High: | 680 CFM |
| Decibels: | 50 |
| Description: | Guard Mounted Direct Drive Exhaust Fan |
| Drive Type: | Direct Drive |
| Horsepower: | 1/12 HP |
| Indoor/Outdoor: | Indoor |
| Manufacturers Part Number: | CE10D |
| Motor Type: | Totally Enclosed |
| Mounting Location: | Wall |
| Number of Speeds: | 3 |
| RPM: | 1080/1250/1560 rpm |
| Width: | 12.50 in |
| Height: | 7.50 in |
| Depth: | 12.50 in |
