12-inch guard-mounted direct-drive exhaust fan with wire guard

12-Inch Guard-Mounted Direct-Drive Exhaust Fan, 825 CFM

SKU:
WBB1960504
Our Price:
$335.94
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Airflow (CFM): 825 CFM
Certifications: UL
Configuration: Direct Drive
Country of Origin: US
Material: Aluminum Blade / Steel Guards
Motor: 1/12 HP
Phase: 1
Product Depth: 13"
Product Height: 8"
Product Type: Shutter & Guard Mount Fans
Product Width: 14"
Quantity Included: 1
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Airflow (CFM): 825 CFM
Certifications: UL
Configuration: Direct Drive
Country of Origin: US
Material: Aluminum Blade / Steel Guards
Motor: 1/12 HP
Phase: 1
Product Depth: 13"
Product Height: 8"
Product Type: Shutter & Guard Mount Fans
Product Width: 14"
Quantity Included: 1

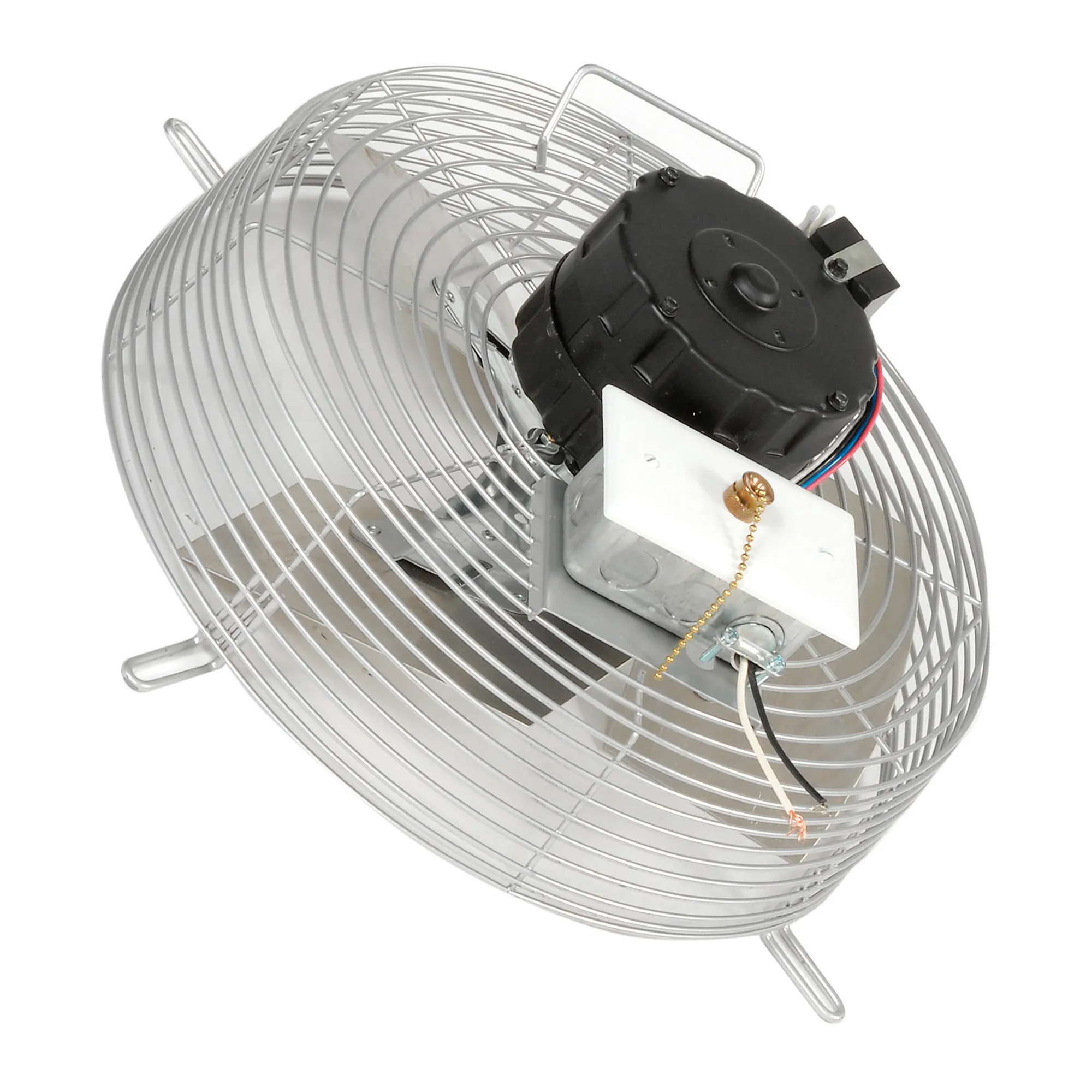

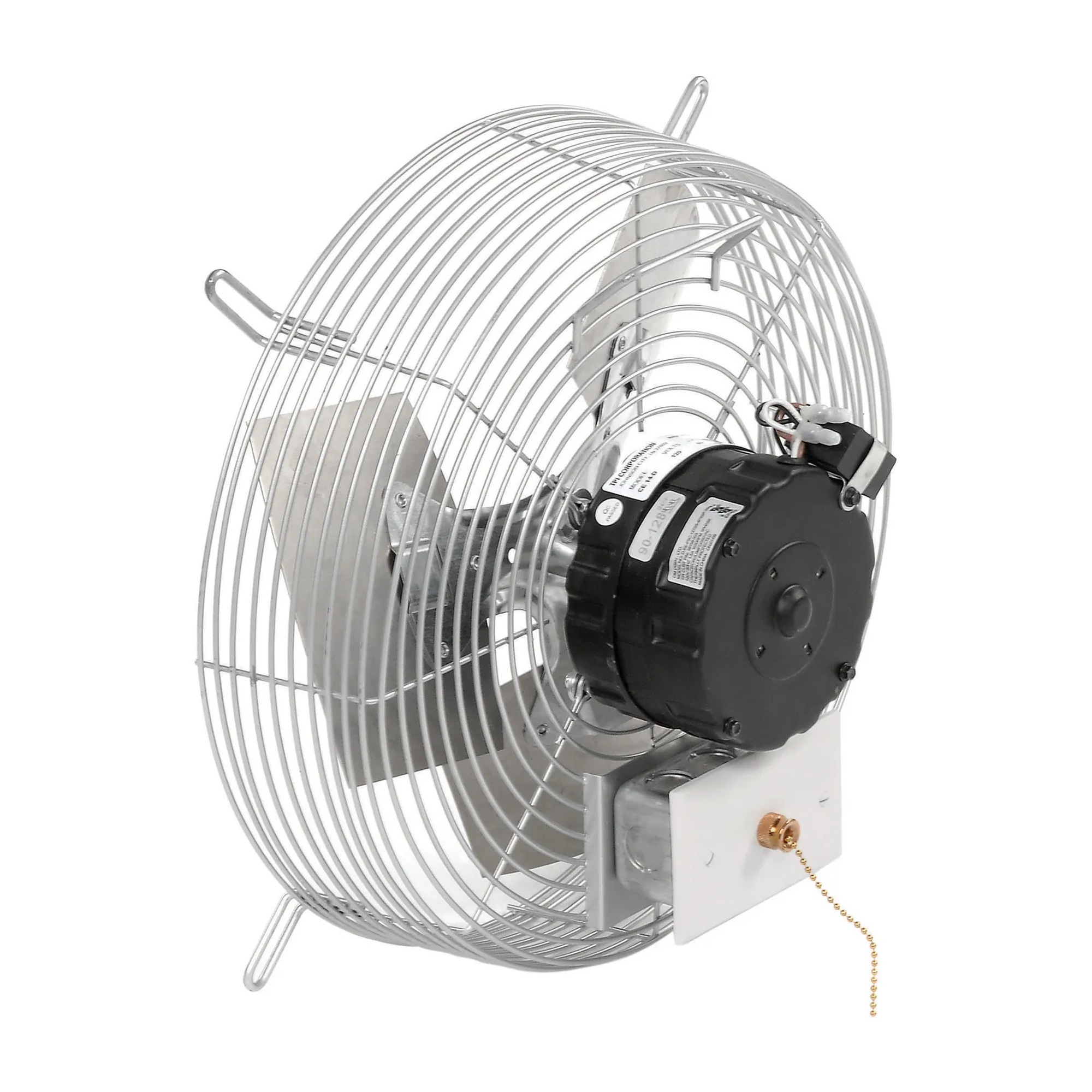

This 12-inch guard-mounted exhaust fan is designed for facilities that need low-pressure air exhausting and cooling. It mounts directly to a wall to help move air from the space.

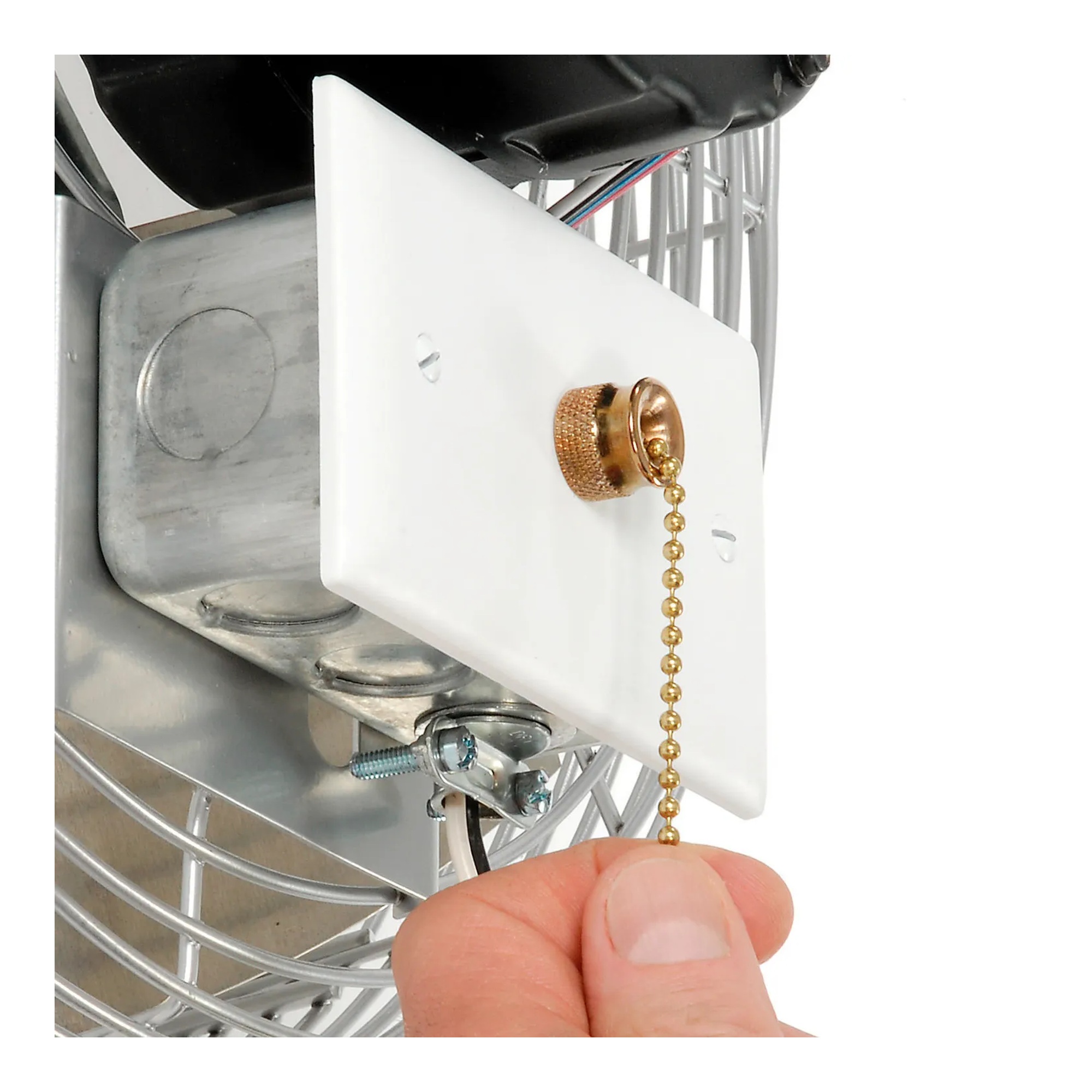

The direct-drive fan delivers 825 CFM with a 1/12 HP, 120V single-phase motor. Its three aluminum blades are enclosed by steel spiral wire guards with built-in mounting holes. The totally enclosed, permanently lubricated motor operates by pull chain, and a junction box is included for direct wiring. Overall dimensions are 13 in. wide, 14 in. deep, and 8 in. high. The rough-in opening should be 1/2 in. larger than the fan blade size, plus or minus 5/16 in.

Key Features:

  • 825 CFM airflow: Supports low-pressure exhausting and cooling needs.
  • Wall-mount guard design: Allows the fan to be bolted directly to a wall.
  • Three aluminum blades: Moves air within a protected guard assembly.
  • Steel wire guards: Help protect the fan blades while providing built-in mounting holes.
  • Pull-chain control: Provides straightforward local fan operation.
  • Included junction box: Supports direct-wiring installation.

Choose this guard-mounted exhaust fan for wall-mounted, low-pressure ventilation and cooling where 120V single-phase power and pull-chain operation fit the installation.

Airflow (CFM): 825 CFM
Certifications: UL
Configuration: Direct Drive
Country of Origin: US
Material: Aluminum Blade / Steel Guards
Motor: 1/12 HP
Phase: 1
Product Depth: 13"
Product Height: 8"
Product Type: Shutter & Guard Mount Fans
Product Width: 14"
Quantity Included: 1
Shipping Weight: 12 lbs
Voltage: 120 V
Manufacturer Part Number: CE12D
Length: 16-1/2 in
Width: 16-1/2 in
Weight: 12 lbs
Fan Diameter: 12 in
Amperage: 1.10 A
Assembly Required: No
Brand: TPI
CFM: 560/710/825 CFM
CFM High: 825 CFM
Drive Type: Direct Drive
Horsepower: 1/12 HP
Indoor/Outdoor: Indoor
Manufacturers Part Number: CE12D
Motor Type: Totally Enclosed
Mounting Location: Guard or Wall
Number of Speeds: 3
Warranty: 1 yr
Width: 13.00 in
Height: 8.00 in
Depth: 14.00 in
!
