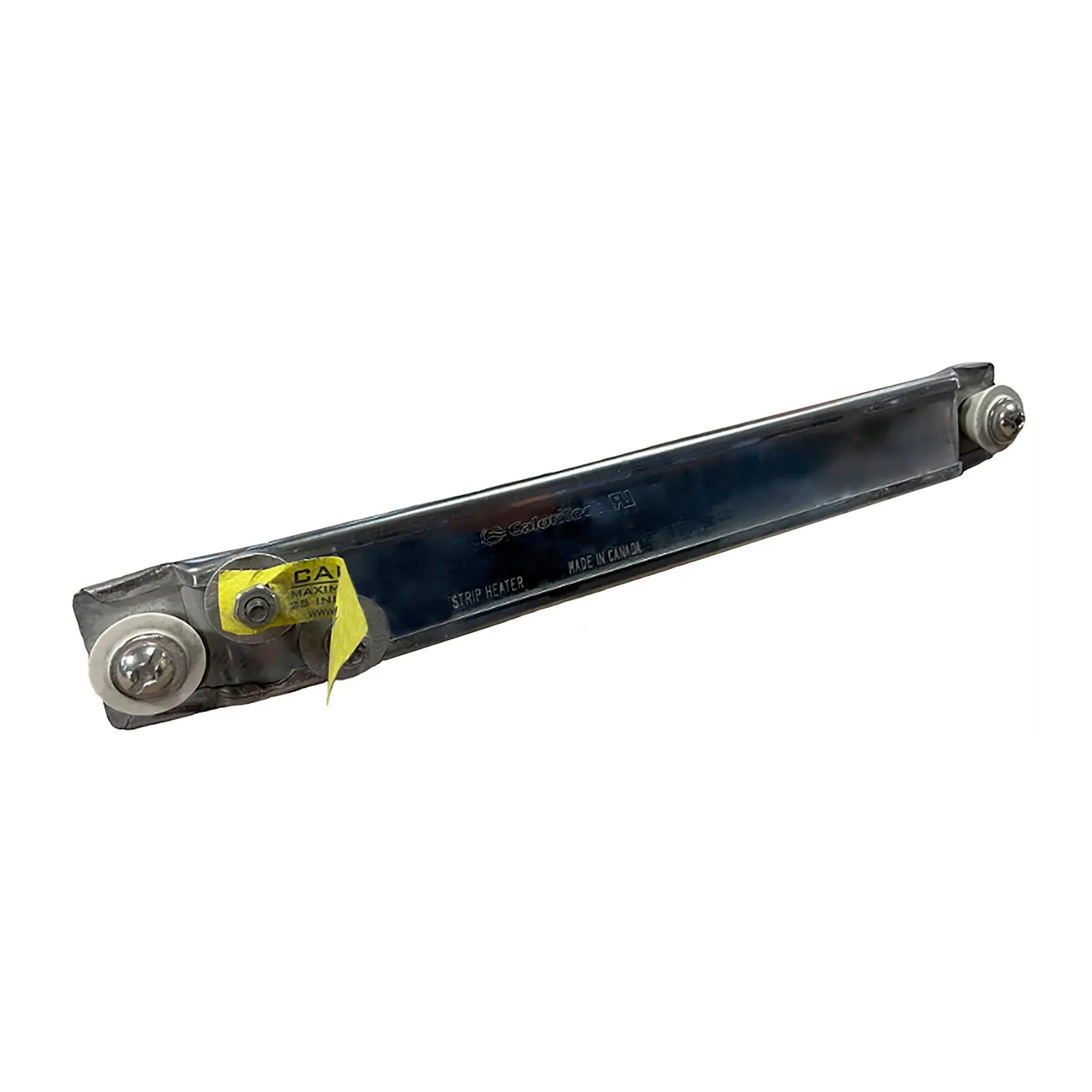

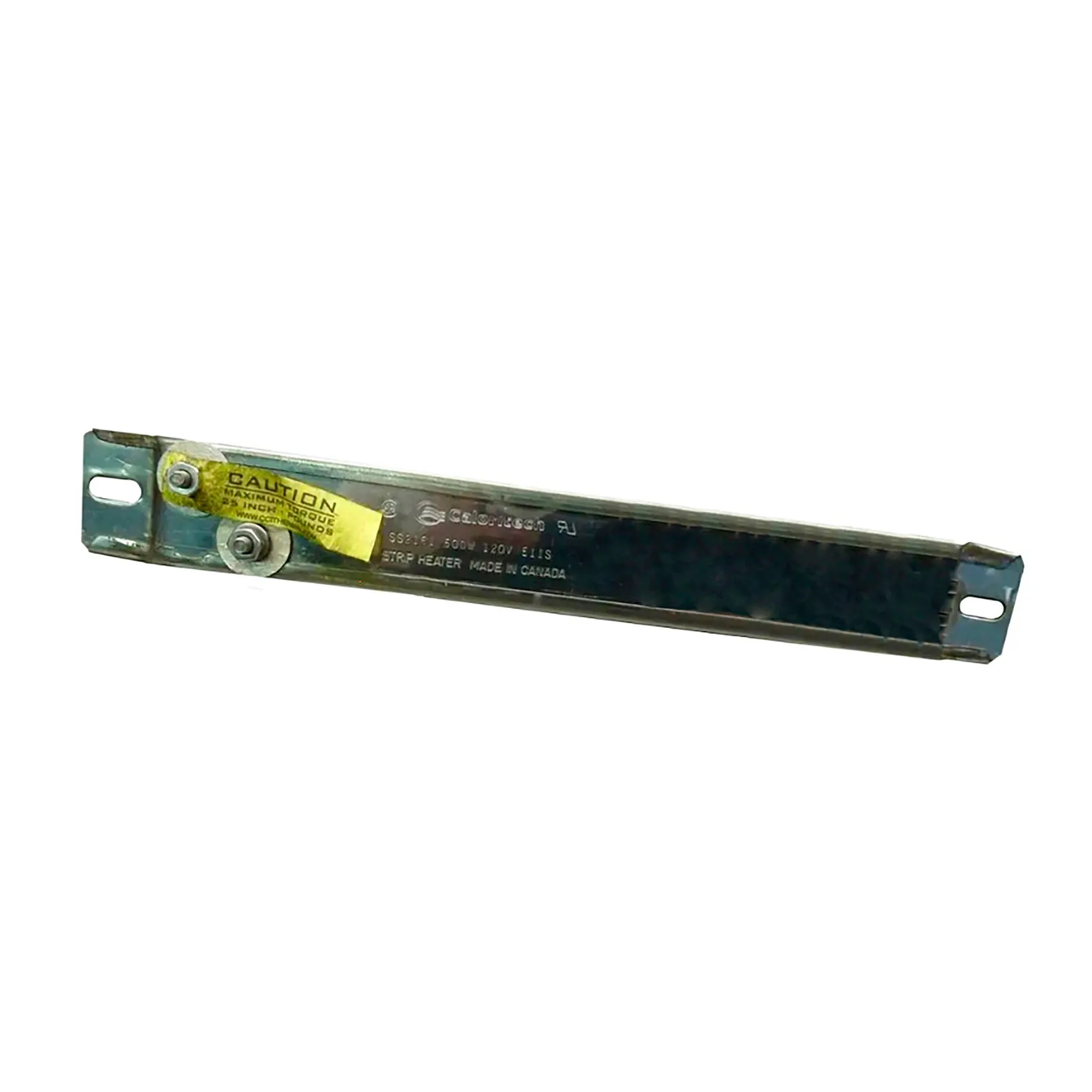

This component strip heater provides radiant heat for industrial users needing surface or process-air heating. It is suited for integration into equipment where controlled heat supports processes such as heating surfaces or air.

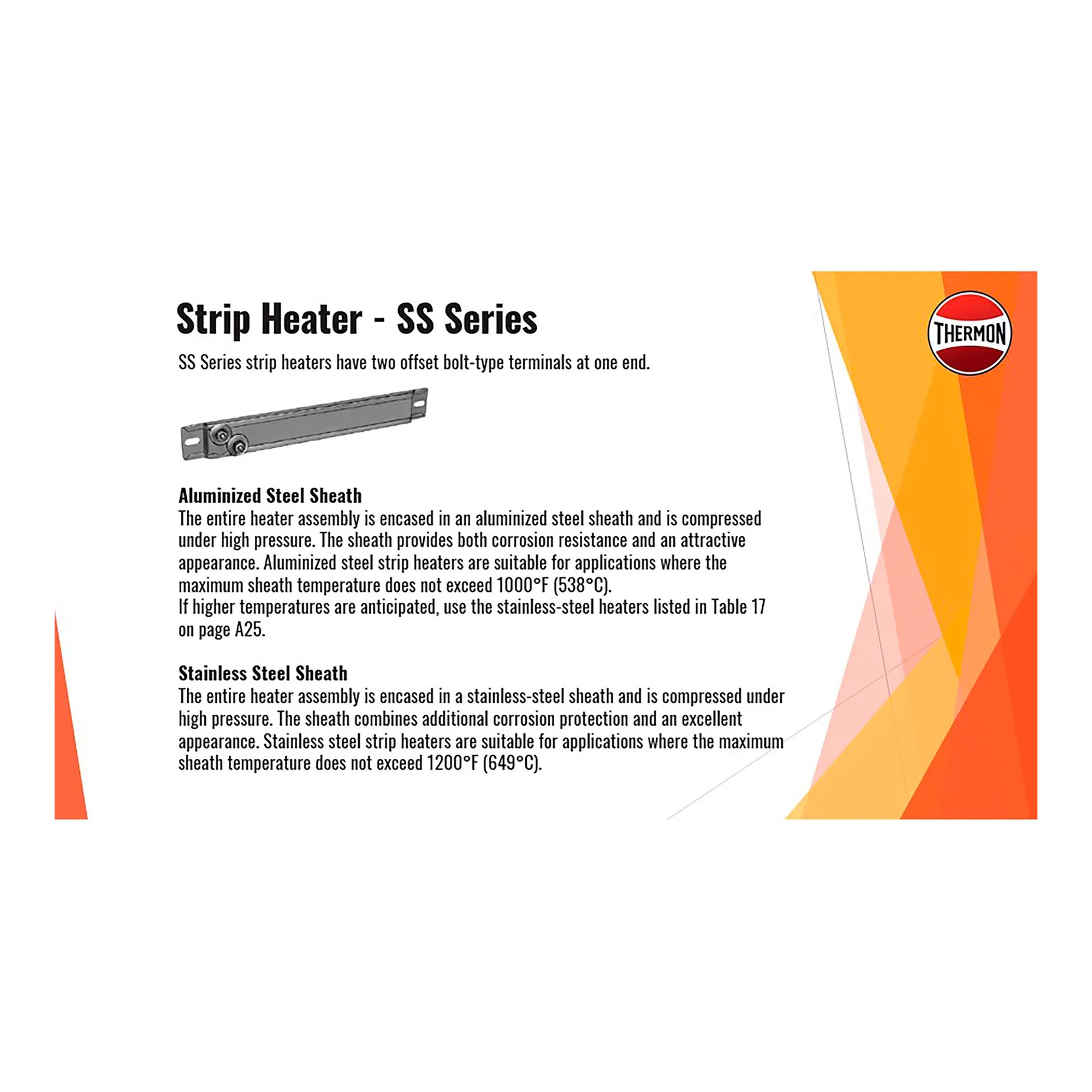

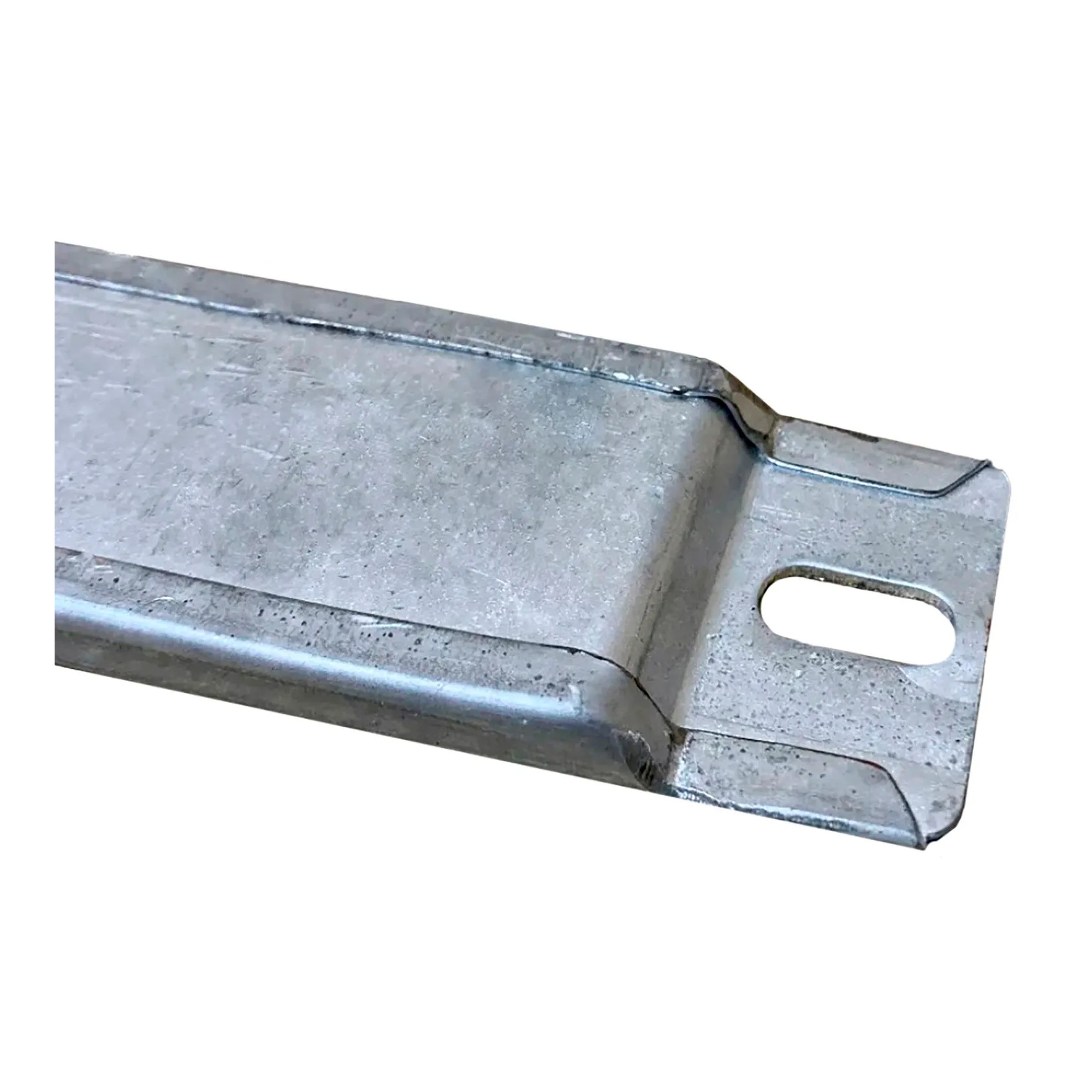

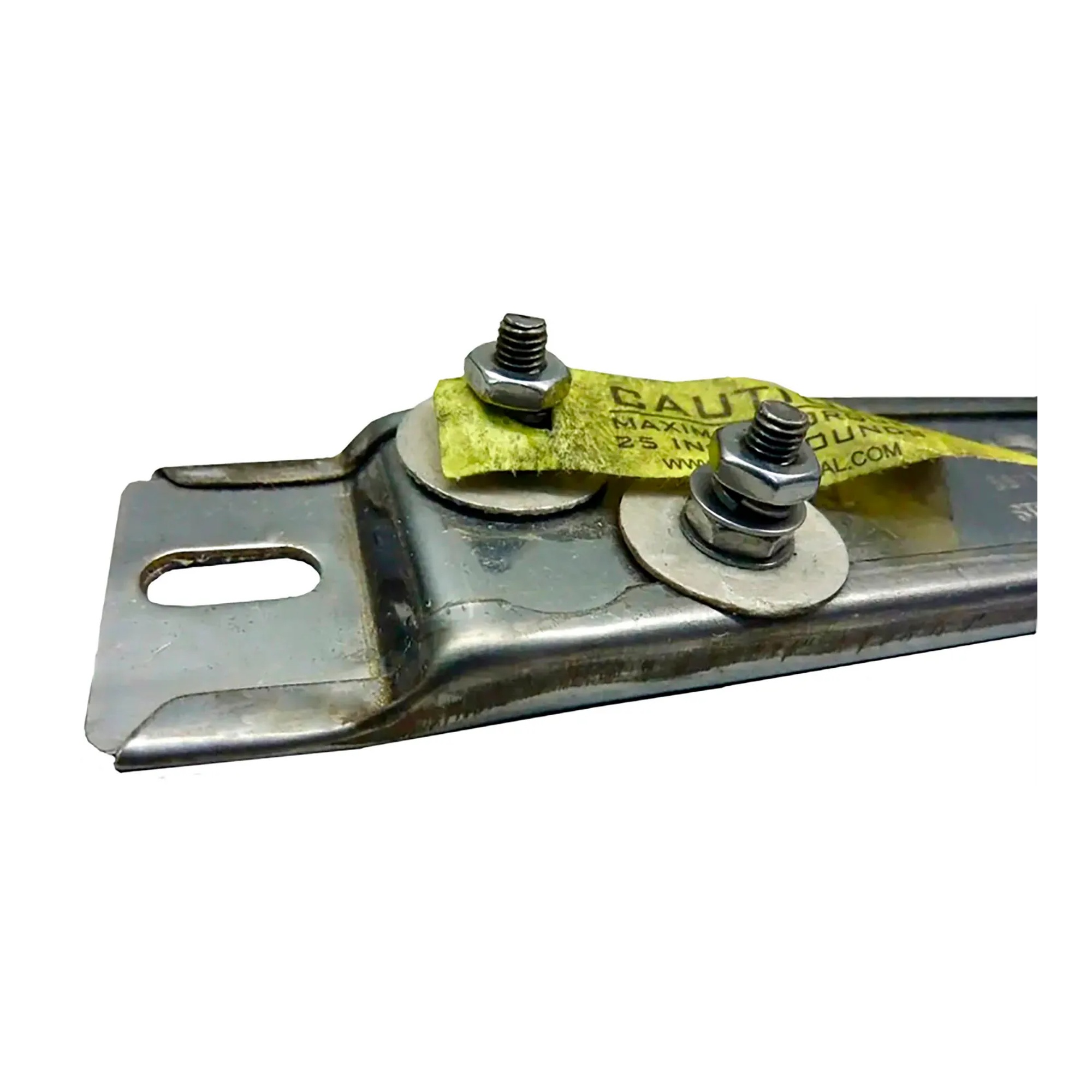

The 120V, 100W heater measures 7-1/4 inches long. Its heater assembly is enclosed in an aluminized steel sheath compressed under high pressure. Two offset bolt-type terminals are located at one end, and mounting holes support secure installation. The heater can be controlled with a heating control panel, mechanical thermostat, or surface-mounted bi-metal thermostat. Its maximum sheath temperature is 1000°F.
Key Features:
Choose this 7-1/4-inch component strip heater for industrial equipment requiring a 120V, 100W radiant heat source with one-end terminals and mounting provisions.
| Country of Origin: | CA |
| Material: | Stainless Steel |
| Product Depth: | 4" |
| Product Height: | 4" |
| Product Type: | Strip Heaters |
| Product Width: | 8" |
| Quantity Included: | 1 |
| Shipping Weight: | 5 lbs |
| Voltage: | 120 V |
| Manufacturer Part Number: | SS1031 |
| Length: | 7-1/4 in |
| Width: | 1-1/2 in |
| Screw Size: | 10 - 32 |
| Slotted Hole Length: | 5/8 in |
| Slotted Hole Width: | 9/32 in |
| Brand: | Caloritech |
| Manufacturers Part Number: | SS1031 |
| Max Exposure Temperature: | 1000 °F |
| Sheath Material: | Aluminum Steel |
| Type: | Strip Heater |
| Watt Density: | 8.2 W |
| Wattage: | 100 W |
| Watts High: | 100 W |
| Warranty: | 1 |
| Certifications: | CSA, UL Safety |
| Width: | 4.00 in |
| Height: | 4.00 in |
| Depth: | 8.00 in |
