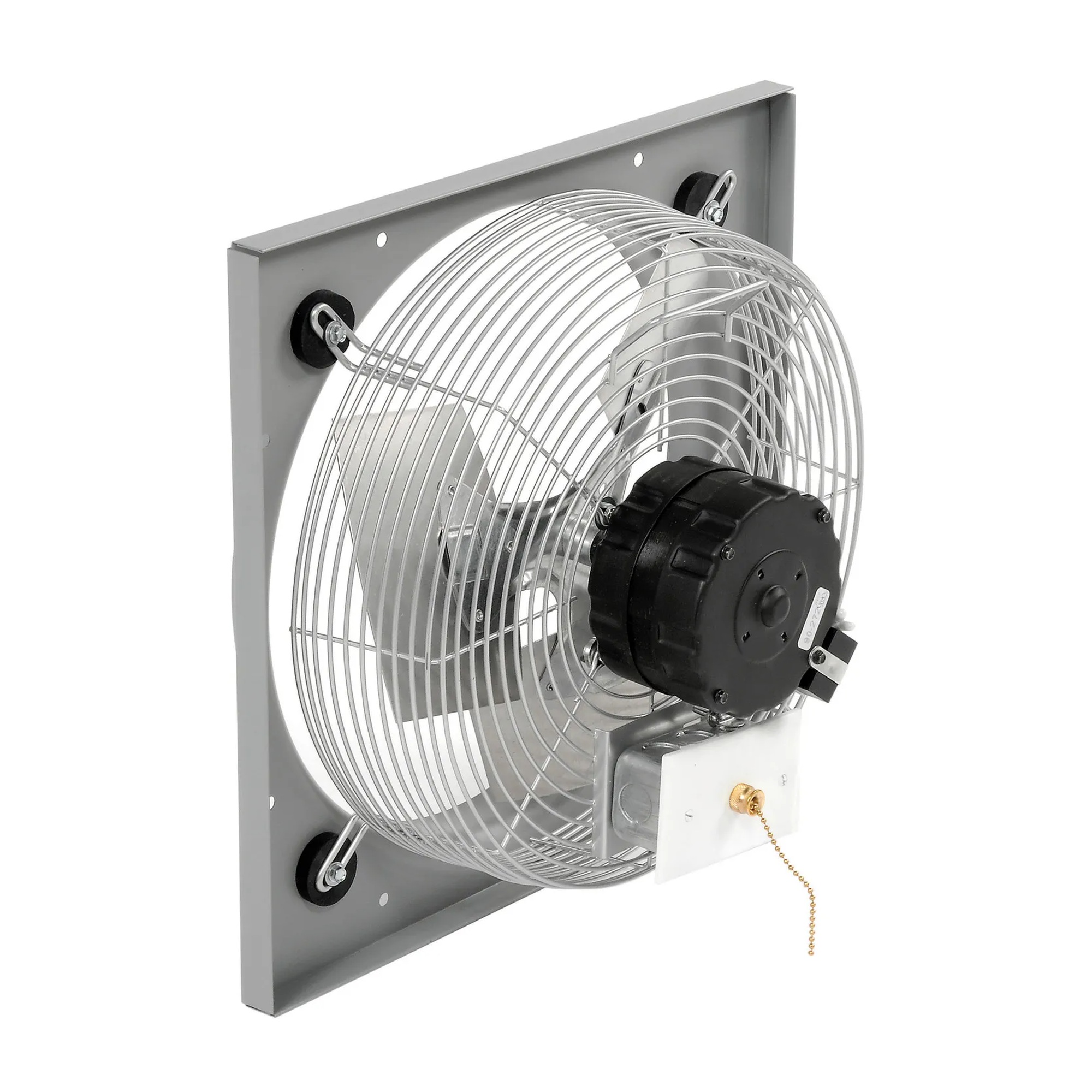

This 12-inch venturi-mounted exhaust fan is for facility teams and commercial users who need low-pressure air exhausting and cooling. It installs on the inside of a wall and supports wall or shutter mounting.

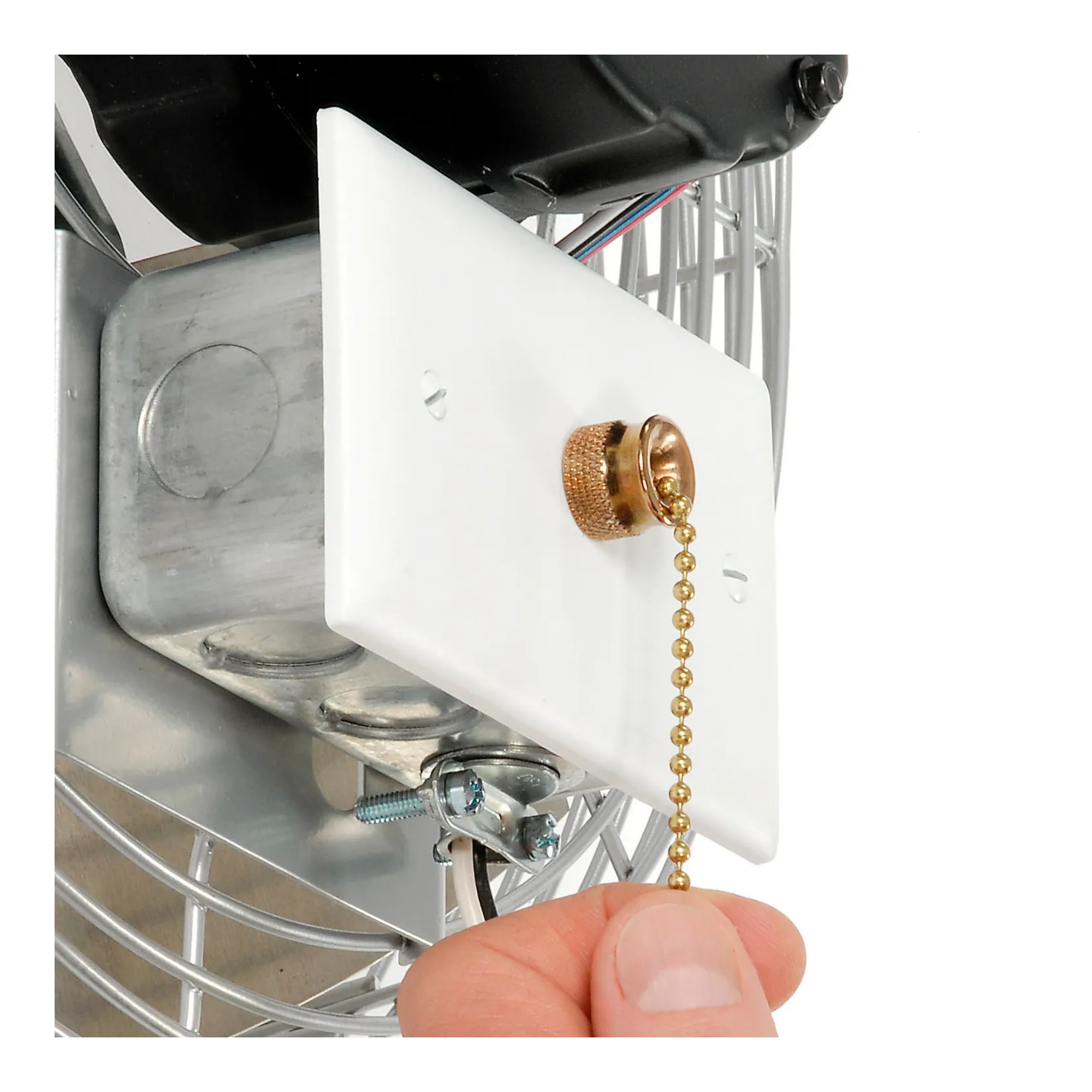

The fan has a 1/12 HP, 120V single-phase, totally enclosed motor with permanent lubrication and direct-drive operation. Three aluminum blades are mounted in a steel venturi frame and protected by steel spiral wire guards. A pull chain operates the fan, and a junction box is included for direct wiring. Overall dimensions are 17 inches wide, 17 inches deep, and 12 inches high. The rough-in opening should be 1/2 inch larger than the fan blade size. Optional wall shutters are available.
Key Features:
Choose this venturi-mounted exhaust fan for low-pressure exhausting and cooling where an inside-wall installation, pull-chain operation, and direct wiring connection are needed.
| Certifications: | UL |
| Configuration: | Direct Drive |
| Country of Origin: | CN |
| Material: | Aluminum Blade / Steel Guards |
| Motor: | 1/12 HP |
| Phase: | 1 |
| Product Depth: | 17" |
| Product Height: | 12" |
| Product Type: | Shutter & Guard Mount Fans |
| Product Width: | 17" |
| Quantity Included: | 1 |
| Shipping Weight: | 12 lbs |
| Voltage: | 120 V |
| Manufacturer Part Number: | CE12DV |
| Length: | 14-1/2 in |
| Width: | 14-1/2 in |
| Weight: | 17 lbs |
| Fan Diameter: | 12 in |
| Amperage: | 1.10 A |
| Assembly Required: | No |
| Brand: | TPI |
| CFM: | 560/710/825 CFM |
| CFM High: | 825 CFM |
| Description: | Venturi Mounted Direct Drive Exhaust Fan |
| Drive Type: | Direct Drive |
| Horsepower: | 1/12 HP |
| Indoor/Outdoor: | Indoor |
| Manufacturers Part Number: | CE12DV |
| Mounting Location: | Wall |
| Number of Speeds: | 3 |
| RPM: | 1080/1250/1560 rpm |
| Width: | 17.00 in |
| Height: | 12.00 in |
| Depth: | 17.00 in |
