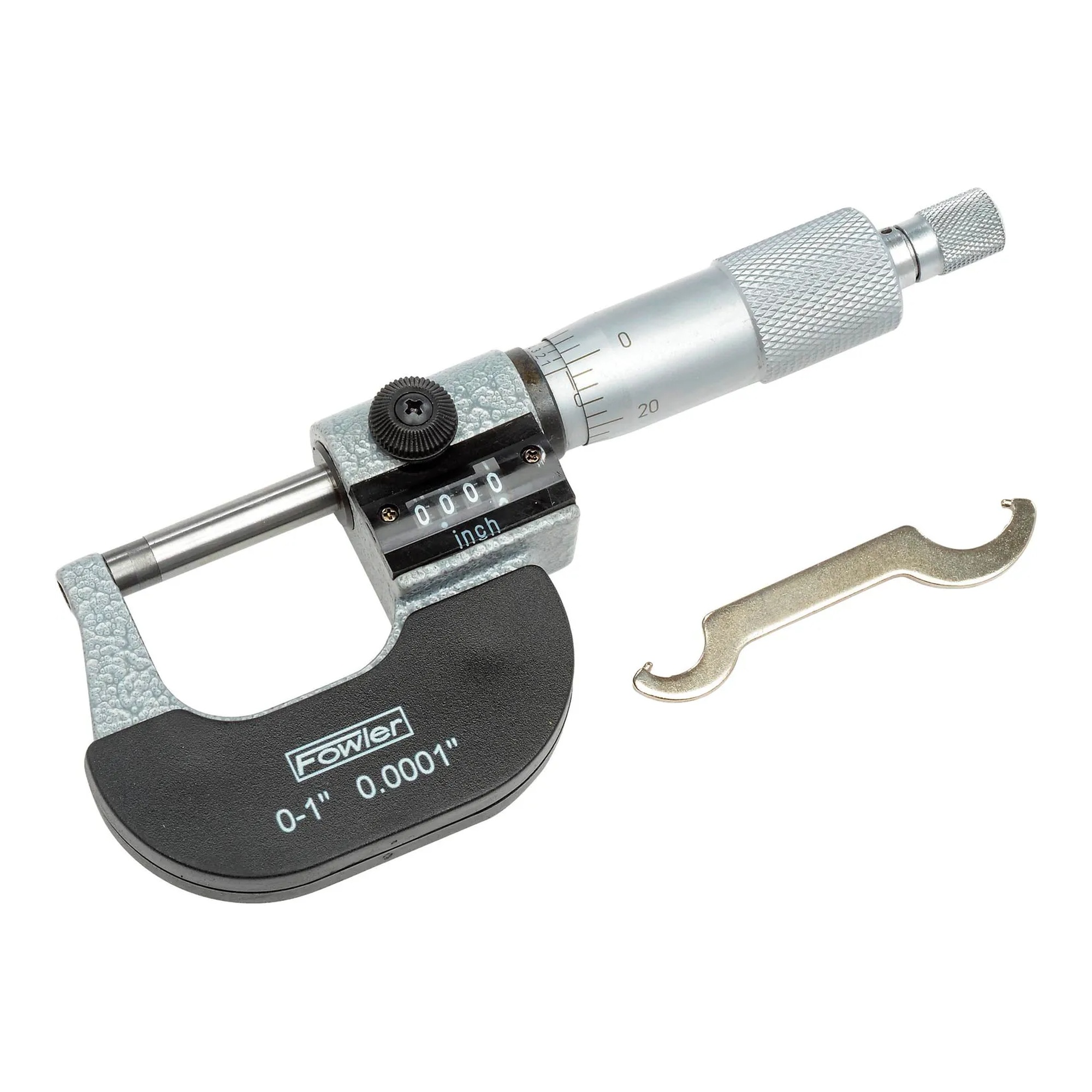

This outside micrometer is designed for machinists, inspectors, and other professionals who need to measure external part dimensions. Its 0–1 in. measuring range supports precise comparison and verification of workpiece sizes.

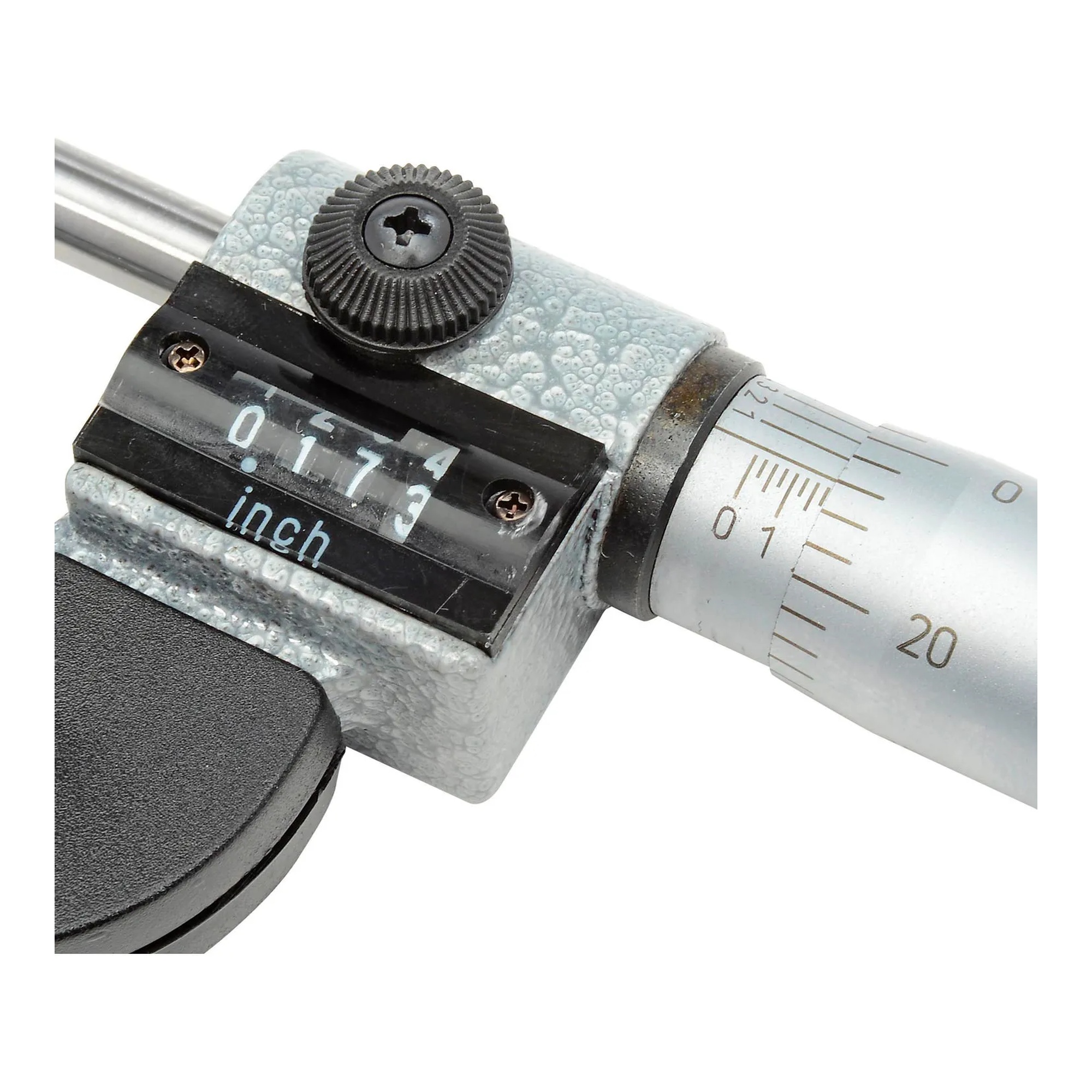

The mechanical micrometer has a digital counter that reads to 0.001 in. and a vernier resolution of 0.0001 in. It features microfine graduations on a satin-chrome finish, carbide-tipped measuring faces, a spindle locking nut, and a ratchet-stop thimble. A protective case is included.
Key Features:
A practical choice for outside-dimension measurement where a 0–1 in. range, fine resolution, and mechanical operation are needed. The included case helps keep the micrometer protected when not in use.
| Country of Origin: | CN |
| Product Depth: | 3.25 |
| Product Height: | 1.25 |
| Product Type: | Micrometers |
| Product Width: | 3.25 |
| Quantity Included: | 1 |
| Manufacturer Part Number: | 52-224-001-1 |
| Length: | 6-1/4 |
| Metric or Inch: | Inch in |
| Min Measurement: | 0 in |
| Min Outside Diameter: | None in |
| Range: | 0-1 |
| Accuracy: | 0.00016 IN °F |
| Anvil Shape: | Spherical |
| Case: | Yes |
| Data Output: | No |
| Description: | Mechanical Outside Micrometer |
| Digital: | No |
| Digital Counter: | Yes |
| Fraction Option: | No |
| IP Rating: | None |
| Manufacturers Part Number: | 52-224-001-1 |
| Measuring Face Material: | Carbide |
| Mechanical Or Digital: | Mechanical |
| Power Source: | None |
| Rotating Spindle: | No |
| Style: | General Purpose |
| Thimble Type: | Ratchet Stop |
| Type: | Mechanical Counter Outside Micrometer |
| Long Form Calibration Certificate Included: | No |
| Shipping Method: | Parcel |
| Width: | 3.25 in |
| Height: | 1.25 in |
| Depth: | 6.25 in |
No additional information available.
