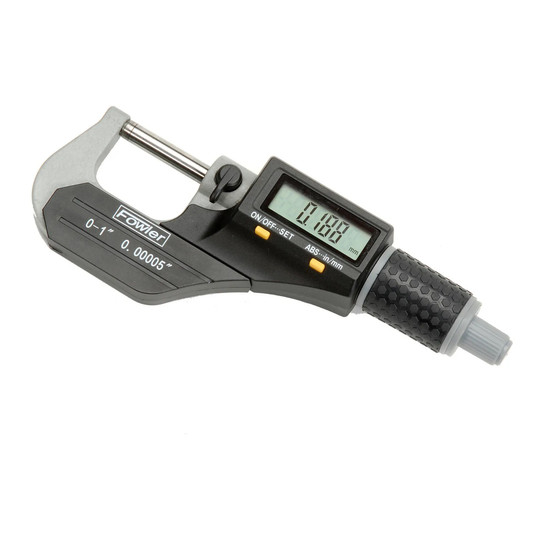

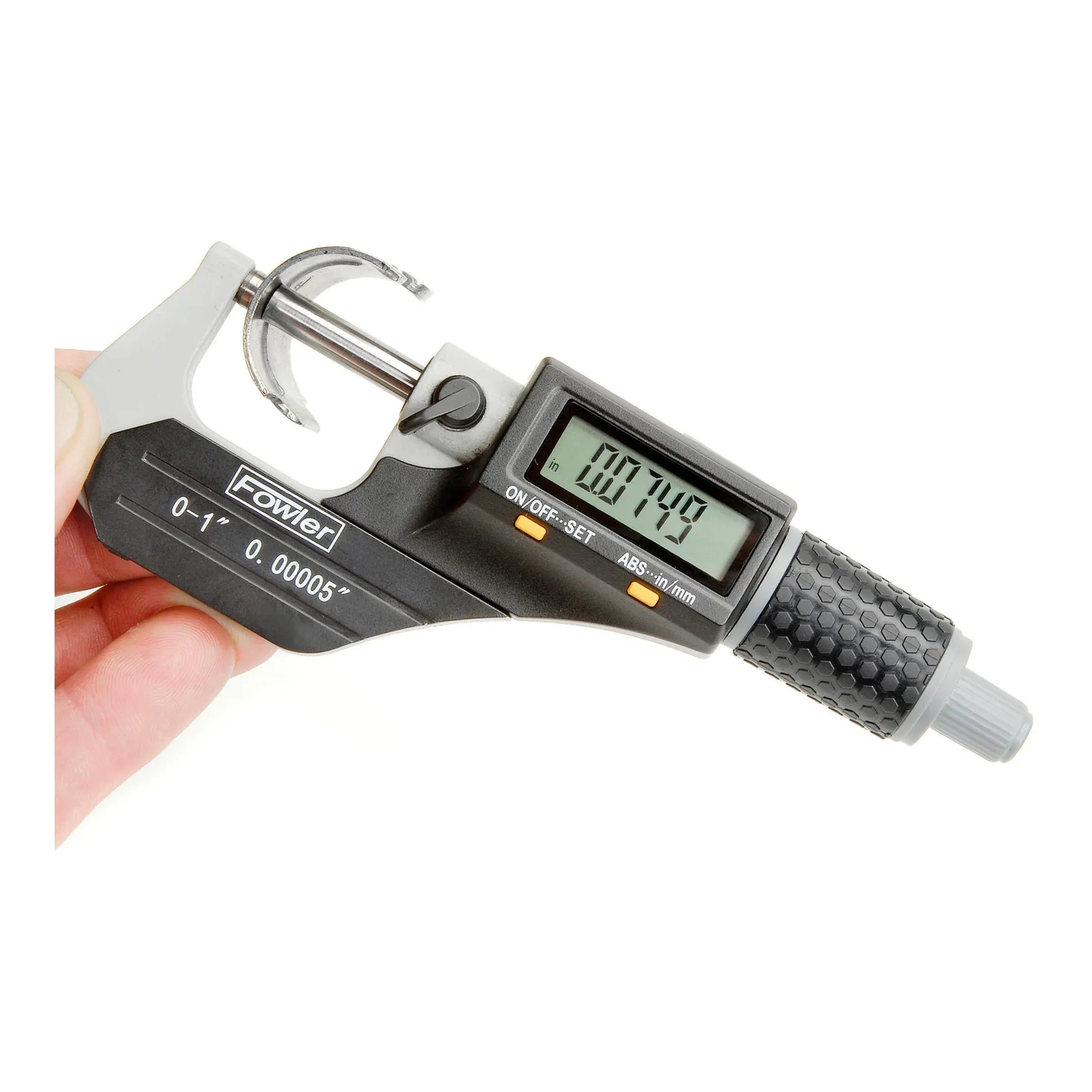

0–1 inch digital micrometer with LCD display and ratchet thimble

0–1 in. Digital Micrometer with Data Output and Ratchet Thimble

SKU:
WBB476725
Brand:
Fowler
Model/MPN:
54-870-001-0
Our Price:
$159.94
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: CN
Product Depth: 4
Product Height: 4
Product Type: Micrometers
Product Width: 0.25
Quantity Included: 1
Manufacturer Part Number: 54-870-001-0
Length: 6
Max Measurement: 25.4 in
Metric or Inch: Inch,Metric in
Min Measurement: 0 in
Min Outside Diameter: 0 in
Range: 0-1
Resolution/Graduation: 0.001 in
Accuracy: 0.00016 IN °F
Anvil Shape: Spherical
Battery Type: CR2032
Case: Yes
Data Output: Yes
Description: IP54 Digital Micrometer Data Output & Ratchet Stop Thimble
Digital: Yes
Fraction Option: No
IP Rating: IP54
Manufacturers Part Number: 54-870-001-0
Measuring Face Material: Carbide
Mechanical Or Digital: Digital
Power Source: Battery
Rotating Spindle: Yes
Series: Xtra Value
Style: General Purpose
Thimble Type: Ratchet Stop
Type: Digital Micrometer
Long Form Calibration Certificate Included: No
Shipping Method: Parcel
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: CN
Product Depth: 4
Product Height: 4
Product Type: Micrometers
Product Width: 0.25
Quantity Included: 1
Manufacturer Part Number: 54-870-001-0
Length: 6
Max Measurement: 25.4 in
Metric or Inch: Inch,Metric in
Min Measurement: 0 in
Min Outside Diameter: 0 in
Range: 0-1
Resolution/Graduation: 0.001 in
Accuracy: 0.00016 IN °F
Anvil Shape: Spherical
Battery Type: CR2032
Case: Yes
Data Output: Yes
Description: IP54 Digital Micrometer Data Output & Ratchet Stop Thimble
Digital: Yes
Fraction Option: No
IP Rating: IP54
Manufacturers Part Number: 54-870-001-0
Measuring Face Material: Carbide
Mechanical Or Digital: Digital
Power Source: Battery
Rotating Spindle: Yes
Series: Xtra Value
Style: General Purpose
Thimble Type: Ratchet Stop
Type: Digital Micrometer
Long Form Calibration Certificate Included: No
Shipping Method: Parcel

This digital micrometer is designed for professionals who need to measure parts from 0 to 1 inch with a clear digital readout. It supports inspection and measurement work where repeatable readings and digital data transfer are useful.

The micrometer measures 0–1 in. (0–25.4 mm) and has a resolution of 0.00005 in. (0.001 mm). It features a large LCD display, direct RS-232 output, carbide measuring faces, absolute and incremental modes, and a ratchet stop thimble. Its dust-, water-, and oil-resistant design has an IP54 rating, and it includes a hardened case.

Key Features:

  • Fine digital resolution: Reads in 0.00005 in. or 0.001 mm increments for detailed measurement work.
  • Large LCD display: Makes measurement values easier to view during inspections.

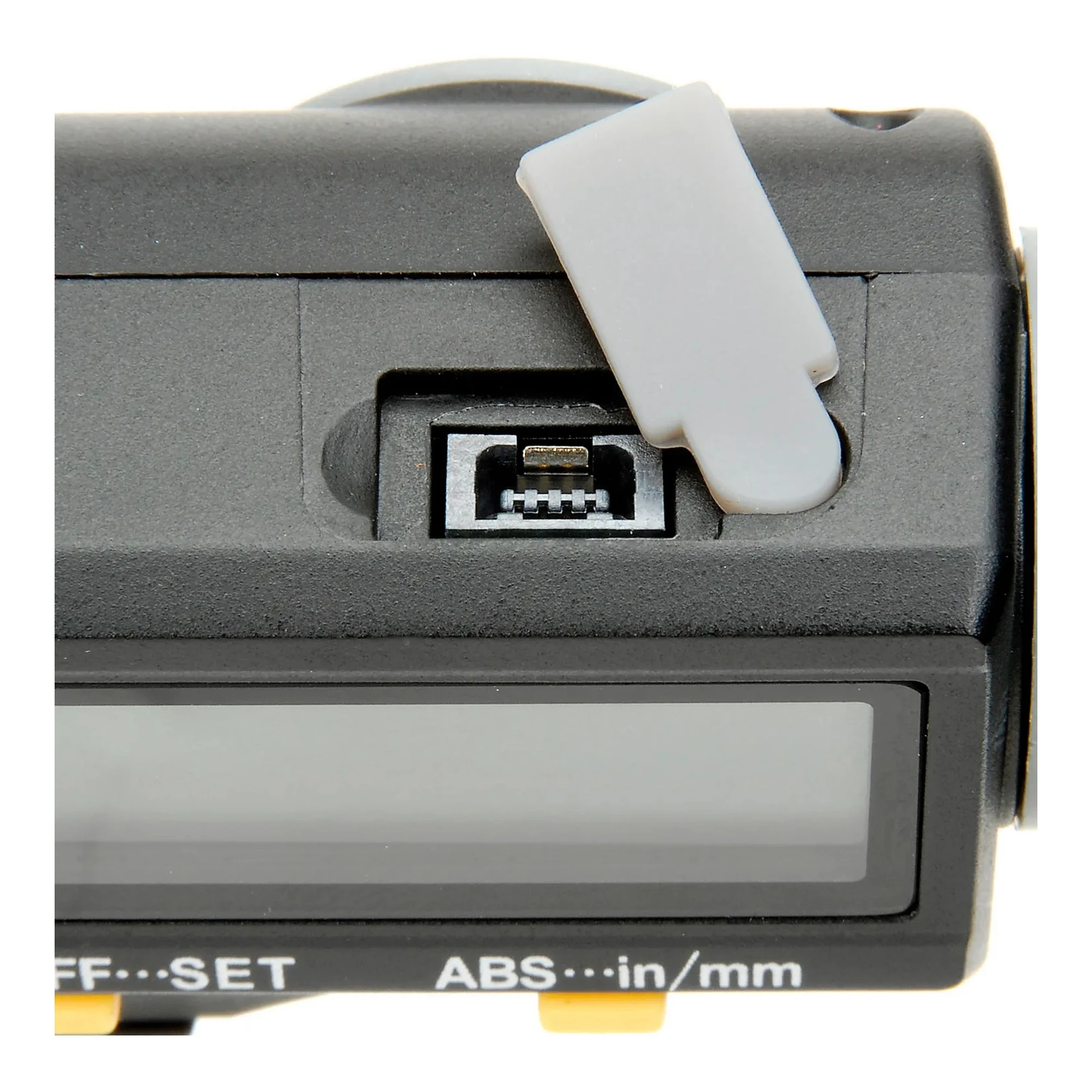

  • RS-232 data output: Allows measurements to be transferred through a direct RS-232 connection.
  • Carbide measuring faces: Provides durable contact surfaces for measuring tasks.
  • Ratchet stop thimble: Helps apply consistent measuring pressure during use.
  • Absolute and incremental modes: Supports direct measurements and relative comparison readings.

A practical choice for measurement and inspection tasks requiring a 0–1 in. digital micrometer, data output capability, and a protective hardened case.

Country of Origin: CN
Product Depth: 4
Product Height: 4
Product Type: Micrometers
Product Width: 0.25
Quantity Included: 1
Manufacturer Part Number: 54-870-001-0
Length: 6
Max Measurement: 25.4 in
Metric or Inch: Inch,Metric in
Min Measurement: 0 in
Min Outside Diameter: 0 in
Range: 0-1
Resolution/Graduation: 0.001 in
Accuracy: 0.00016 IN °F
Anvil Shape: Spherical
Battery Type: CR2032
Case: Yes
Data Output: Yes
Description: IP54 Digital Micrometer Data Output & Ratchet Stop Thimble
Digital: Yes
Fraction Option: No
IP Rating: IP54
Manufacturers Part Number: 54-870-001-0
Measuring Face Material: Carbide
Mechanical Or Digital: Digital
Power Source: Battery
Rotating Spindle: Yes
Series: Xtra Value
Style: General Purpose
Thimble Type: Ratchet Stop
Type: Digital Micrometer
Long Form Calibration Certificate Included: No
Shipping Method: Parcel
Width: 4.00 in
Height: 2.00 in
Depth: 7.50 in
!
