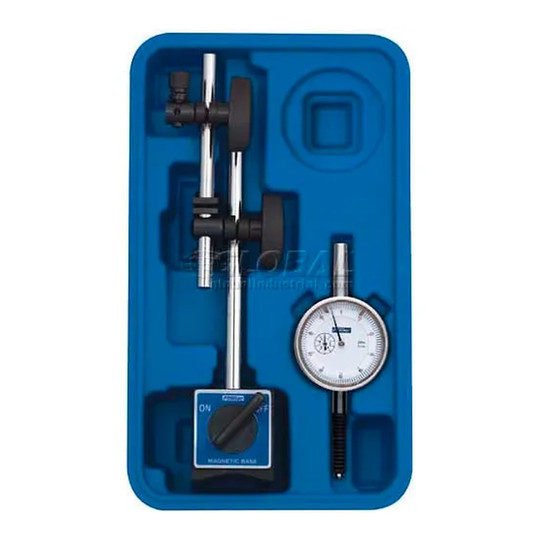

Water-Resistant Dial Indicator with Magnetic Base

This dial indicator and magnetic base assembly helps machinists, inspectors, and maintenance professionals check small dimensional movement and position changes. The magnetic base supports stable indicator placement during measurement and inspection tasks.

The indicator has 1 inch travel, 0.001 inch graduations, and a continuous 0-100 reading display with tolerance markers. Its 2-1/4 inch diameter, AGD Group 2 lugback design includes a carbide point, rubber stem bellows, sealed back plate, and O-ring protection at the safety cap, bezel, and rotating dial. The magnetic base has fine adjustment, an on-off lever-release magnet with 85 lb pull, a V-base for round surfaces, and measures 2 inches x 2-11/32 inches x 1-13/16 inches. It also accepts test indicators with a 1/4 inch post.

Key Features:

• 1 Inch Travel: Supports measurement across a 1 inch range.
• 0.001 Inch Graduations: Helps users monitor small movement changes with fine readings.
• Magnetic V-Base: Provides placement on flat or round surfaces.
• Fine Adjustment: Allows controlled positioning of the mounted indicator.
• Water-Resistant Sealing: Rubber bellows, O-rings, and a sealed back plate help protect key indicator areas.
• Tolerance Markers: Provide visual reference points for acceptable measurement limits.

A practical choice for measurement and inspection work requiring a fine-reading dial indicator with an adjustable magnetic mounting base.
