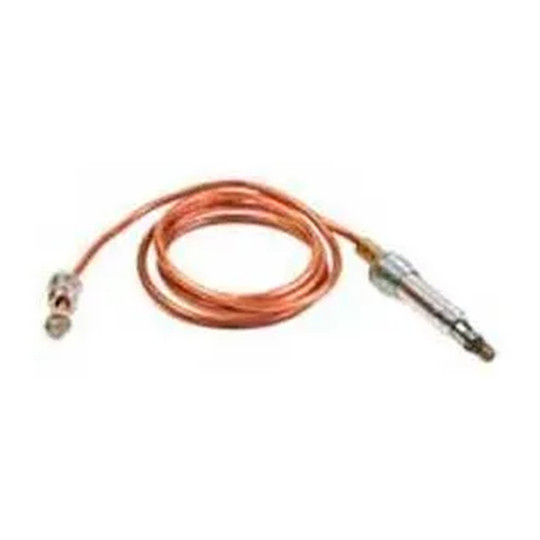

Universal 48-inch thermocouple with connector

Universal 48-Inch Thermocouple

SKU:
WBB393932
Our Price:
$19.24
BBB Accredited Business Badge
Free Shipping on Qualifying Orders Over $99
Shipping & Availability:
  • Fast Shipping: Estimated delivery in 3-6 Business Days
  • Bulk Pricing Available: Call 800-810-FILE or email us for a custom quote.
✔ Secure Checkout
✔ Business Purchasing Support
✔ 5.0 Google Store Rating
Product Specifications:
Country of Origin: MX
Product Depth: 2.4"
Product Height: 0.4"
Product Type: Thermocouples & Thermopiles
Product Width: 2.8"
Quantity Included: 1
Shipping Weight: 19 lbs
Manufacturer Part Number: Q340A1108
Length: 48 in
Connection Size: 11/32-32 in
Connections: Male Nut ft
Lead Wire Length: 48 in
(No reviews yet) Write a Review
Adding to cart… The item has been added
✔ Fast Shipping · ✔ Secure Checkout · ✔ Made in USA
Questions? We're here to help.
Call 800-810-FILE or email us .
Free Shipping on Qualifying Orders Over $99
Product Specifications:
Country of Origin: MX
Product Depth: 2.4"
Product Height: 0.4"
Product Type: Thermocouples & Thermopiles
Product Width: 2.8"
Quantity Included: 1
Shipping Weight: 19 lbs
Manufacturer Part Number: Q340A1108
Length: 48 in
Connection Size: 11/32-32 in
Connections: Male Nut ft
Lead Wire Length: 48 in

This universal thermocouple is for technicians and maintenance professionals servicing standing-pilot gas-fired heating systems. It senses the pilot flame and helps provide the signal used by compatible pilot safety controls.

The 48-inch thermocouple generates 30 millivolts when its tip is heated by the pilot flame, creating a temperature difference between the tip and base. It includes a push-in clip and adapter assembly, plus an 11/32-32 male nut connector for Pilotstat safety control power units.

Key Features:

  • Pilot flame sensing: Responds to heat from the pilot flame for standing-pilot gas heating system operation.
  • 30-millivolt output: Generates the specified electrical signal when the thermocouple tip is heated.
  • Included clip and adapter: Provides the push-in clip and adapter assembly needed for installation.
  • 11/32-32 male connector: Connects with compatible Pilotstat safety control power units.

Choose this 48-inch thermocouple for standing-pilot gas-fired heating systems that use a compatible Pilotstat safety control power unit.

Country of Origin: MX
Product Depth: 2.4"
Product Height: 0.4"
Product Type: Thermocouples & Thermopiles
Product Width: 2.8"
Quantity Included: 1
Shipping Weight: 19 lbs
Manufacturer Part Number: Q340A1108
Length: 48 in
Connection Size: 11/32-32 in
Connections: Male Nut ft
Lead Wire Length: 48 in
Brand: Honeywell
Manufacturers Part Number: Q340A1108
Max Hot Junction Temperature: 1400 °F
Min Open Circuit: 26-32 mV
Resistance: 0.03
Temperature Rating Cold Junction: 780 °F
Warranty: 1 yr
Width: 2.40 in
Height: 4.00 in
Depth: 2.80 in
!
