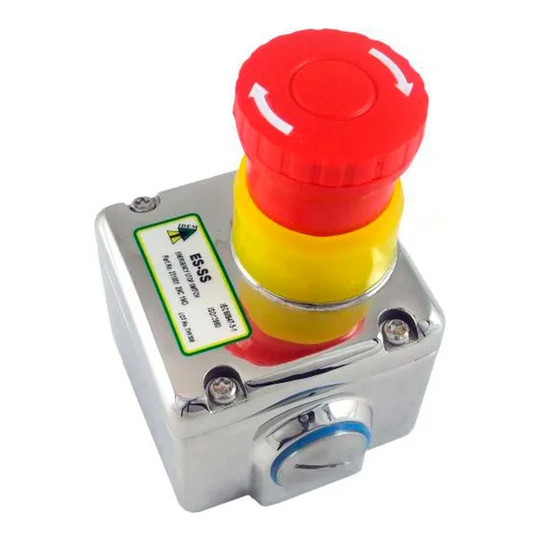

Stainless Steel Emergency Stop Switch, 3NC, 1/2 NPT

This emergency stop safety switch is designed for personnel responsible for machine and exposed conveyor safety. It provides a readily accessible stop control for emergency shutdown situations in industrial work areas.

The switch has a stainless steel body with a silver finish and measures 2.6 inches wide, 2.75 inches deep, and 2.16 inches high. It features three normally closed contacts and a 1/2 NPT connection. A lid safety trip mechanism opens the safety contacts when the lid is removed, and the three-pole contact block provides positively operated switch contacts.

Key Features:

• Three NC Contacts: Supports emergency-stop control circuits with three normally closed contact points.
• Lid Safety Trip: Opens the safety contacts if the lid is removed to help deter tampering.
• Stainless Steel Body: Provides a durable enclosure option for the switch assembly.
• 1/2 NPT Connection: Matches installations requiring a 1/2 NPT connection.
• Compact Size: Measures 2.6 inches wide by 2.75 inches deep by 2.16 inches high for space-conscious installations.

Choose this emergency stop switch for machine or exposed conveyor applications requiring three normally closed contacts, a 1/2 NPT connection, and a stainless steel enclosure.
