Save 10% On Your First Order! Coupon Code: NEWCUSTOMER10

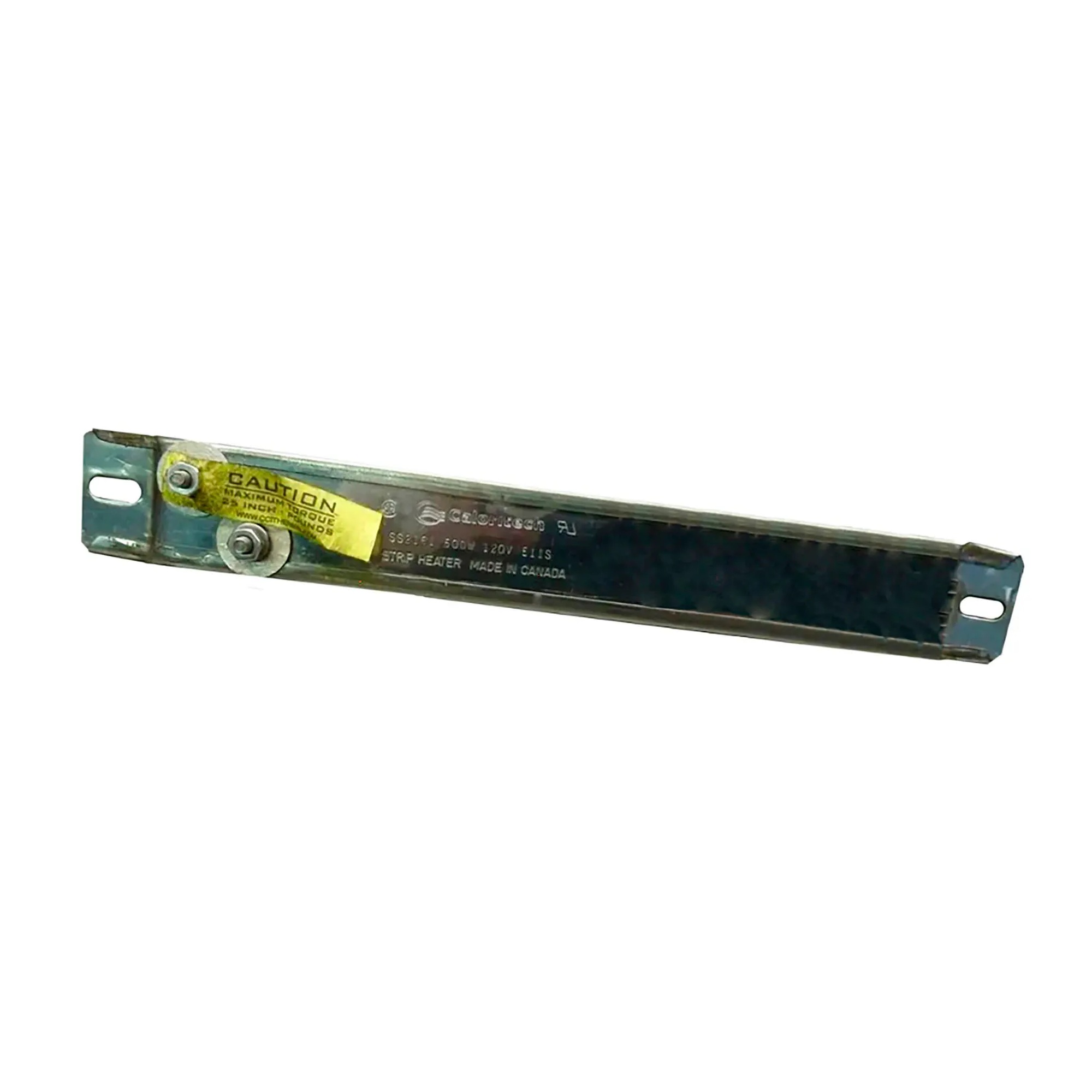

This component strip heater provides radiant heat for industrial users performing surface or process-air heating. It is suited for heating equipment such as platens, dies, molds, tanks, piping, drying cabinets, and ovens.

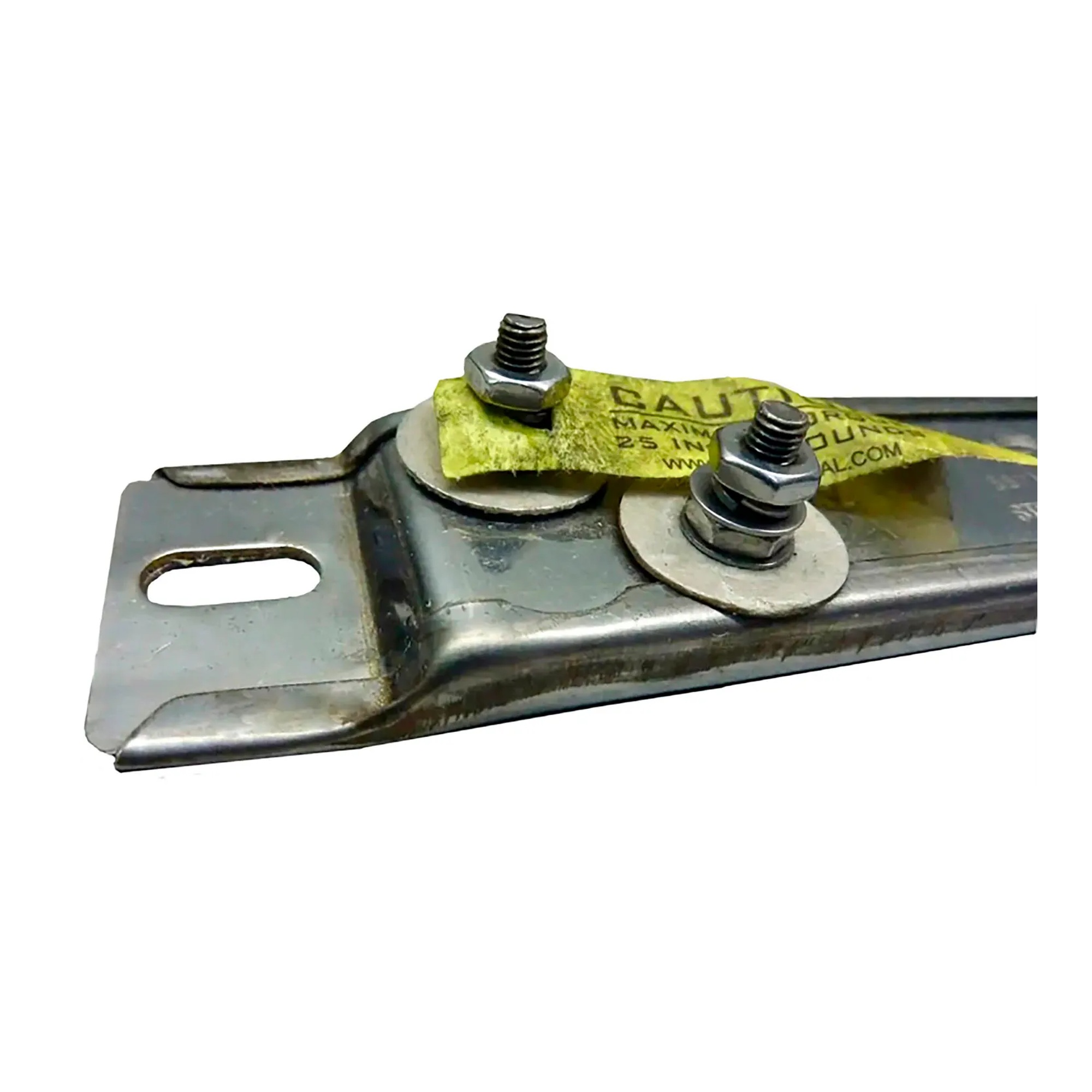

The heater operates at 120V and 300W and has a 6 in. length. Its assembly is enclosed in a stainless steel sheath compressed under high pressure for corrosion resistance. Two offset bolt-type terminals are located at one end, and mounting holes support secure installation. The heater can be controlled with a heating control panel, mechanical thermostat, or surface-mounted bi-metal thermostat.
Key Features:
Choose this 6 in. stainless steel strip heater for industrial surface or process-air heating setups that require end-mounted terminals and mounting-hole installation.
| Country of Origin: | CA |
| Material: | Stainless Steel |
| Product Depth: | 4" |
| Product Height: | 4" |
| Product Type: | Strip Heaters |
| Product Width: | 7" |
| Quantity Included: | 1 |
| Shipping Weight: | 4 lbs |
| Voltage: | 120 V |
| Manufacturer Part Number: | SS2011 |
| Length: | 6 in |
| Width: | 1-1/2 in |
| Screw Size: | 10 - 32 |
| Slotted Hole Length: | 5/8 in |
| Slotted Hole Width: | 9/32 in |
| Brand: | Caloritech |
| Manufacturers Part Number: | SS2011 |
| Max Exposure Temperature: | 1200 °F |
| Sheath Material: | Stainless Steel |
| Type: | Strip Heater |
| Watt Density: | 30.5 W |
| Wattage: | 300 W |
| Watts High: | 300 W |
| Warranty: | 1 |
| Certifications: | CSA, UL Safety |
| Width: | 4.00 in |
| Height: | 4.00 in |
| Depth: | 7.00 in |
No additional information available.
