This component strip heater provides radiant heat for industrial users who need to heat surfaces or process air. It is suited to installations involving platens, dies, molds, tanks, piping, drying equipment, ovens, and similar heating setups.

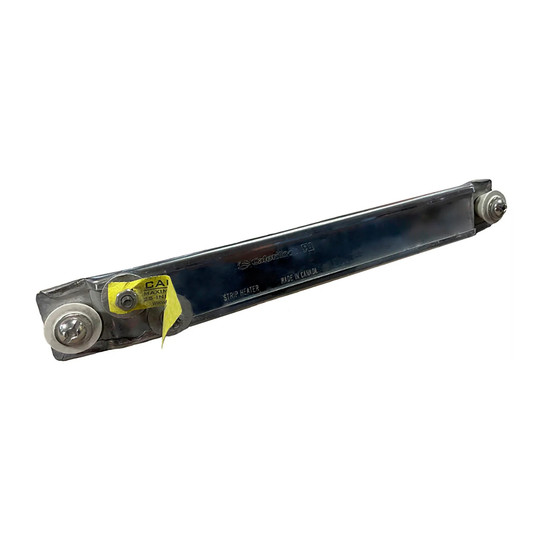

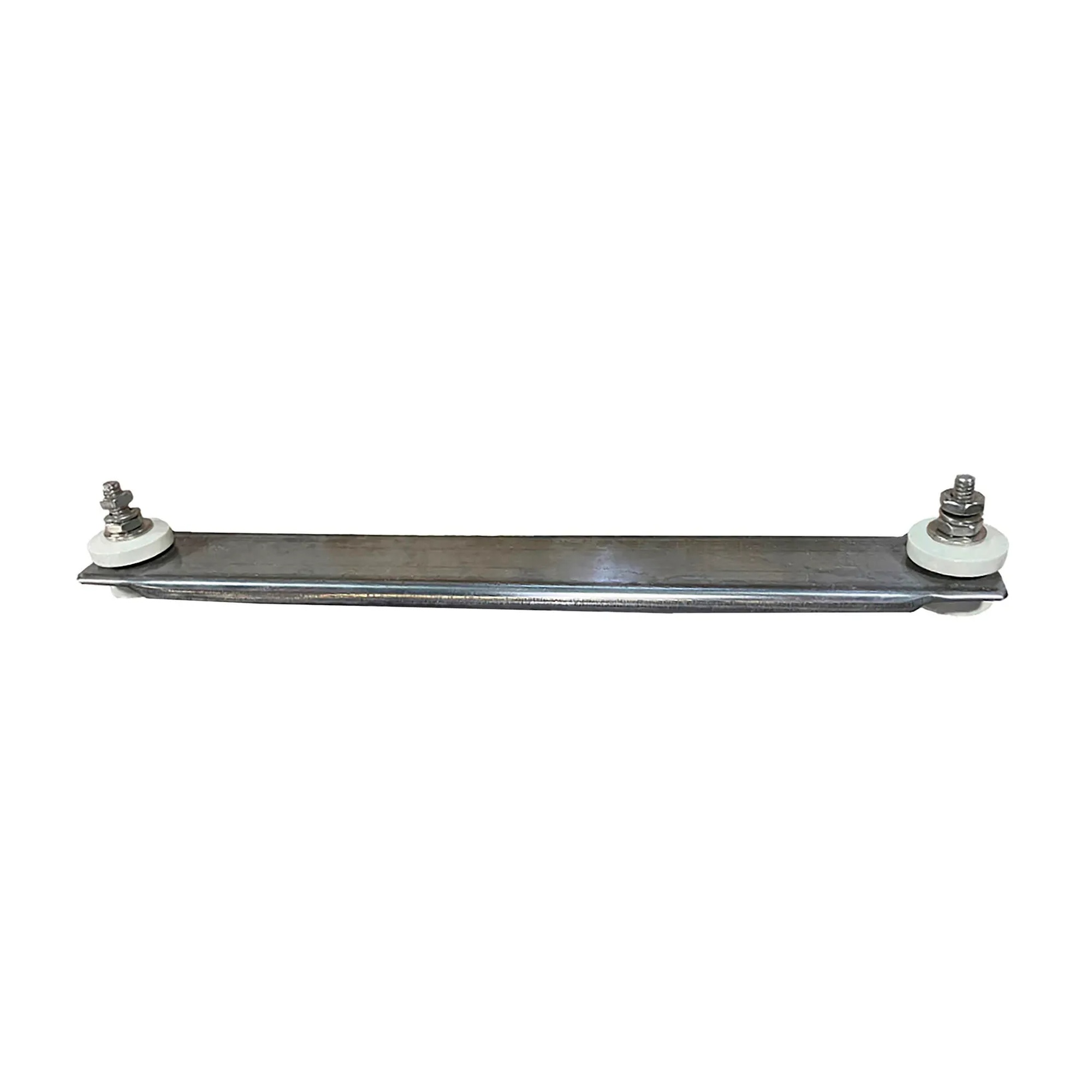

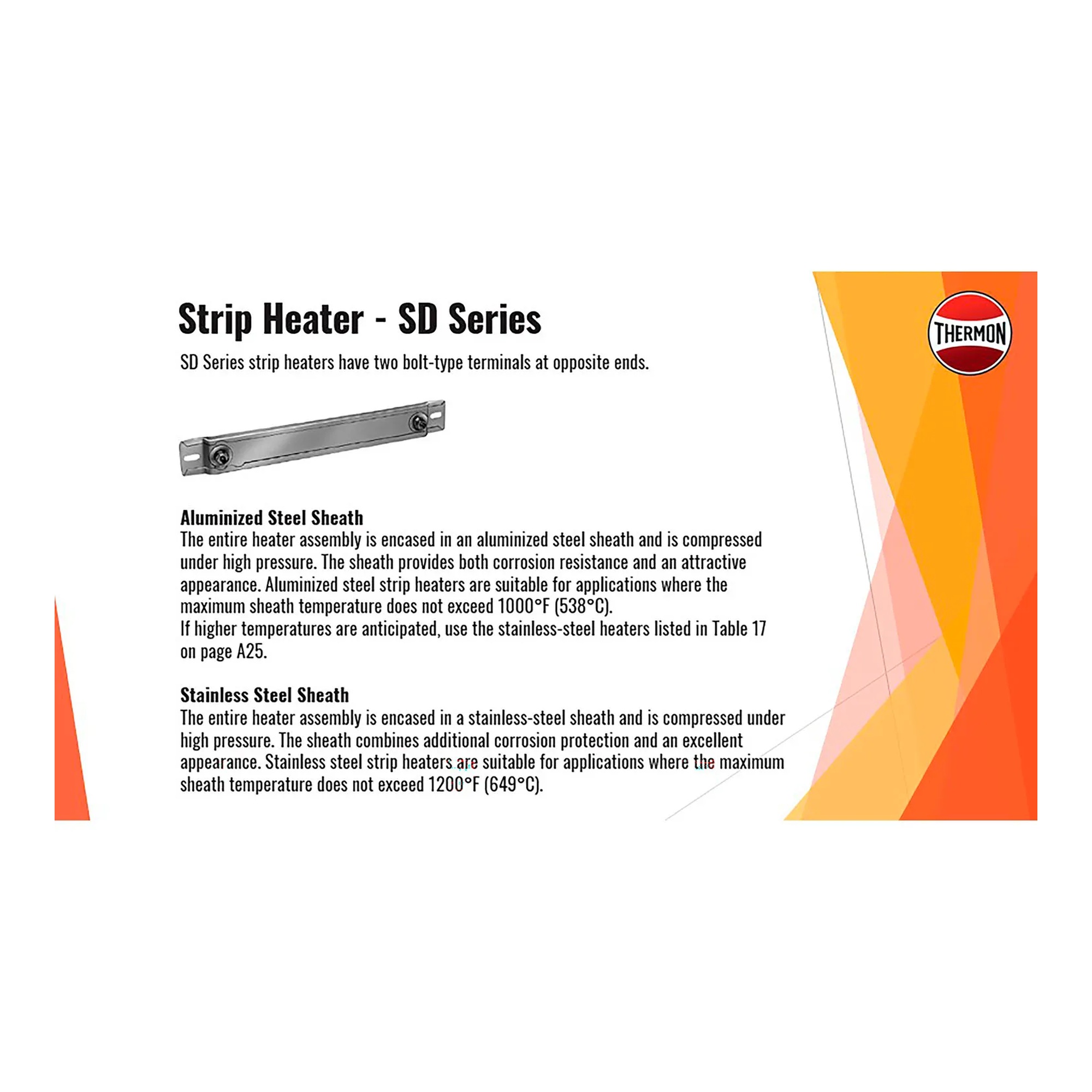

The heater operates on 120V and delivers 300W of heat in a 14 in. long strip format. Its heater assembly is enclosed in an aluminized steel sheath, and opposite-end terminals support electrical connection. Mounting holes are provided for securing the heater to a wall or housing. The aluminized steel sheath is intended for applications with maximum sheath temperatures up to 1000°F (538°C).
Key Features:
Choose this 120V component strip heater for industrial surface or process-air heating arrangements that need a 300W, 14 in. heater with mounting holes and opposite-end terminals.
| Country of Origin: | CA |
| Material: | Stainless Steel |
| Product Depth: | 4" |
| Product Height: | 4" |
| Product Type: | Strip Heaters |
| Product Width: | 13" |
| Quantity Included: | 1 |
| Shipping Weight: | 7 lbs |
| Voltage: | 120 V |
| Manufacturer Part Number: | SD1131 |
| Length: | 14 in |
| Width: | 1-1/2 in |
| Screw Size: | 10 - 32 |
| Slotted Hole Length: | 5/8 in |
| Slotted Hole Width: | 9/32 in |
| Brand: | Caloritech |
| Manufacturers Part Number: | SD1131 |
| Max Exposure Temperature: | 1000 °F |
| Sheath Material: | Aluminum Steel |
| Type: | Strip Heater |
| Watt Density: | 8 W |
| Wattage: | 300 W |
| Watts High: | 300 W |
| Warranty: | 1 |
| Certifications: | CSA, UL Safety |
| Width: | 4.00 in |
| Height: | 4.00 in |
| Depth: | 13.00 in |
