This component strip heater provides radiant heat for industrial users who need to heat surfaces or process air. It supports applications such as platens, dies, molds, tanks, piping, drying cabinets, ovens, and similar equipment.

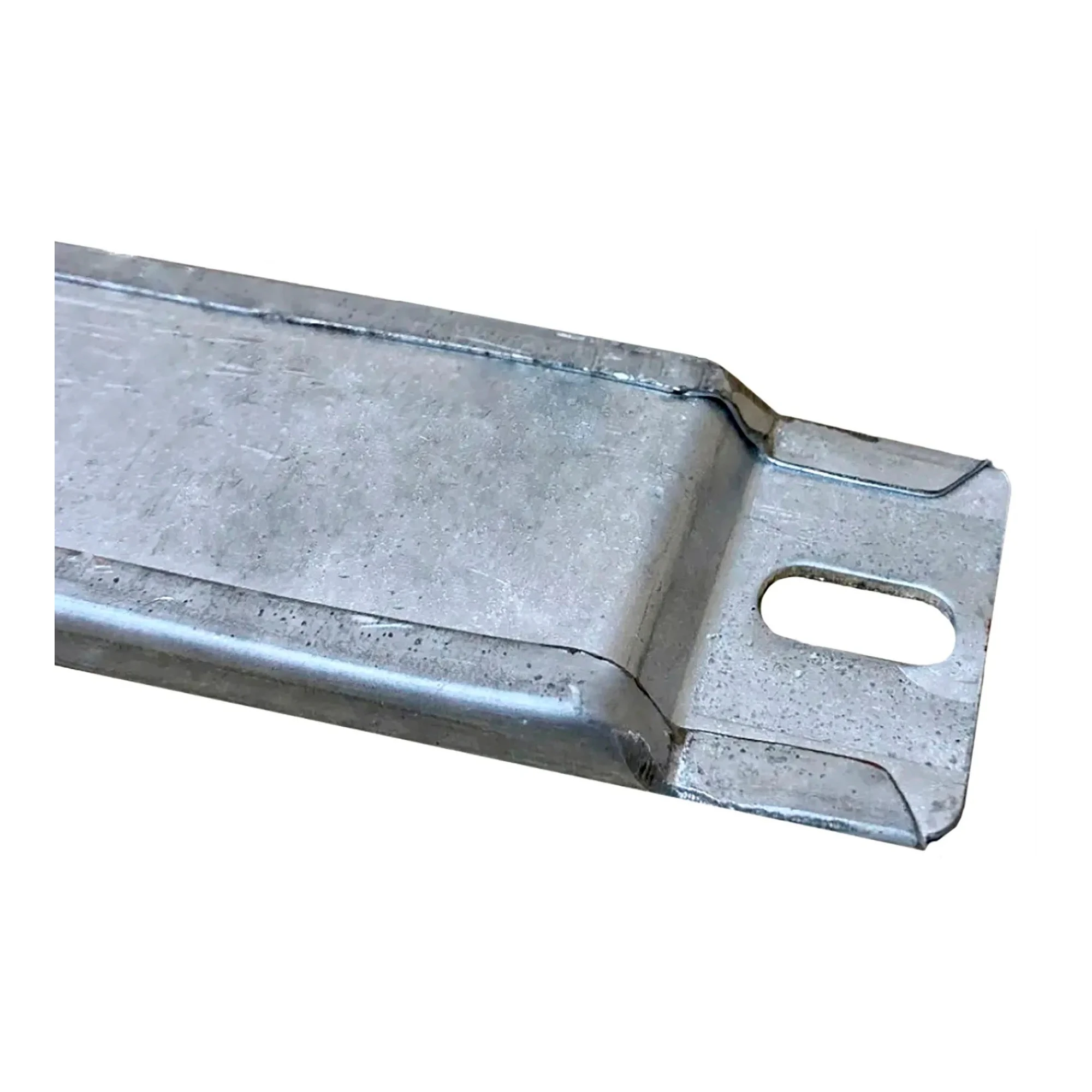

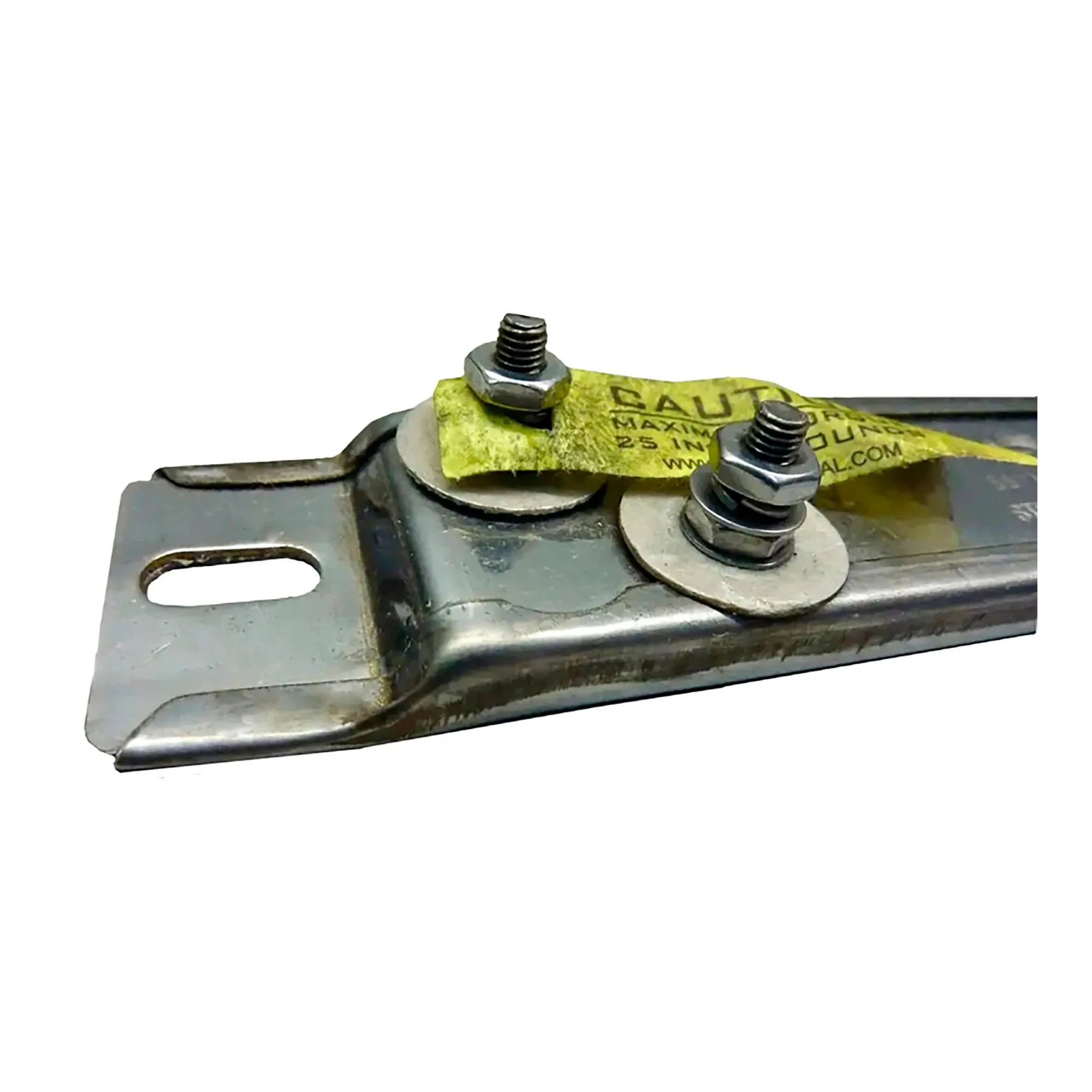

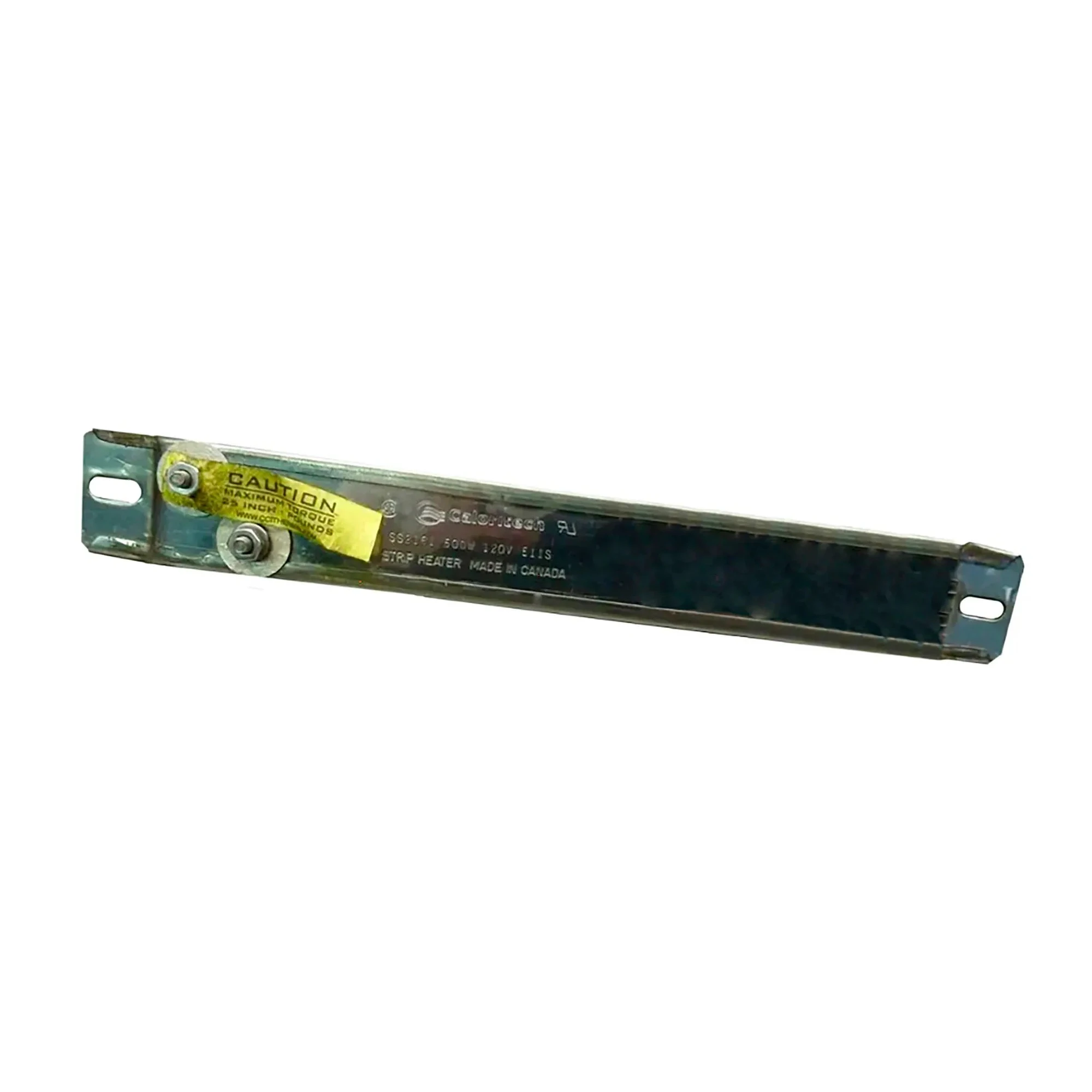

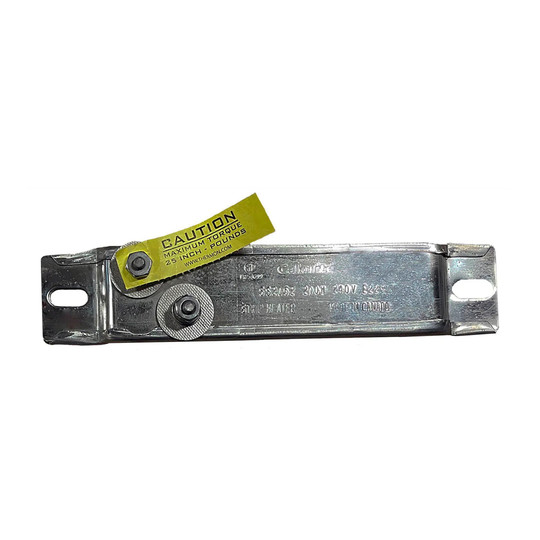

The 14-inch-long heater operates on 120V and delivers 300W. Its assembly is enclosed in a stainless steel sheath, with two offset bolt-type terminals located at one end. Mounting holes allow secure installation, and the heater can be controlled with a heating control panel, mechanical thermostat, or surface-mounted bi-metal thermostat.
Key Features:
Choose this 14-inch component strip heater for 120V industrial surface or process-air heating installations that require 300W output, one-end terminal connections, and mounting-hole installation.
| Country of Origin: | CA |
| Material: | Stainless Steel |
| Product Depth: | 4" |
| Product Height: | 4" |
| Product Type: | Strip Heaters |
| Product Width: | 14" |
| Quantity Included: | 1 |
| Shipping Weight: | 7 lbs |
| Voltage: | 120 V |
| Manufacturer Part Number: | SS1181 |
| Length: | 14 in |
| Width: | 1-1/2 in |
| Screw Size: | 10 - 32 |
| Slotted Hole Length: | 5/8 in |
| Slotted Hole Width: | 9/32 in |
| Brand: | Caloritech |
| Manufacturers Part Number: | SS1181 |
| Max Exposure Temperature: | 1000 °F |
| Sheath Material: | Aluminum Steel |
| Type: | Strip Heater |
| Watt Density: | 8 W |
| Wattage: | 300 W |
| Watts High: | 300 W |
| Warranty: | 1 |
| Certifications: | CSA, UL Safety |
| Width: | 4.00 in |
| Height: | 4.00 in |
| Depth: | 14.00 in |
