This replacement O-ring and filter kit is for pressure washer users maintaining couplers, spray guns, extension wands, hoses, and pump connections. It provides replacement sealing and screen-filter components to help restore worn parts and keep pressure washing equipment in service.

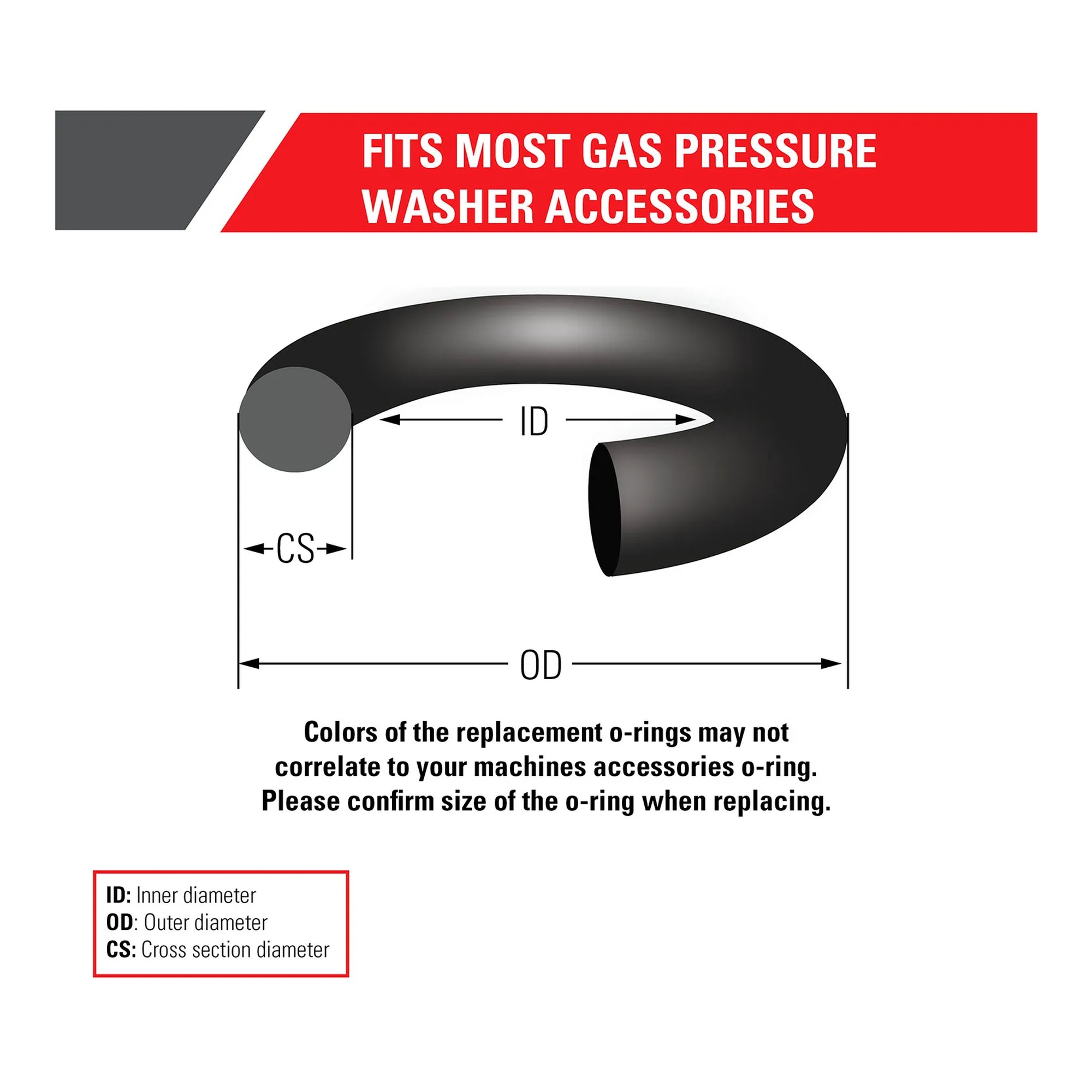

The kit includes two each of five O-ring sizes plus two black screen filters. O-ring sizes are green: 14.0 mm OD, 8.6 mm ID, 2.7 mm CS; yellow: 14.0 mm OD, 9.8 mm ID, 2.1 mm CS; red: 15.6 mm OD, 10.0 mm ID, 2.8 mm CS; blue: 18.0 mm OD, 12.7 mm ID, 2.65 mm CS; and black: 15.0 mm OD, 9.0 mm ID, 3.0 mm CS. The black filters measure 25.0 mm OD, 15.5 mm ID, and 3.5 mm CS. Components are designed for parts and accessories on most gas and electric pressure washers; confirm O-ring size before replacement.
Key Features:
- Replacement component assortment: Provides a selection of O-rings and screen filters for routine pressure washer connection maintenance.
- Two of each included size: Supplies matching replacements for the listed O-ring and filter sizes.
- Broad pressure washer compatibility: Designed for accessories and parts used with most gas and electric pressure washers.
- Color-coded O-rings: Helps distinguish included O-ring sizes, while size confirmation supports proper replacement.
Use this kit when replacing worn O-rings or filters on compatible pressure washer connections and accessories. Check the required dimensions before selecting a component.
| Color/Finish: |
Multi-Color |
| Country of Origin: |
CN |
| Product Depth: |
6 |
| Product Height: |
6 |
| Product Type: |
Hoses, Wands, & Reels |
| Product Width: |
8.25 |
| Quantity Included: |
1 |
| Manufacturer Part Number: |
80151 |
| Color: |
Multi-Color |
| Length: |
1-1/2 in |
| Weight: |
0.1 lbs |
| Connection Size: |
M22 in |
| Brand Name: |
Simpson |
| Manufacturers Part Number: |
80151 |
| Max PSI: |
4000 psi |
| Max Temperature: |
140 °F |
| Type: |
Filter Kit |
| Warranty: |
90 Days |
| Shipping Method: |
Parcel |
| Width: |
6.00
in
|
| Height: |
6.00
in
|
| Depth: |
8.25
in
|
